INTRODUCTION

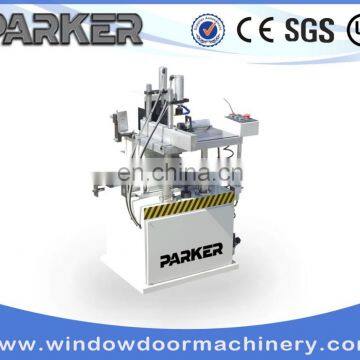

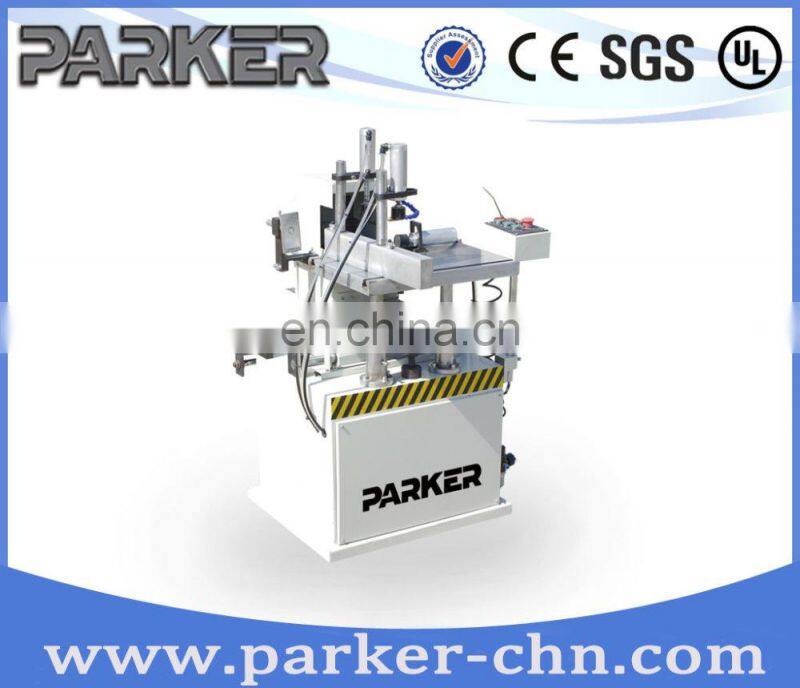

LDX-200 automatic aluminum profile end milling machine is mainly used for aluminum profile ending milling. This automatic end milling machine is also applied for processing step surface and end slot. The processing angle is adjustable ranging from 30° to 90°. With adjustable worktable, it is convenient for tool setting. Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the aluminum milling machine's working accuracy. Equipped with bidirectional valve, Parker automatic end milling machine can mill profiles with high efficiency.
FEATURES
1. Super precision main shaft ensures accurate and steady processing of this aluminum milling machine.
2. Tool feeding adopts linear bearing kinematic pair, which ensures steady process of automatic end milling machines.
3. The end and notch can be vertical. The work table can be adjusted upper and lower for different kinds of profiles.
4. This aluminum milling machine adopts bidirectional valve to control the clamp and feeding so as to reduce failure segment. There are different strokes for different profiles to improve work efficiency.
TECHNIQUE PARAMETER
1.Model: LDX-200 Automatic End Milling Machine for Aluminum Profile
2.Harshness :Ra12.5 µ m
3.Power Supply: 380V 50 Hz (Three Phase, Four Wire)
4.Motor Power :1.5 kW
5.Rotary Speed: 2800 rpm
6.Air Pressure: 0.5 to 0.8 Mpa
7.Max. Diameter of Milling Cutter: 200 mm
8.Max. Milling Range: 90 × 45 × 200 mm
9.Table Up-Down Travel: 0 to 80 mm
10.Overall Dimension: 700 mm × 900 mm × 1350 mm
11.Weight : 200 kg
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Parker service
What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
