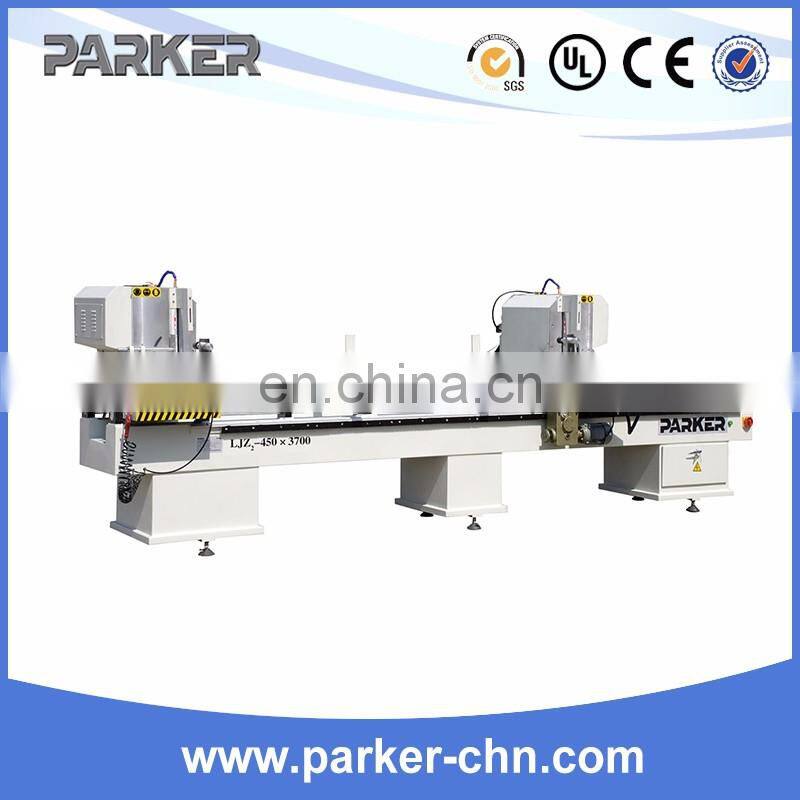

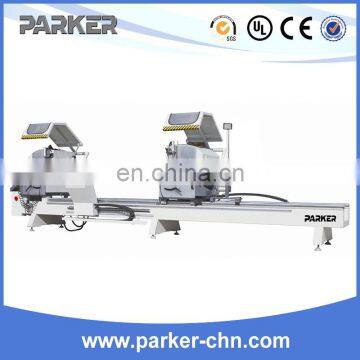

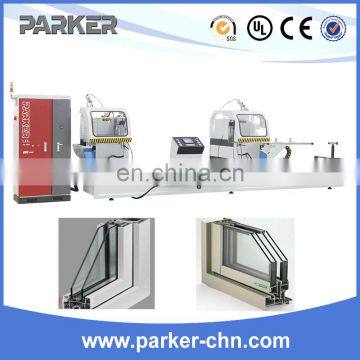

hot sale double head mitre saw

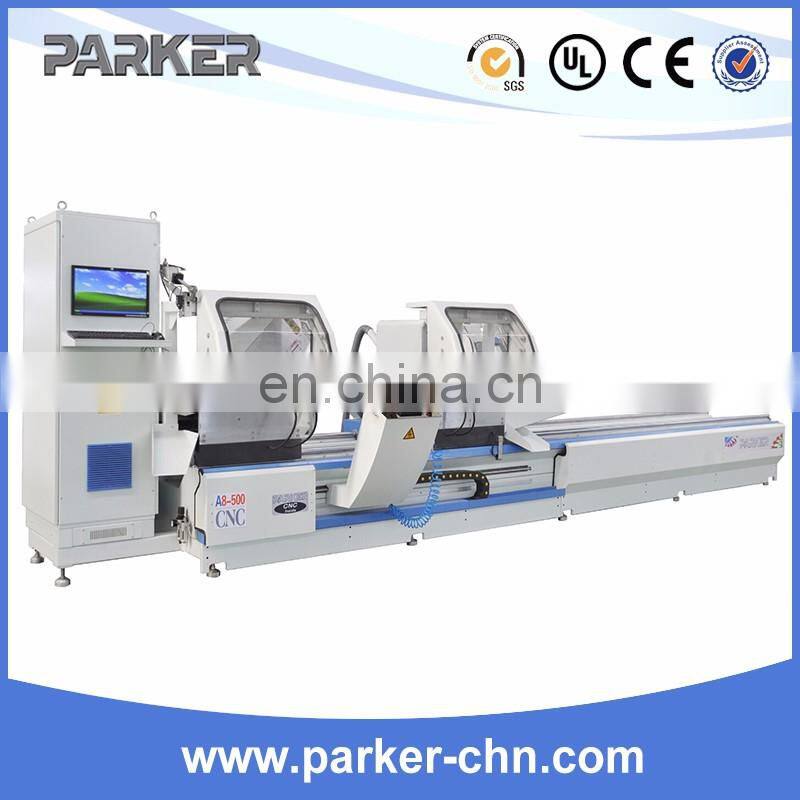

CNC Three Axis any Angle Cutting Saw,hot sale double head mitre saw
Model: A8-500
CONTROL CHARACTERISTICS
ü Controlling system:Schneider
ü Saw blade: WEMARO
ü Solenoid valve:AIRTAC
ü Motor: soga,
ü Electrical button and switcher: Schneider
ü AC contactor and Circuit Breaker: Schneider
ü Linear Bearing system: TAIJING
ü HP industrial computer
ü Industrial Printer
ü USB port
ü RJ45 net card
ü Execution of single head cutting
ü Totally intelligent Limitless cutting of any length within range, have memorization of more than 1000 profile compensations with automatic calculation of the size for angel cutting if do not turn off the power of HP industrial computer, set any lines that programmed in computer.
MACHINE CHARACTERISTICS
ü Measurement of moving cutting head position via direct measuring system with magnetic tape
ü 2 carbide-tipped blades, brand WEMARO
ü Full guard for cutting zone, pneumatically operated
ü Pair of pneumatic horizontal and vertical clamps with “low pressure” device
ü Profile support roller conveyor
ü Lubrication system, spray-mist lubrication with oil and water emulsion or quantity oil lubrication
ü Cutting angles with blade Ø500mmfrom 45° ~ 157.5°,any angle
ü Manual profile support
ü Pair of standard counter blocks
ü Metric scale
ü Cutting length 5 meter
ü Blade motor power rating 2.2 KW
ü The machine has label printing function (optional)
ü The machine is the most advanced double-head cutting saw.
Cutting angle chart
Parameter:
üVoltage: |
380V 50HZ |
üPower: |
5.9KW |
üAir pressure: |
0.5-0.8MPa |
üComputer display |
USA HP Industrial special computer |
üBlade specification: |
500X30X4.4,T=120 (standard size) WEMARO |
üCutter moving speed: |
0-2m/min |
üCutting length: |
Max5000mm Min480 at 90° Max5000mm Min(double height of profile) at 45° |
üCutting width: |
120mm |
üCutting height: |
230mm |
üCutting angle: |
45° ~ 157.5° , any angle |
üRepeat locating length error: |
± 0.2mm |
üSurface plainness: |
± 4μm |
üOverall dimension: |
7000mmX1700mmX2000mm |
1) Engineers available to go to abroad ?
Yes, Parker engineers have lots of experiences to abroad and goes customers Technical service including installation and labor training .
2) Warranty since shipping date?
No, Warranty is one year, since the customer received the machines.
3)What's the quality of Parker insulating glass machine and related machine, likePVC window door machine, PVC window door welding machine,PVC window door welder machine CNC glass cutting machine and machining centers?
Parker achieved 20 years experience in the machinery high technology field, not only proviod the reliable machines,but also successed in the new technology and patents. For the recently machines adopt Schneider,Panasonic,Yaskawa,Simens and so on, these reliable Partners also make Parker successful in this field.Now Parker exported over 70 countries all over the world.
We are building the future,always beside you!
