Vertical Flat Press Insulating Glass Making Machine/double Glass Making Machine

Vertical Flat Press Insulating Glass Making Machine/double Glass Making Machine photo-1
Vertical Flat Press Insulating Glass Making Machine/double Glass Making Machine photo-2

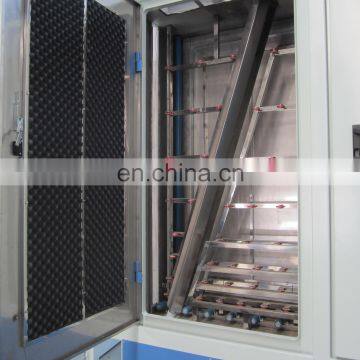

Vertical Flat Press Insulating Glass Making Machine/double Glass Making Machine photo-3

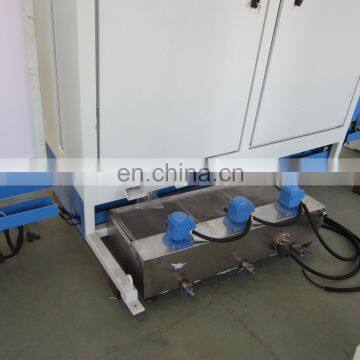

Vertical Flat Press Insulating Glass Making Machine/double Glass Making Machine photo-4
Vertical Flat Press Insulating Glass Making Machine/double Glass Making Machine photo-5
Vertical Flat Press Insulating Glass Making Machine/double Glass Making Machine photo-6
US$ 38,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
PARKER
Place of Origin:
Shandong, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name PARKER
Place of Origin Shandong, China
Certification CE
Warranty 1 Year, 1 year
Weight 6500Kg
Dimension(L*W*H) 26500mm *2800mm*3500mm
Production Capacity 800pieces/day
Condition New
Voltage 380V 50HZ
Power(W) 32KW
Machine Type Insulating Glass Production Line

vertical flat press insulating glass making machine/double glass making machine





Product Description

 vertical flat press insulating glass making machine/double glass making machine



Model:IGV8-S



Feature:

  • ØThe whole line adopts Germany Technical. This line has passed CE.
  • ØThis machine has self-diagnose system, easily check the error.
  • ØIt can identify the Low-E glass and coating glass automatically. So it can stop the first hard brush automatically protecting the glass from scratching.
  • ØThe PLC and proximity switch adopt Schneider imported for France.
  • ØIt has high precision and works steadily. Because we adopt the screw and flat press.
  • ØServo driver and servo motor imported from France can control glass-combining precisely.
  • ØThis machine adopts inverter control transmission motor. So it can easily slow down and accelerate.
  • ØThe cleaning part adopts Germany Industrial Plastic Bearing.
  • ØIt can produce big and small scale, tri-glass insulating glass(Optional)
  • ØCan realize outer-assembling



Parameter:

  • ØVoltage:

380V   50HZ

  • ØPower:

32KW

  • ØAir pressure:

0.5-0.8Mpa

  • ØAir consumption:

200L/min

  • ØCleaning Speed:

0-12m/min

  • ØMax. convey speed:

40m/min

  • ØMax. process dimension:

1800mm x 2500mm

  • ØMin. process dimension:

250mm x 380mm

  • ØGlass type:

Ordinary-coated

  • ØMax. thickness of insulating glass:

12-60mm

  • ØGlass cleaning thickness:

3-12mm

  • ØOperating height:

485±50mm

  • ØDepth of glue coating:

0-20mm

  • ØWorking direction

Left-right or Right-left

  • ØStepped glass size

Vertical: 0-50mm, horizontal: 0-250mm

  • ØWorking type

Lead screw

  • ØOverall dimension:

26500mm x 2800mm x 3500mm

  • ØWeight:

6500Kg

 vertical flat press insulating glass making machine/double glass making machinevertical flat press insulating glass making machine/double glass making machinevertical flat press insulating glass making machine/double glass making machinevertical flat press insulating glass making machine/double glass making machinevertical flat press insulating glass making machine/double glass making machinevertical flat press insulating glass making machine/double glass making machine
