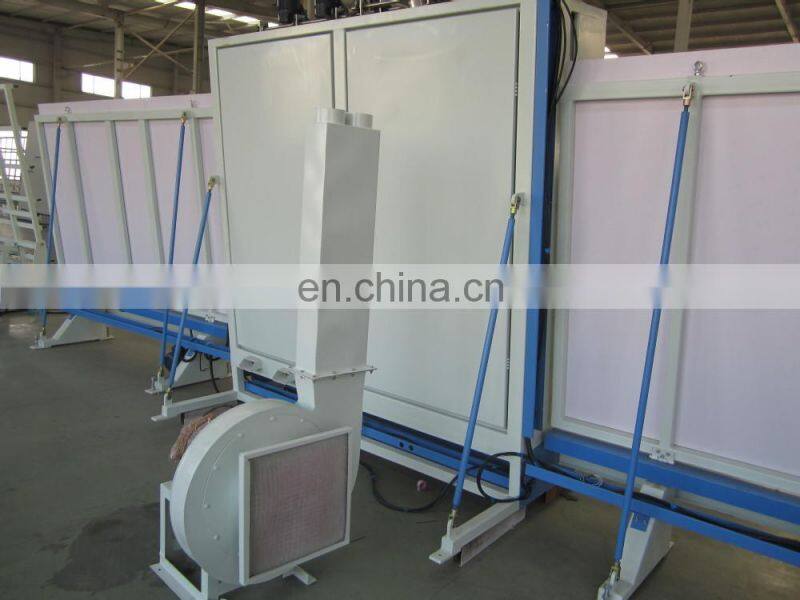

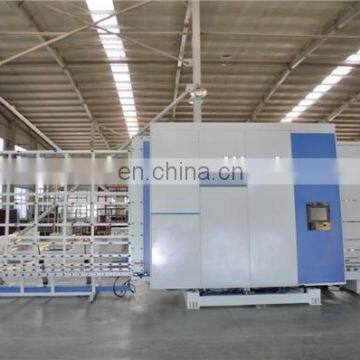

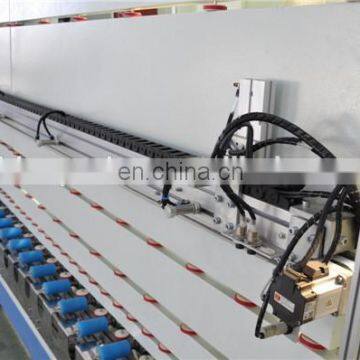

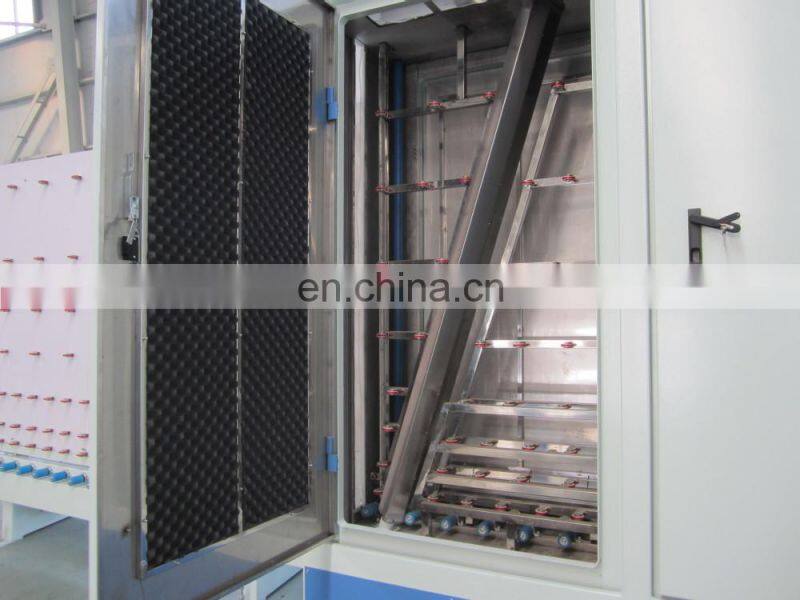

Insulating Glass Making Machine from Parker Machinery
- 1000 per Month
- T/T Credit Card
- Vacuum Glass Lifter Glass Lifting Equipment
- Automatic CNC Glass Cutting Table For Float Glass
- Manual Glass Cutting Machine Air Glass Cutting Table
- Parker Hot Sale CNC Automatic Double Glass Production Line
- Two Component Glue Coating Insulating Glass Sealing Machine
- Vertical Glass Washing Machine Double Glass Glazing Machine With Drying
Product Details
Brand Name: | PARKER | Place of Origin: | Shandong, China | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year | Weight: | 5500Kg |
Dimension(L*W*H): | 22800mm * 2800mm * 3400mm | Production Capacity: | 800pieces/day | Condition: | New |
Voltage: | 380V 50HZ | Power(W): | 31KW | Machine Type: | Insulating Glass Production Line |
Product Description
Insulating Glass and Double Glass Triple Glass Making Machine And Double Glass Glazing Machine
Model: IGV25-S
Features:
- ØThe electric component, sensor and PLC auto-controlling is imported low power supply;
- ØThe appliance is efficient for the operator can input the order continuously;
- ØTouching screen is imported originally. It is easy to operate. The process and fault can be showed automatically;
- ØIt is controlled by punctuated system which is energy-saving. The inspecting and combining speed up when other non operating parts are intelligent-asleep;
- ØIt can produce big and small scale insulating glass(Optional)

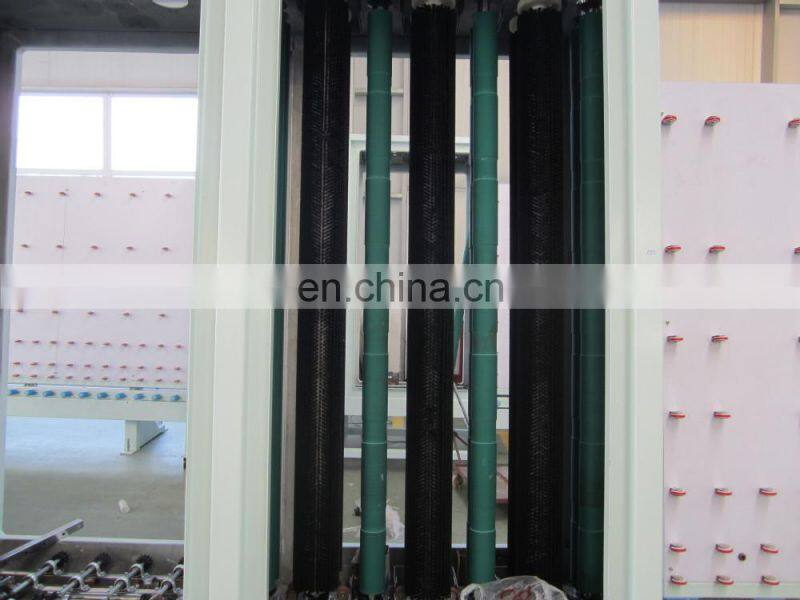

- ØCleaning Part is consisted of stainless steels. Three pairs of brush can work separately. It can recognize the LOW-E glass automatically. So it can protect the LOW-E glass from scratching.
- ØThis machine adopts inverter control transmission motor. So it can easily slow down and accelerate.
- ØThis machine has the self- diagnosis function, which is easy for check the error.
Parameter:
| 380V 50HZ |
| 31KW |
| 0.5-0.8Mpa |
| 160L/min |
| 0-12m/min |
| 40m/min |
| 2500mm x 3450mm 2500×5000mm (for second time pressing) |
| 250mm x 480mm |
| ordinary-coated |
| 12-60mm |
| 3-12mm |
| 485±50mm |
| 6° |
| 0-20mm |
| Left-right or Right-left |
| Vertical: 0-40mm, horizontal: 0-230mm |
| Lead screw |
| 22800mm * 2800mm * 3400mm |
| 5500Kg |
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
