China Factory New Condition Float Glass Automatic Loading And Cutting Line
- Qingdao
- T/T Credit Card
You May Like
-
High Speed Double Arm Loading CNC Glass Cutting Machine Line
-
Double Glazing Aluminum Spacer Bar CNC Bending Machine
-
Parker Insulating Glass Lifter Vacuum Glass Lifting Machine
-
Full Automatic CNC Glass Cutting Machine For Float Glass Making
-
Double Glazing Machine Argon Gas Filling Machine
-
Curtain Wall Double Glass Processing Machine Float Glass Washing Machine
Product Details
| Brand Name | PARKER | Place of Origin | Shandong, China | |
| Certification | CE | |||
| Warranty | 1 Year | Weight | 4800KGS | |
| Dimension(L*W*H) | 15900*2680*2590 | Production Capacity | 100% | |
| Condition | New | Voltage | 380V 50HZ | |
| Power(W) | 9kw | Machine Type | Glass Cutting Machine |
Product Description

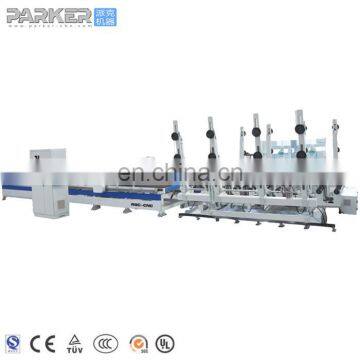

Float Glass Production Line Optical Glass Cutting Machine
Features:
◆ Three sections: double turning arms multi-position glass loading seciton, automatic cutting section and flotation severing section.
◆ Adopt OPTIMA software, ADVANTECH industrial personal computer and OMRON servo motor.
◆ It's widely used for architectural glass, furniture glass, auto glass, solar glass and so on.
◆ Glass orientation: photoelectronic scanning orientation and mechanism orientation.
◆ Unique shape of glass can be scanned by photoelectronic scanning function and saved in CAD format.
◆ It's convenient to draw and operate with 300 kinds of picture templates.
◆ Cutting operation: use air pressure and the spring SMC precision digital module. The cutter head rotate 360º, available for any shape cutting.
◆ Conveying device: synchronous belt transmission automatically.

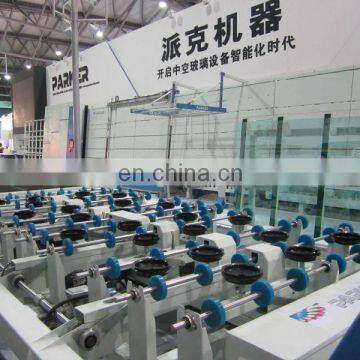

Glass Loading
This automatic glass cutting production line is equipped with double mechanical movement bridge system that can be automatically driven by motor.
Photoelectric Scanning Position
CNC glass cutting line provides photoelectric scanning positioning and mechanism glass positioning modes. Unique shape of glass can be scanned by photoelectric scanning function and saved in CAD format..

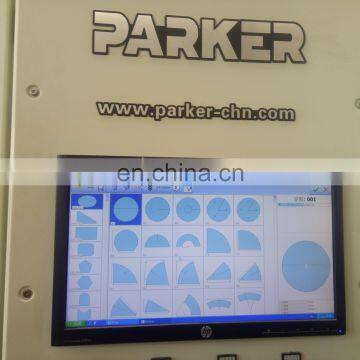

Automatic CAD designed graphs and figures
Automatic CAD designed graphs and figures help the CNC glass cutting line to realize automatic cutting with all the cutting data fully computer controlled. The operator can edit the glass size for cutting into the computer. The computer can optimize the cutting size, give out the data for processing and drive the machine to cut glass sheet automatically.
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement

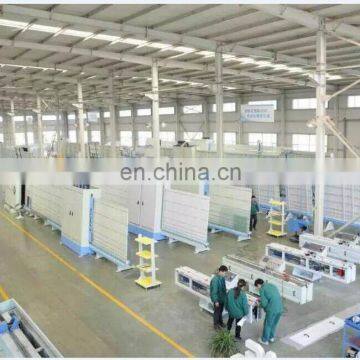

Parker machinery was founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment.With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China.The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery.With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc.We have a perfect sales network and complete service system in China.We are also taking a leading role in setting branch companies abroad.
Parker produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.
