CNC Float glass cutting table machine
- 205 Set / Sets per Month
- Qingdao
- T/T Credit Card
- insulating glass fabrication machine/double and triple glass making machine/IG Machine
- insulating glass production line insulated double glass equipment
- CNC double glass machine CE Insulating Glass Production Line
- CNC Glass Cutting Machine /Doulble glazing glass Production Line
- insulating glass machine production line made in shandong
- thermo plastic spacer double glass machine
Product Details
Brand Name: | PARKER | Place of Origin: | Shandong, China | Model Number: | RGC-CNC |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | One Year |
Weight: | 4000kg | Dimension(L*W*H): | 15900*2680*2590 | Production Capacity: | 15-18 Loads/h |
Condition: | New | Voltage: | 380V 50HZ | Power(W): | 10kw |
Machine Type: | Glass Cutting Machine |
Product Description
Float glass cutting table 4mm-25mm
Model: RGC-CNC
Features:

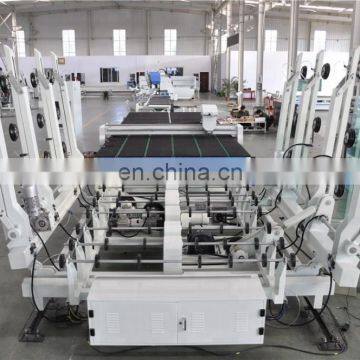

- ØThree sections: double turning arms multi-position glass loading seciton, automatic cutting section and flotation severing section.
- ØAdopt OPTIMA software, ADVANTECH industrial personal computer and OMRON servo motor.
- ØIt’s widely used for architectural glass, furniture glass, auto glass, solar glass and so on.
- ØGlass orientation: photoelectronic scanning orientation and mechanism orientation.
- ØUnique shape of glass can be scanned by photoelectronic scanning function and saved in CAD format.
- ØIt’s convenient to draw and operate with 300 kinds of picture templates.
- ØCutting operation: use air pressure and the spring SMC precision digital module. The cutter head rotate 360º, available for any shape cutting.
- ØConveying device: synchronous belt transmission automatically.
Parameters:
| CNC glass cutting produce line |
| RGC-CNC |
| 380V/50HZ/15-20KW |
Glass loading section | |
| 380V/50HZ/9KW |
| 2440x3660mm |
| 1500x1500mm |
| 2-19mm |
| 900Kg |
| 0.5-0.8Mpa |
Glass cutting section | |
| 380V/50HZ/5KW |
| 0.8Mpa |
| 3660x2500mm |
| 0-150m/min |
| 160m/min |
| 2-25mm |
| ±0.20mm |
| ±0.15mm |
Electrical:
Rock and Opinion rail rack system:YYC
Servo Motor: OMRON
Software : OPTIMA
Driving belt: Martexwell
Electric parts: Schneider.
