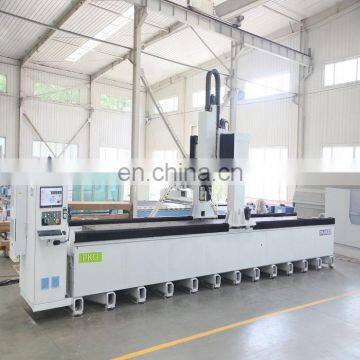

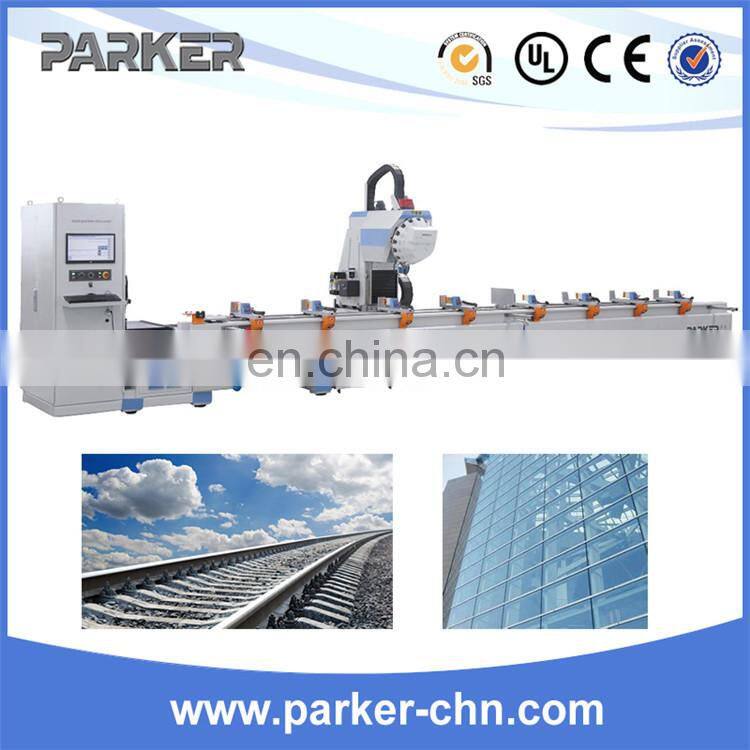

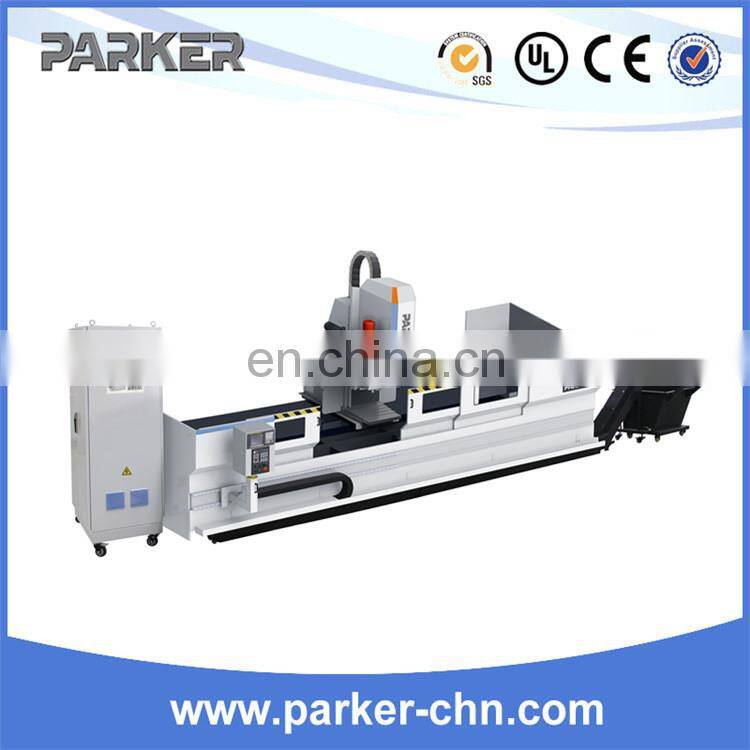

Help CenterPARKER 5 Axis Aluminum CNC Drilling Milling Tapping And Cutting Machine
Related Products
-
DMCC3H-1200 Aluminium Profile CNC Drilling & Milling MachineUS$ 12,000 - 12,000MOQ: 1 Unit -
Double Head 3-Axis High Speed Heavy Duty Machining CenterUS$ 105,000 - 108,000MOQ: 1 Unit
-
DMCC3 High-speed Drilling-milling 3 Axis Processing Center for Curtain WallsUS$ 59,000 - 63,000MOQ: 1 Unit
-
Aluminum Profile Double Head Three Axis Machining Center With Cnc ControlUS$ 110,000 - 111,000MOQ: 1 Set
-
Aluminum Profile Double Head Three Axis Cnc Machining Center in Very Low PriceUS$ 110,000 - 110,000MOQ: 1

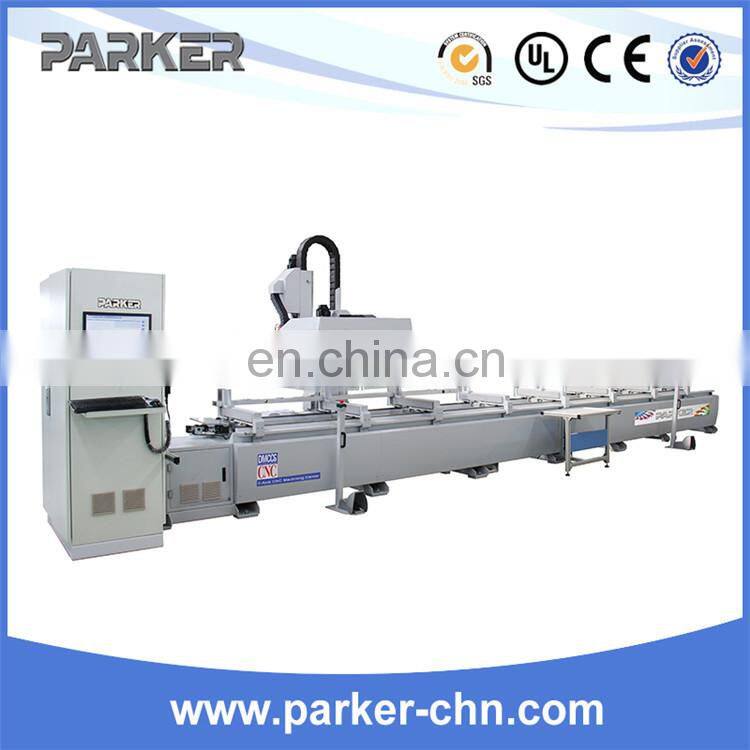

5 Axis Vertical CNC Machining Center From Chinese PARKER
PKG
Relevant Product
Features

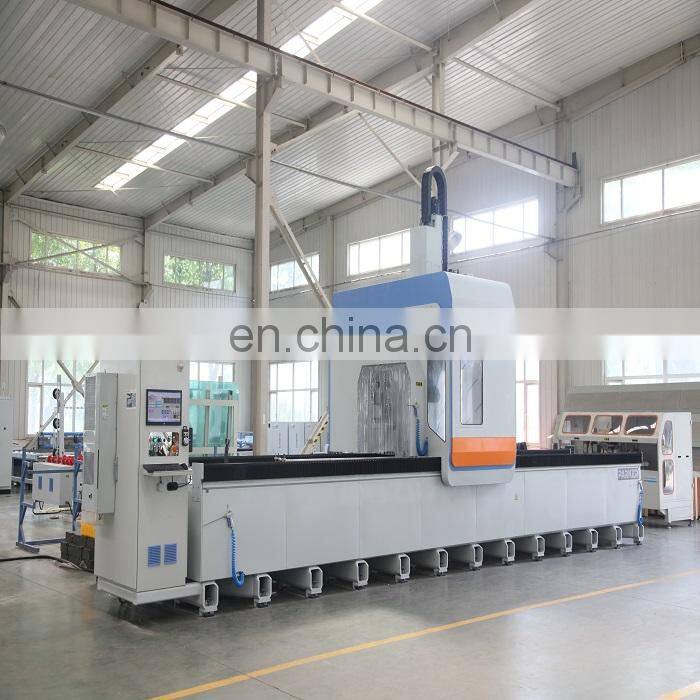

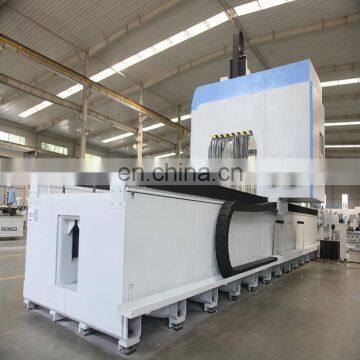

Using gantry frame structure, running more smoothly, improve the rigidity of the machine tool.
Suitable for all kinds of aluminum, copper, PVC, industrial profiles and other complex parts processing. Can achieve a workpiece clamping automatically completed milling, drilling, tapping and other multi-process processing.
Imported well-known brands, easy to operate high-end CNC control system from Italy.

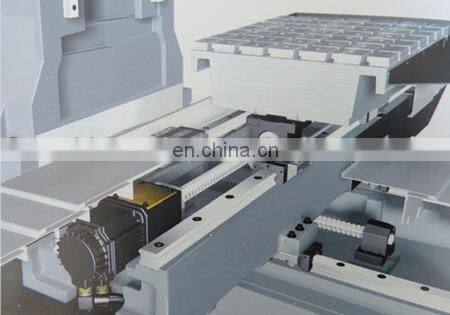

The use of high-quality imported servo motor, ball screw, linear guide and other bearings and other institutions to ensure that the equipment has a high processing accuracy. High stability, reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.

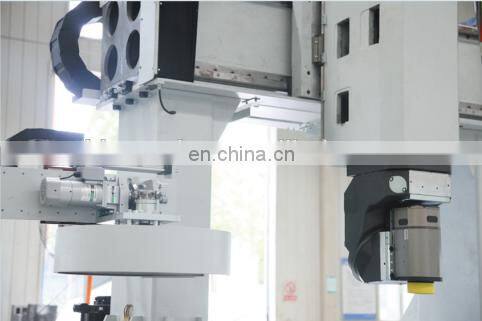

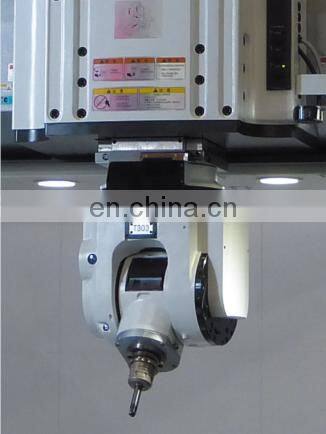

The machine adopts the imported five-axis milling head to finish the processing at any angle on the other side of the bottom surface. Optional vertical disc 8-bit magazine.
The use of quantitative timing of the central centralized automatic feed lubrication to ensure the stability of the machine accuracy.
Use pneumatic clamping table to improve loading and unloading speed. Optional T-type table.
The use of imported Renishaw interferometer detection, compensation for the accuracy of the machine.
Use safety protection to ensure safety.
Parameter
| X-axis travel distance | 7000mm(can be customized) |
| Y-axis travel distance | 1000mm |
| Z-axis travel distance | 500mm |
| System | Italian OSAI |
| Spindle Speed | 18000r/min |
| Spindle Brand | Italian Hiteco |
| Measure | 15500mmx3000mm |
| Spindle power | 7.5kw |
| Tool Magazine | 8 |
| Weight | 25 ton |
Detail
|

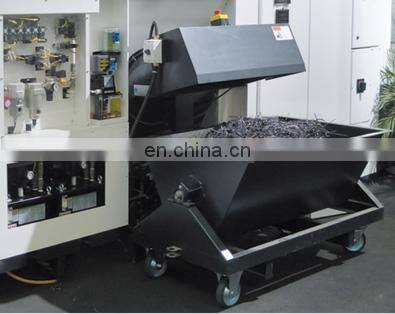

Automatic Chain Type Chip Conveyor with Transport-Cart |
|
T-Slot Working Table |
|
Tool Magazine with 16/20/24 Tools(Standard) |
|
Italian HSD Spindle(Heavy Duty/ 360° Any Angle Rotary) |
