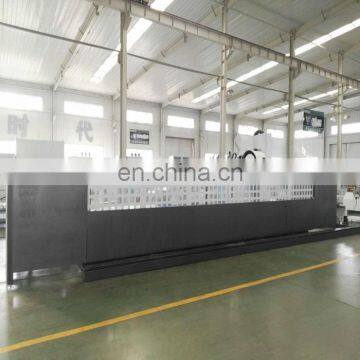

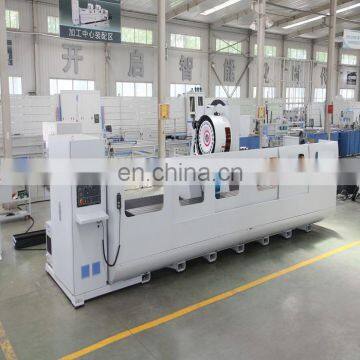

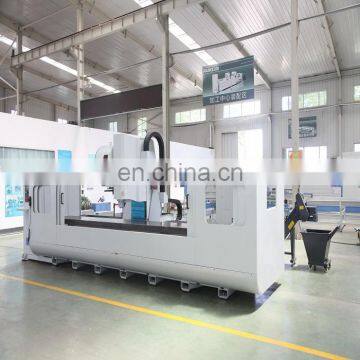

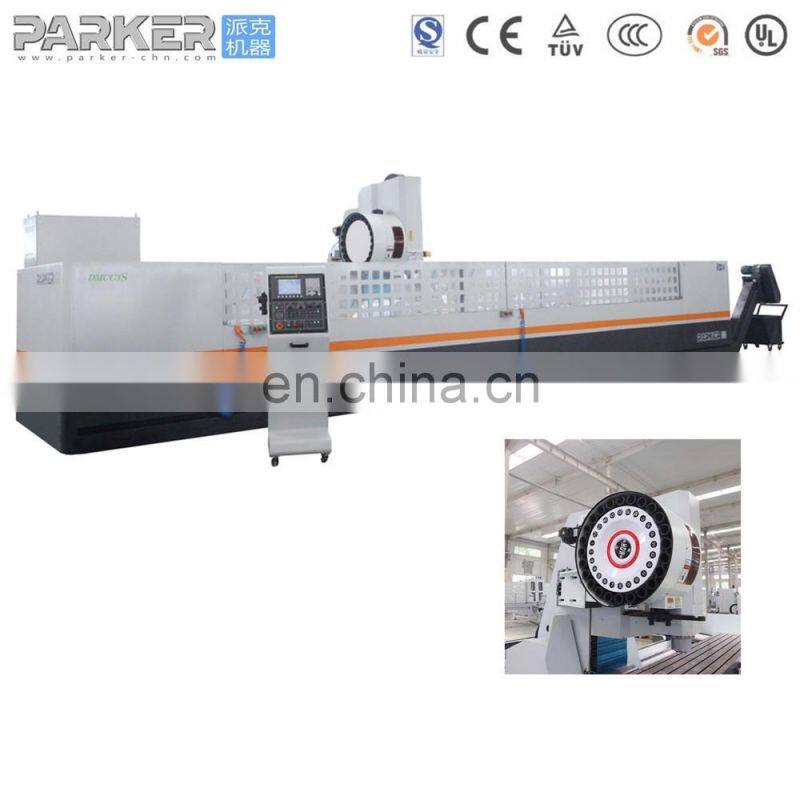

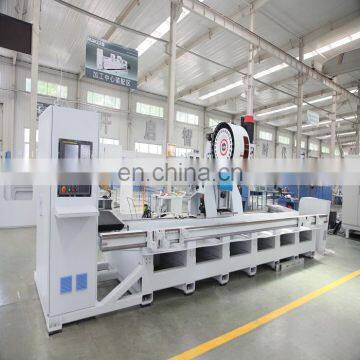

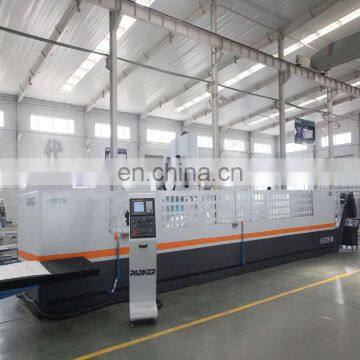

DMCC3S(BT40) 3 Axis High Speed Heavy Duty Machining Center

3-Axis High Speed Heavy Duty Machining Center

Model: DMCC3S(BT40)

Main Feature:

1.Automatic multiple machine center with functions of milling, drilling, tapping, routing, chamfering, designed for various length of aluminium, copper, profile steel, etc.

2.It adopts automatically chip removing machines.

3.The machines is equipped with BT40 spindle, which provides high connection rigidity.

4.The machine is equipped with protective cover, which guarantees the operating safety and cleanness.

5.The machine adopts Disc-type tool magazine.

6.The machine can be customized into different models according to clients' requirement.

Parameter:

Voltage: 380V 50HZ

Total Power: 45KW

Stroke for X Axis: 7000mm

Stroke for Y Axis; 1200mm

Stroke for Z Axis; 650mm

B Axis rotation range: ±185°

C Axis rotation range: ±320°

Location error: ±0.05mm

Spindle Speed: 24000RPM

Spindle Taper: HSK-63F

Spindle Power: 15KW

Capacity of Tool Magazine: 8

Tool change time: 5.0s

X axis moving speed: 90m/min

Y axis moving speed: 80m/min

Z axis moving speed: 60m/min

X,Y,Z Feeding Speed: 0-2000mm/min

Cooling System: Micro Oil Lubrication

Surface roughness: Ra12.5

Air pressure: 0.5-0.8Mpa

Weight: 20T

Dimension: 15500mm x3000mm x 3100mm

Q: How can I get the best machine for our business?

A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!

B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
