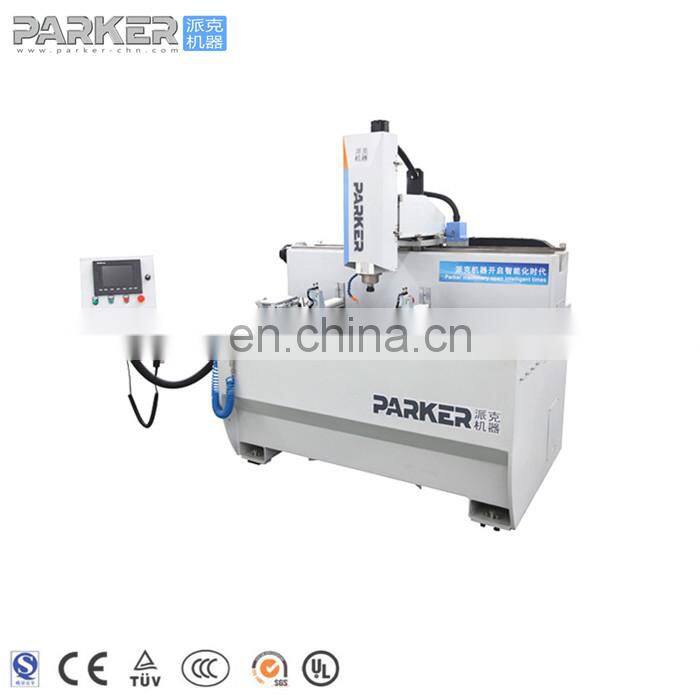

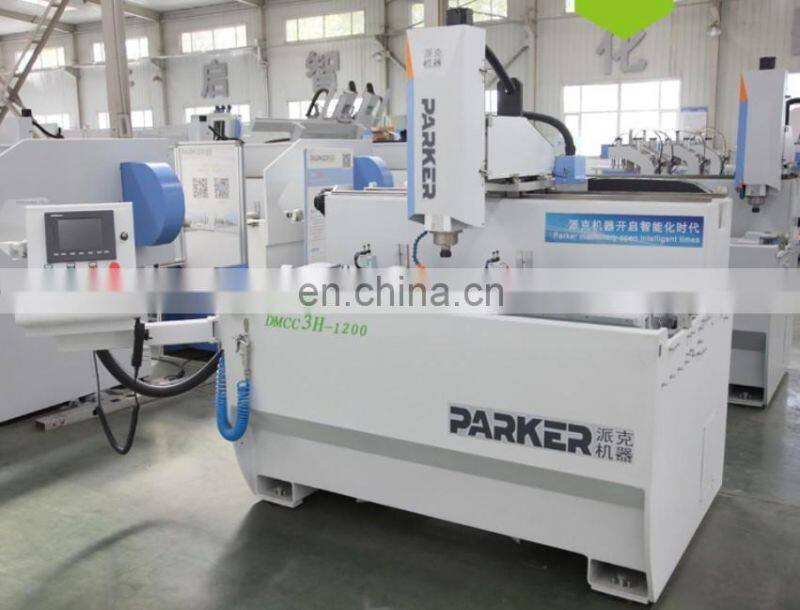

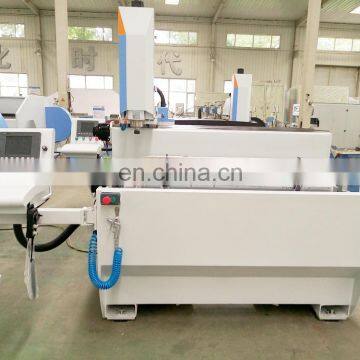

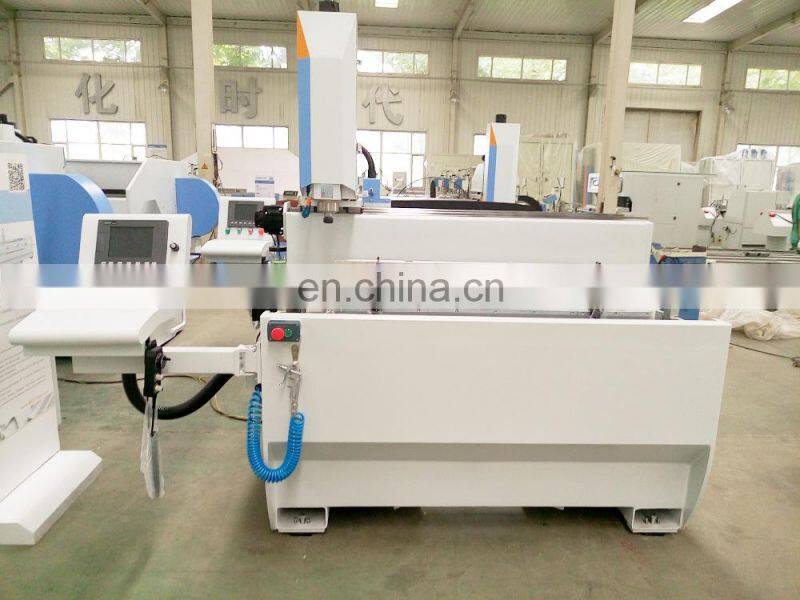

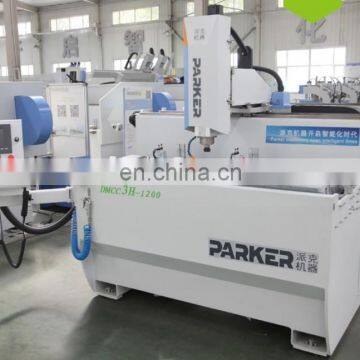

Mini Aluminum CNC Router for Window Door

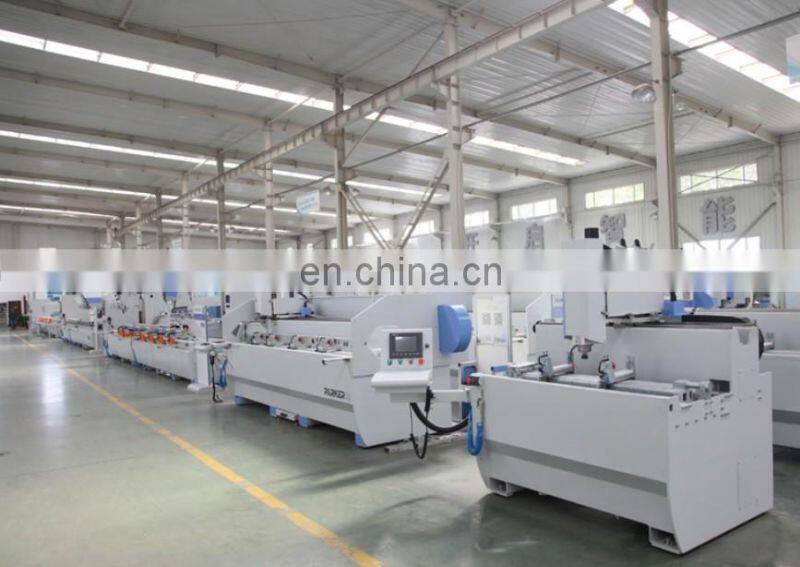

Aluminum CNC Machining Center

Suitable for processing varieties of holes and slots for diversified aluminum and PVC profile

Feature

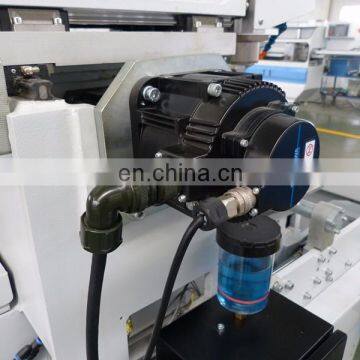

High-precision linear guide pair, ball screw, pinion and rack and imported servo motor ensure the machine runs steadily with high precision.

High-speed motorized spindle ensure the machine runs steadily with lower noise and better cutting ability.

Vegetable oil microcrystalline cooling system improve the tool life without poison and pollution.

The rotary workbench can change the position among -90°、0° and +90° arbitrarily, one time clamping can finish milling for three sides.

SYNTEC control system from Taiwan, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.

Parameter

X axis Stroke：1200mm

Y axis Stroke：300mm

Z axis Stroke：300mm

X axis Speed：0～80m/min

Y axis Speed：0～75m/min

Z axis Speed：0～75m/min

Main spindle speed and Power：18000rpm/6kw

Work table position：-90°、0°、+90°

Cutter size: ER32-Ф8

Air Pressure：0.5～0.8MPa

Voltage：380V/50Hz

Power：9kw

Cutter cooling：Auto spraying and cooling

Processing dimension:（W×H×L）：160×160×1200mm

Processing character：Can process three sides of profile per time loading profile

Dimension:（L×W×H）：2525X1330X2060mm

Processing Length Variants

1200mm

2000mm

3200mm

Options

Control System

Automatic Change Tools(for 2000mm and 3200mm)
