Home > Products > CNC machining center > 3 Axis CNC Machining Centre for Aluminum Profiles and Curtain Wall Profiles /Aluminum Window Door Drilling&Milling Machine

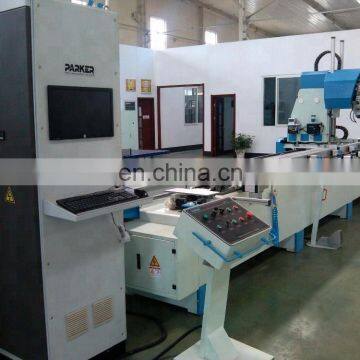

3 Axis CNC Machining Centre for Aluminum Profiles and Curtain Wall Profiles /Aluminum Window Door Drilling&Milling Machine
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Heavy Duty Industrial Aluminum Profiles CNC Drilling Machine with Fanuc System
- 3200mm Stroke Aluminum Window Door CNC Drilling Milling Machines
- Hot Sale Aluminum Window Door Drilling and Milling Machine Center
- Aluminum and metal profile 3 axis drilling, milling and tapping machining center
- China cnc aluminum window door cnc copy router machine
- Gantry Type CNC 5 Axis CNC Machining Center for Aluminum Solutions
Product Details
Brand Name: | Parker | Place of Origin: | Shandong, China | Type: | Horizontal |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Weight: | 5000kg | Dimension(L*W*H): | 10000mm x2300mm x 2800mm | Voltage: | 380V 50HZ, 380V 50HZ |
Condition: | New | Power(W): | 13KW |
Product Description
3 Axis CNC Machining Centre for Aluminum Profiles and Curtain Wall Profiles /Aluminum Window Door Driiling&Milling Machine
Features:
1. It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing. facade processing machine
2. The full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.
3. The list of processing about drilling, milling, tapping into one clamping.
4. The body is welding by steel tube with high quality and be processed by scratch push, so it is stability and strong steel.
5. Ball screw from ABBA, HIWIN from Taiwan, UUC rack from Taiwan keep high precision.

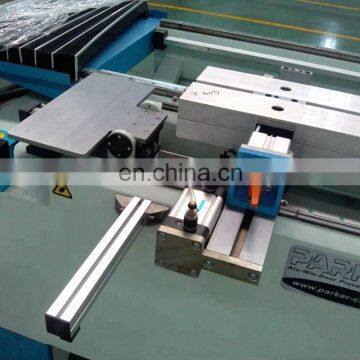

6. Designed the moving work table for material, and moving box.

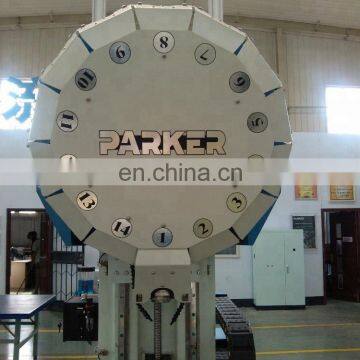

7. Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.

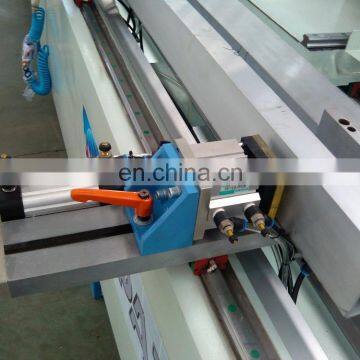

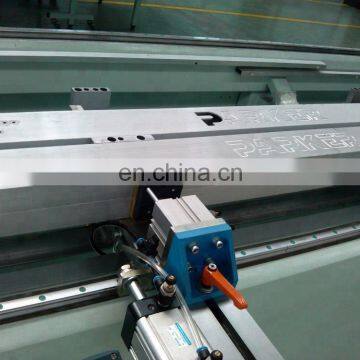

8. Double location design, the machine goes on working when feeding profiles interactively, which makes the equipment improve efficiency greatly.
9. Power of continuing function, the machine can go on processing when the power is get through. Linked speed(processing, interpolation) can get to 1000mm/min
10. It is equipped with lock tool apron, which makes it convenient to change the cutters.
11. All the components adopt batch-type feed system, central lubrication; the cutters adopt freezing spray system to cooling, which can improve the life and working depth of work piece.
12. The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS. The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS. and etc.
Parameters:
Voltage: | 380V 50HZ |
Total Power: | 13KW |
Location error: | ±0.05mm |
Resetting error: | ±0.02mm |
Processing error: | ±0.1mm |
Surface roughness: | Ra12.5μm |
X axis: | 7070mm |
X axis running speed: | 48m/min |
Y axis: | 40mm |
Y axis running speed: | 48m/min |
Z axis: | 572mm |
Z axis running speed: | 20m/min |
Overall dimension: | 10000mm x2300mm x 2800mm |
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
1. When can we arrange shippment?
We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
