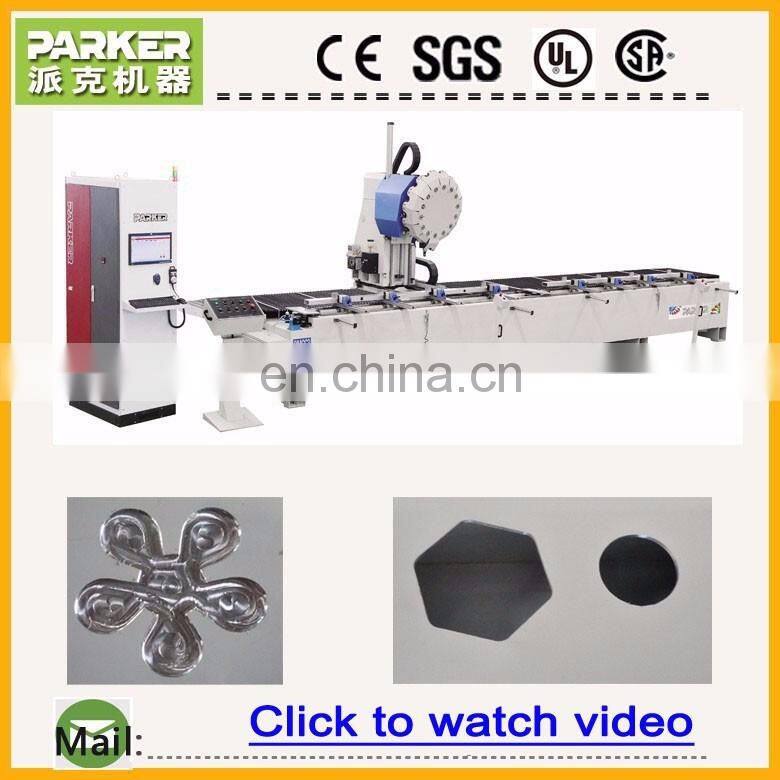

CNC 3 Axis Horizontal Machining Center for Car Parts

Product Application

It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.

Main Features

◆ It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.
◆ The full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

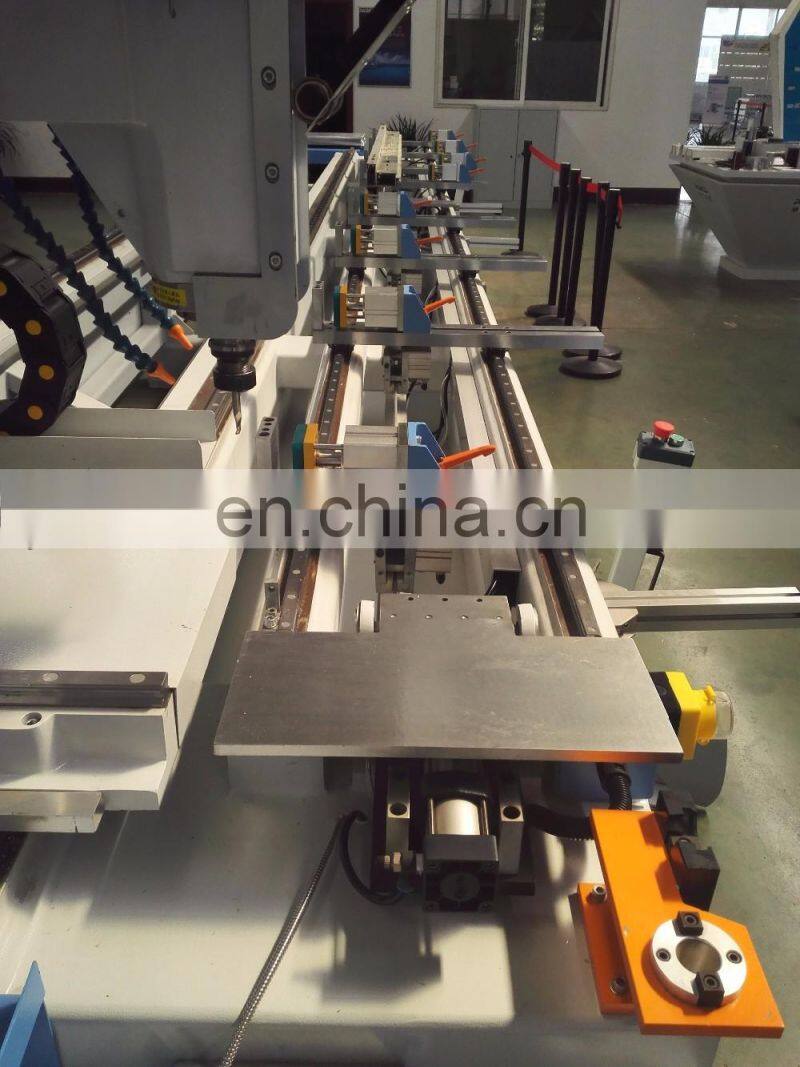

◆ Designed the moving work table for material, and moving box.
◆ The list of processing about drilling, milling, tapping into one clamping.
◆ The body is welding by steel tube with high quality and be processed by scratch push, so it is stability and strong steel.
◆ Ball screw from ABBA, HIWIN from Taiwan, UUC rack from Taiwan keep high precision.

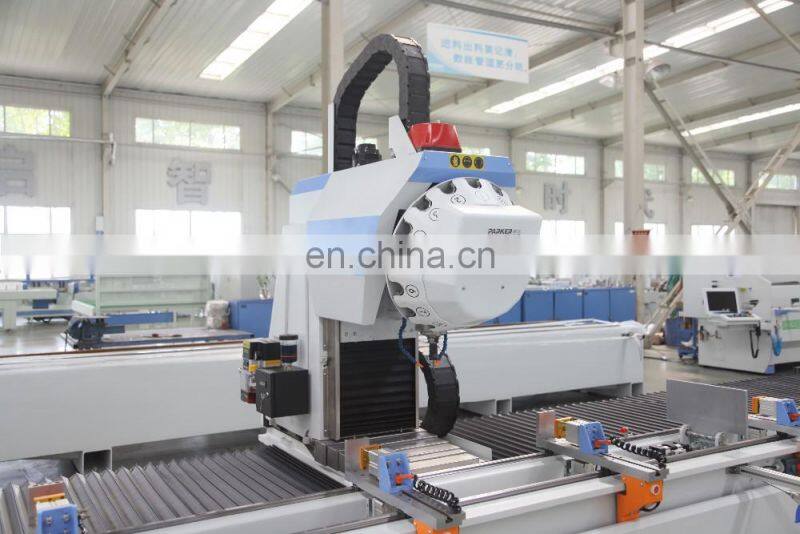

◆ Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.
◆ Double location design, the machine goes on working when feeding profiles interactively, which makes the equipment improve efficiency greatly.
◆ Power of continuing function, the machine can go on processing when the power is get through. Linked speed(processing, interpolation) can get to 1000mm/min
◆ It is equipped with lock tool apron, which makes it convenient to change the cutters.
◆ All the components adopt batch-type feed system, central lubrication; the cutters adopt freezing spray system to cooling, which can improve the life and working depth of work piece.
◆ The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.
◆ Use plant oil to spray, lubricate once half an hour.
◆ There is safe photo electricity protection screen in the front of the machine, equipped with the location of machine head detection, the location of operators detection to insure the safe of operators.

Machine Parts

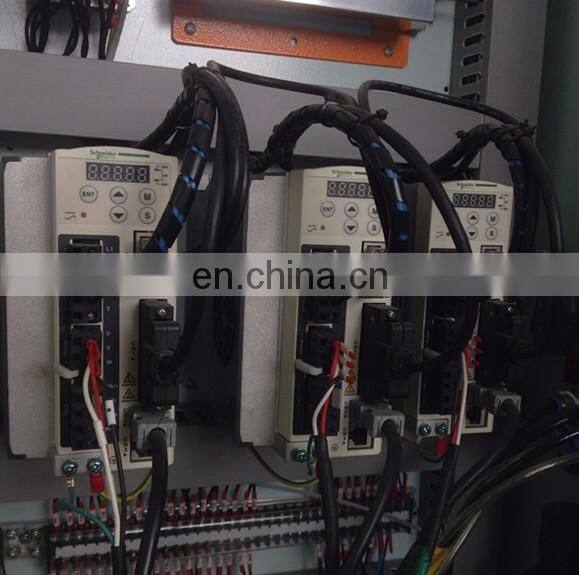

Name: Servo Motor

Brand: Schneider

Original: France

 The full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

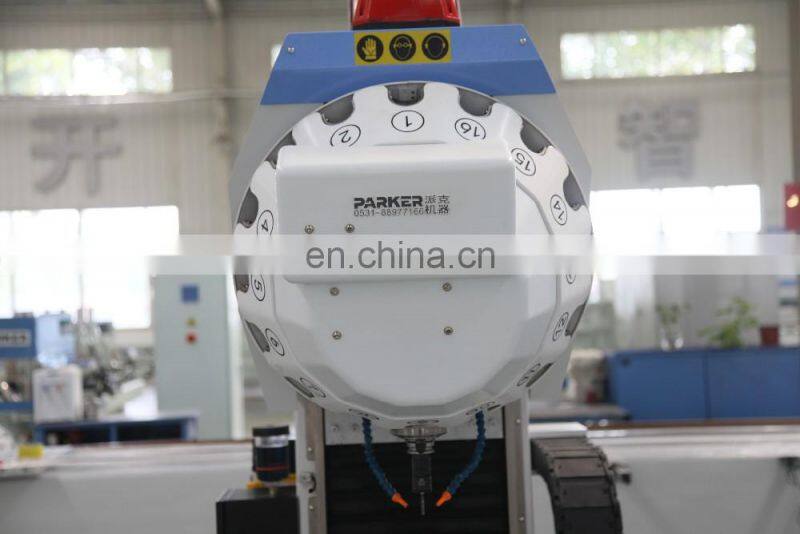

Name: Tool Magazine
Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 20mm, the min diameter is 4mm, it could process the profile of 20mm.

Machine Parts

All the components adopt batch-type feed system, central lubrication; the cutters adopt freezing spray system to cooling, which can improve the life and working depth of work piece.

Main Features

 It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.
