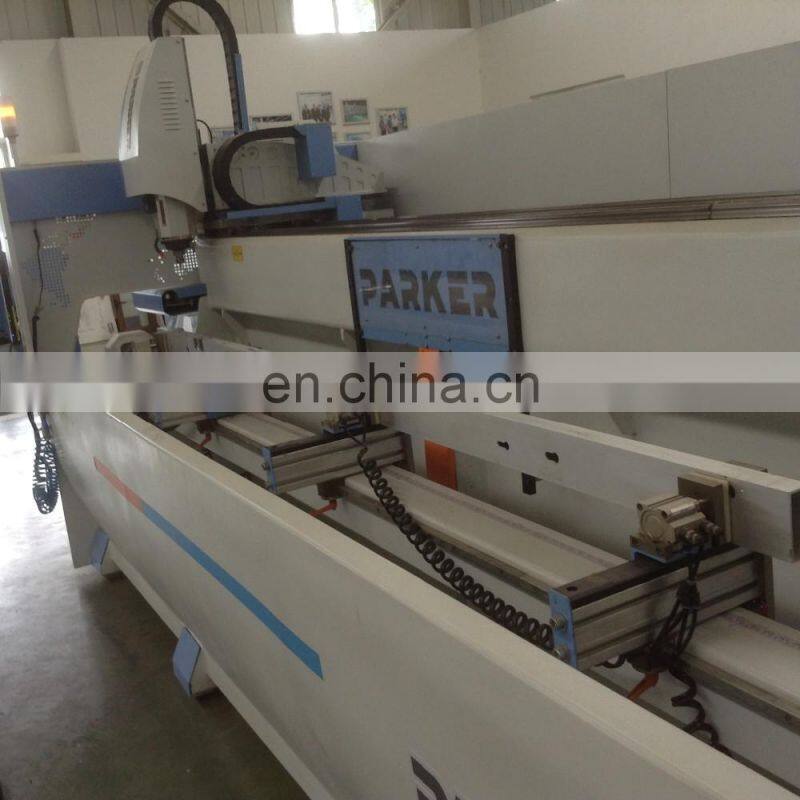

VMC CNC Machining Center 4 Axis 3 Axis 5 Axis Aluminum Profiles

INTRODUCTION

DMCC82 high-speed drilling-milling processing center is equipped with SCHNEIDER brand servo motor control system, ensuring high quality. Equipped with professional CAM processing software and intuitive programming system, this CNC profile machining center enables easy visualization of complex processing. This curtain wall drilling-milling processing center is designed for processing mounting hole, launder, lock hole and screw on various curtain wall profiles made of aluminum, light alloy or UPVC.

This CNC profile machining center is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, etc. DMCC82 drilling-milling processing center can also be applied for industrial aluminum, nonferrous metal and light section steel structure, and so on.

1.For curtain walls, aluminium profiles and so on.

2.Drilling and milling functions.

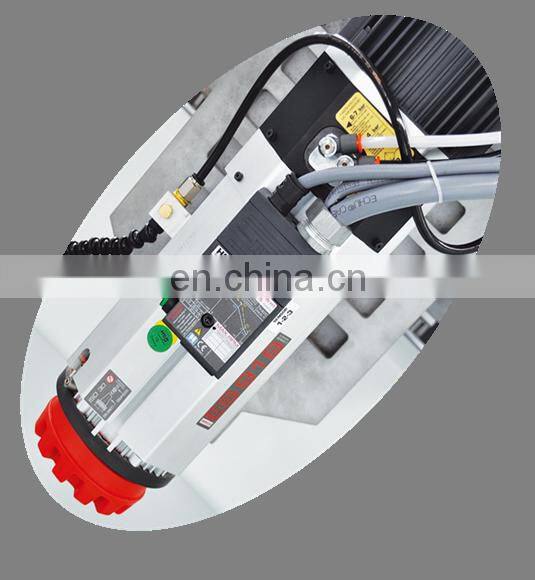

3.Spindle: Italy HSD, 18000 rpm/min.

4.Industrial personal computer: Taiwan ADVANTECH.

5.Servo motor and driver: Japan OMRON.

6.Ball screw and square guide rail: Japan ABBA.

7.A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.

8.Half dry cooling system, with plant oil, no damage to workers and environment.

9.Continue to work from the breakpoint.

10.Equipped with professional software CAD-CAM.

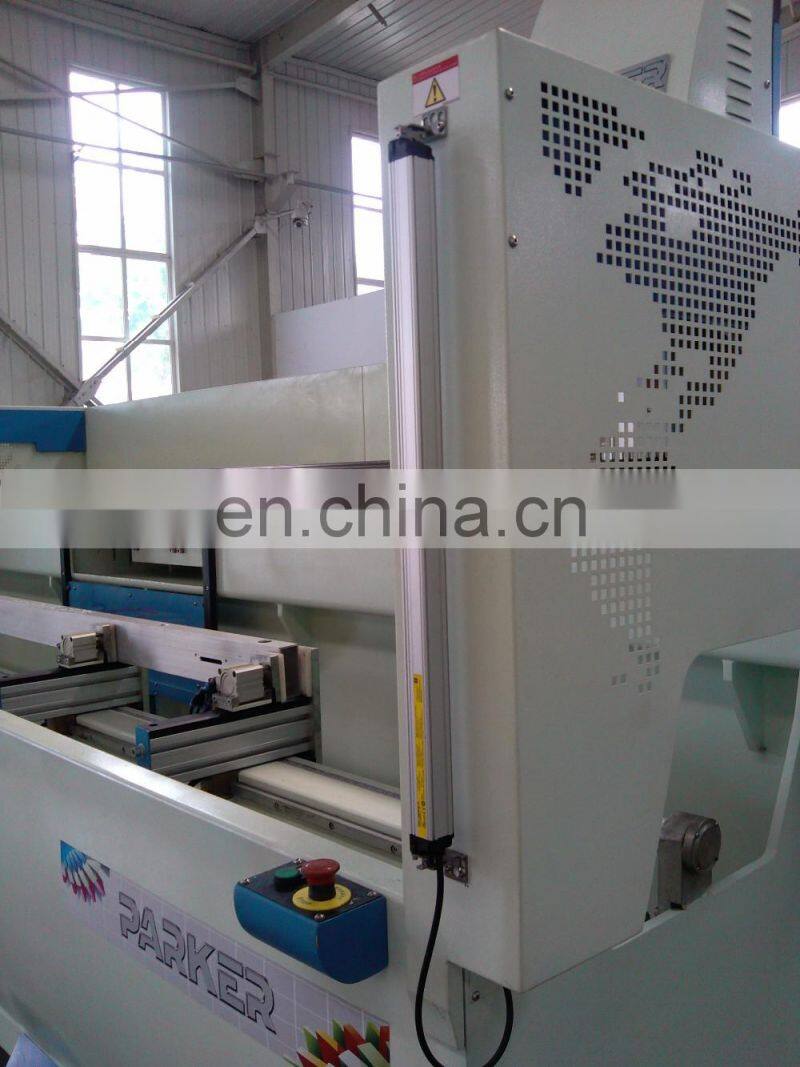

11.Light curtain to protect workers effectively.

12.Lock Knife block is convenient to change cutters.

13.Add a door to the tool magazine, with 8 pcs of cutters.

TECHNIQUE PARAMETERS

Voltage: 380V 50 Hz

Total Power :11 kW

X Axis :3500 mm

X Axis Running Speed: 120 m/min

Y Axis :400 mm

Y Axis: Running Speed 80 m/min

Z Axis :400 mm

Z Axis Running Speed: 60 m/min

Max. Processing Speed: 30 m/min

Overall Dimension :5380 mm × 1890 mm × 2240 mm

Weight of CNC Profile Machining Center: 3000 kg

Super Speed

Locating and processing with super speed which can be up to 120m/min.

Processing Software

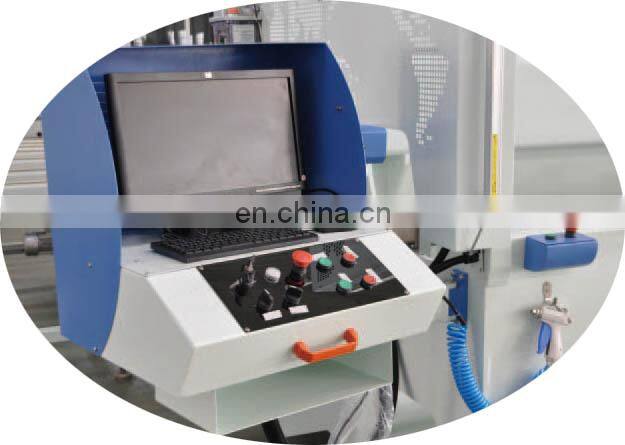

Equipped with professional CAD-CAM processing software.It can recognize DWG.

Half Dry Cooling System

Half dry cooling system, with plant oil, without toxin and polution ,no damage to workers and environment. Easy to clean.

Tool Magazine

Lock Knife block is convenient to change cutters automatically, and add a door to the tool magazine, with 8 pcs of cutters.

Working Table

This Machining Center can realize 4-axis linkage and interpolation. Circular tube can also be processed.

Curtain Wall Aluminum Profiles Drilling and Milling
