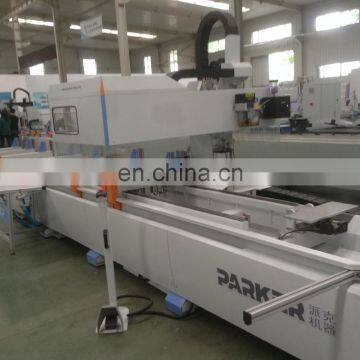

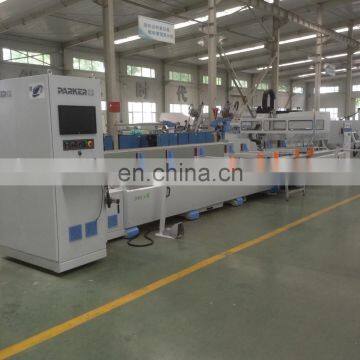

DMCC6 Aluminum CNC Machining Center
Feature
◆ The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.
◆ It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°
◆ It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.
◆ It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.
◆ Equipped Six cutters positions, the cutter can change quickly and automatically .
◆ The semi-closed guard improved security greatly.
◆ Clamping device position can be optimized and put to right position automatically and freely.
Parameter
Name: 4 axis CNC machining center
Model: DMCC6
Power: 380V/50Hz/10kw
Air pressure: 0.5-0.8Mpa
X axis stroke: 7600mm
X axis speed: 0-90m/min
Y axis stroke: 960mm
Y axis speed: 0-80m/min
Z axis stroke: 610mm
Z axis speed: 0-75m/min
Max. speed: 18000RPM
Spindle rotation range: -90°- 0°-90°
Tool magazine: 6 tools, automatic changing
Max. length of tool: 165mm
Clamping station: 8
Lubrication and cooling: Automatic lubrication and spray cooling
Max. size of profile(WxHxL): 550mm x 300mm x 7300mm
Overall dimension(LxWxH): 10100x2300x2600mm
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
4 Axis CNC Machining Center
The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.
5 Axis CNC Machining Center
PKG 5 This equipment is suitable for precision machining of large-scale workpieces such as aerospace, automobile, textile, mold, packaging machinery, mining equipment, and can finish the complicated processing of milling, drilling, boring and tapping.
Parker high speed drilling and milling machine center DMCC82
The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.
