INTRODUCTION

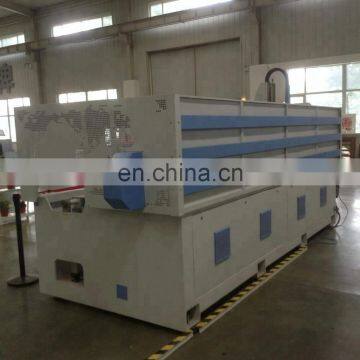

DMCC82 high-speed drilling-milling processing center is equipped with SCHNEIDER brand servo motor control system, ensuring high quality. Equipped with professional CAM processing software and intuitive programming system, this CNC profile machining center enables easy visualization of complex processing. This curtain wall drilling-milling processing center is designed for processing mounting hole, launder, lock hole and screw on various curtain wall profiles made of aluminum, light alloy or UPVC.
This CNC profile machining center is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, etc. DMCC82 drilling-milling processing center can also be applied for industrial aluminum, nonferrous metal and light section steel structure, and so on.
1.For curtain walls, aluminium profiles and so on.
2.Drilling and milling functions.
3.Spindle: Italy HSD, 18000 rpm/min.
4.Industrial personal computer: Taiwan ADVANTECH.
5.Servo motor and driver: Japan OMRON.
6.Ball screw and square guide rail: Japan ABBA.
7.A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.
8.Half dry cooling system, with plant oil, no damage to workers and environment.
9.Continue to work from the breakpoint.
10.Equipped with professional software CAD-CAM.
11.Light curtain to protect workers effectively.
12.Lock Knife block is convenient to change cutters.
13.Add a door to the tool magazine, with 8 pcs of cutters.
Parameters of High-Speed CNC Profile Machining Center
Voltage: 380V 50 Hz
Total Power :11 kW
X Axis :3500 mm
X Axis Running Speed: 120 m/min
Y Axis :400 mm
Y Axis: Running Speed 80 m/min
Z Axis :400 mm
Z Axis Running Speed: 60 m/min
Max. Processing Speed: 30 m/min
Overall Dimension :5380 mm × 1890 mm × 2240 mm
Weight of CNC Profile Machining Center: 3000 kg
Super Speed
Locating and processing with super speed which can be up to 120m/min.
Processing Software
Equipped with professional CAD-CAM processing software.It can recognize DWG.
Half Dry Cooling System
Half dry cooling system, with plant oil, without toxin and polution ,no damage to workers and environment. Easy to clean.
Tool Magazine
Lock Knife block is convenient to change cutters automatically, and add a door to the tool magazine, with 8 pcs of cutters.
Working Table
This Machining Center can realize 4-axis linkage and interpolation. Circular tube can also be processed.
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Parker service
What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
