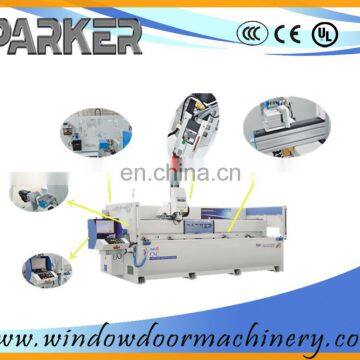

Help CenterHorizontal CNC 4 Axis Milling Drilling Machine
Related Products
-
CE Certificated Aluminium Machining Center/Aluminum Profiles 3 Axis CNC Drilling&Milling MachineUS$ 10,000 - 50,000MOQ: 1 Set -
Aluminum Parts Profile Cnc Plate Drilling MachineUS$ 36,900 - 99,500MOQ: 1 Set
-
CNC Fanuc Control Machining Center for Rail Way Vehicle LED Light Aluminum ProfileUS$ 36,900 - 99,550MOQ: 1 Set
-
Fanuc Control System Dual Head CNC Machining Center for Aluminum ProfileUS$ 76,900 - 89,000MOQ: 1 Set
-
Aluminum Profile 4 AXIS CNC Machining CenterUS$ 76,900 - 89,000MOQ: 1 Set
Aluminum CNC Machining Center
Feature
1.It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.
2.Can process the circular tube.
3.Ball screw from ABBA, electric main shaft imported for Italy keep high precision.

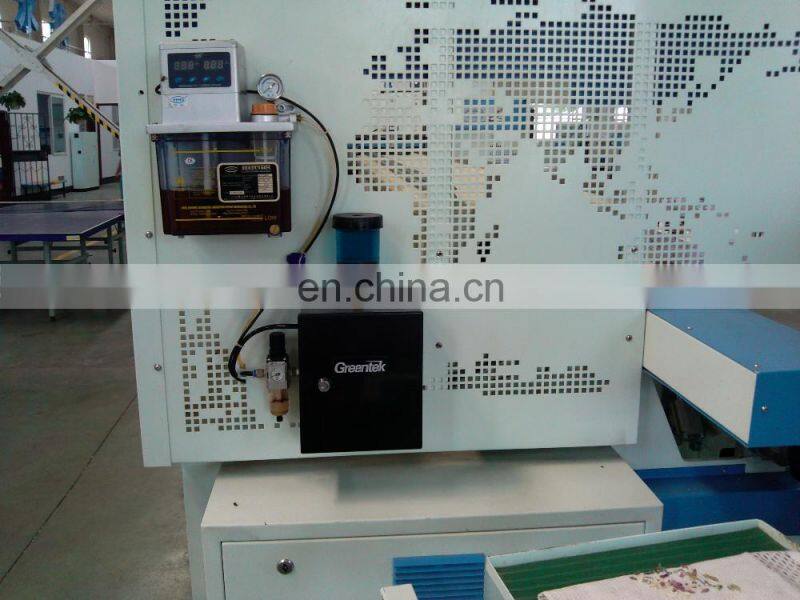

4.Automatic cooling system uses the brand GreenTek. Use plant oil to spray. an hour.
5.Automatic lubrication system, lubricate once half to make the machine working with high efficiency.
6.The full set is servo motor control system, and use Schneider brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

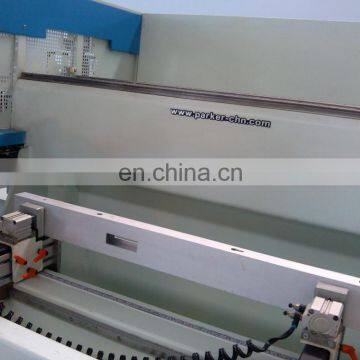

7.Designed the moving work table for material, and moving box.
8.The list of processing about drilling, milling, tapping into one clamping.
9.The body is welding by steel tube with high quality and is processed by scratch push, so it is stability and strong steel.

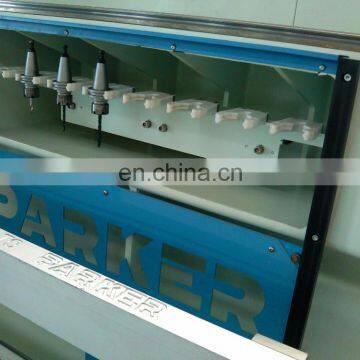

10.Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.
11.Power of continuing function, the machine can go on processing when the power is get through. Linked speed(processing, interpolation) can get to 1200mm/min
12.It is equipped with lock tool apron, which makes it convenient to change the cutters.
13.The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.
14.There is safe photo electricity protection screen in the front of the machine, equipped with the location of machine head detection, the location of operators detection to insure the safe of operators.
Parameter
Total Power: 11W
Resetting error: ±0.02mm
Processing error: ±0.1mm
Surface roughness: Ra12.5μm
X axis/ transversal travel: 3500mm
X axis running speed: 120m/min
Y axis/ vertical travel: 400mm
Y axis running speed: 80m/min
Z axis/ longitudinal travel: 400mm
Z axis running speed: 60m/min
Max. processing speed: 30m/min
Overall dimension: 5380x 1890mm x 2240mm
Weight: 3000kg
