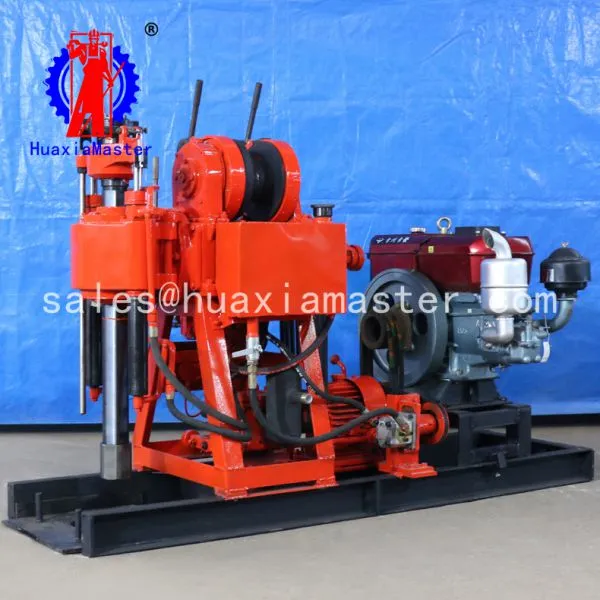

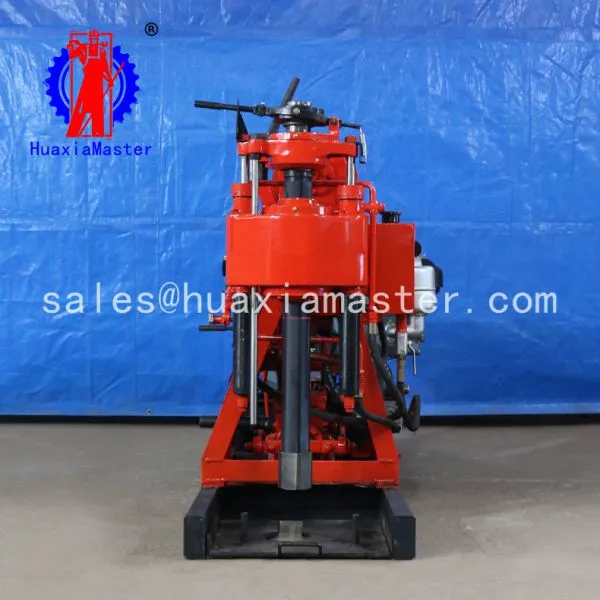

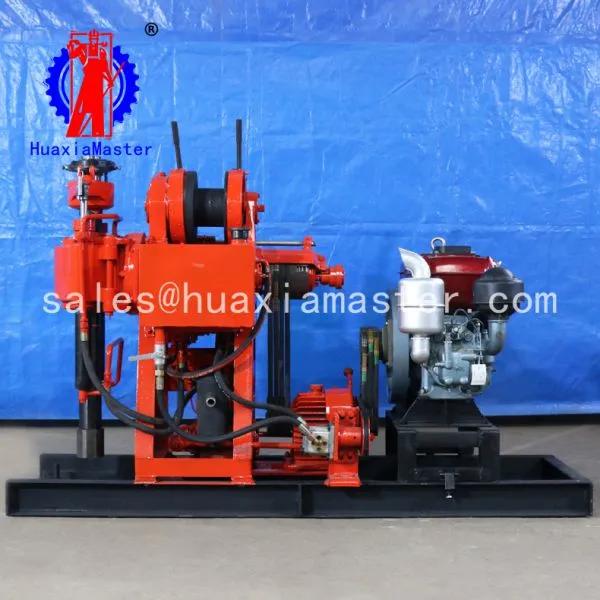

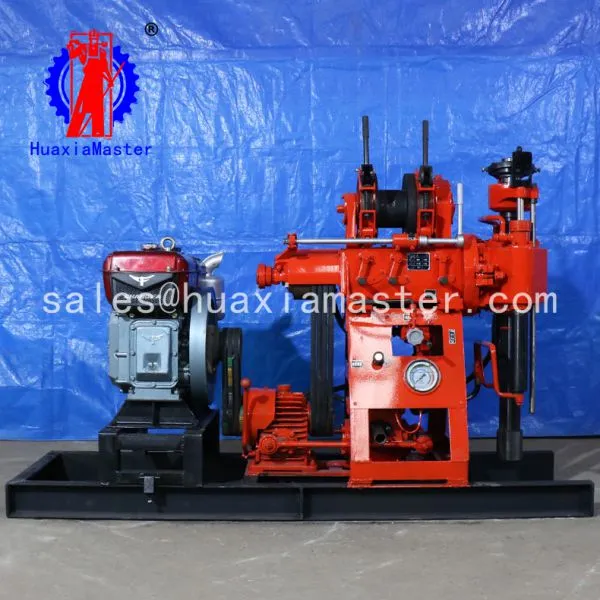

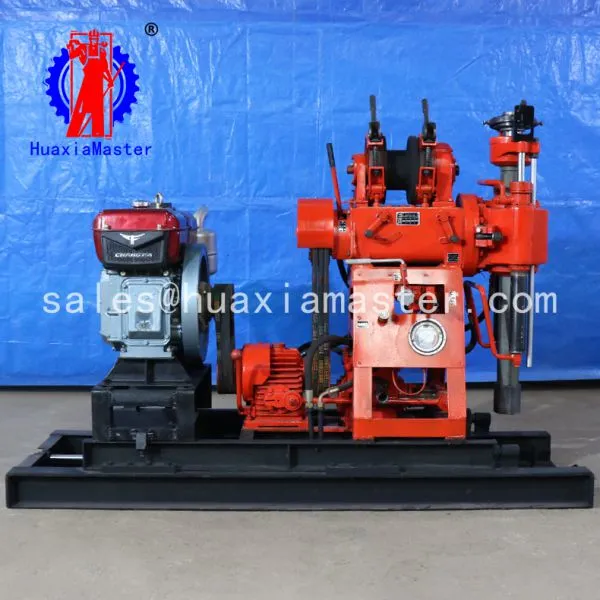

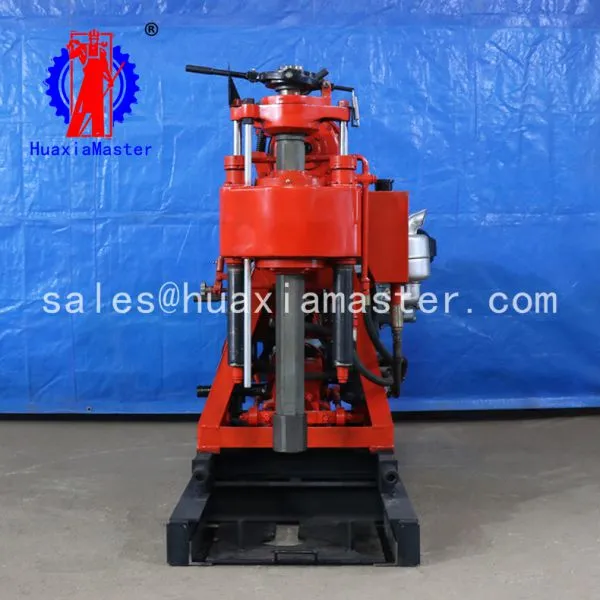

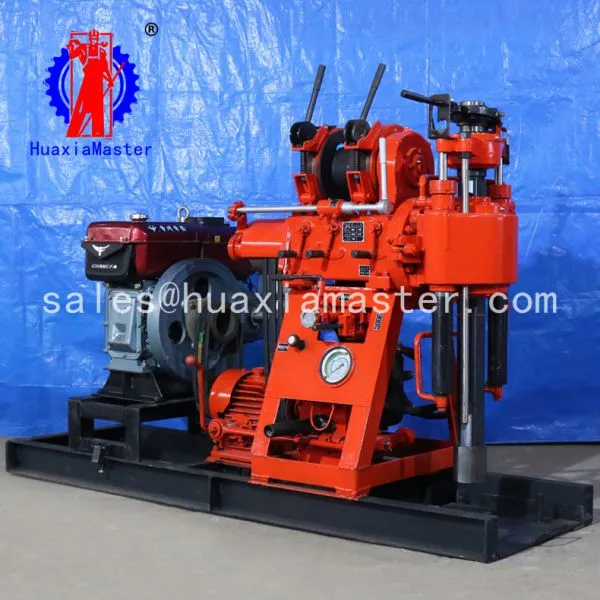

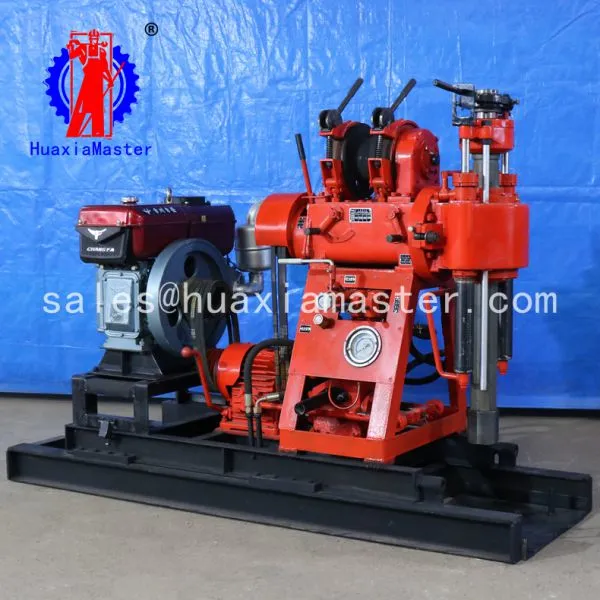

Help CenterShandong Master Machery Group Sale Small Water Well Drilling Machine/rotary Drilling Rig
Related Products
-
BXZ-1 Backpack Core Drilling Rig/hand Held Concrete Core Drill Rig for SaleUS$ 1500 - 1600MOQ: 1 Set -
KY-150 360 Degree Metal Mine Tunnel Drilling Rig /Metal Mine Drilling Rig Machine for SaleUS$ 1500 - 1800MOQ: 1 Set
-
Cheap Price-Drill 130m Deep Mobile Water Well Rig Drilling Machine Portable For SalesUS$ 1500 - 1700MOQ: 1 Set
-
QZ-2CS Gasoline Core Drilling Small Portable Mini Bore Well Drilling Machine Gasoline Engine Sampling Drilling RigUS$ 1600 - 1800MOQ: 1 Set
-
Good Price Borehole Rock Core Water With Well Drilling Rig Rotary Water Drilling Rig for SaleUS$ 1600 - 1900MOQ: 1 Set

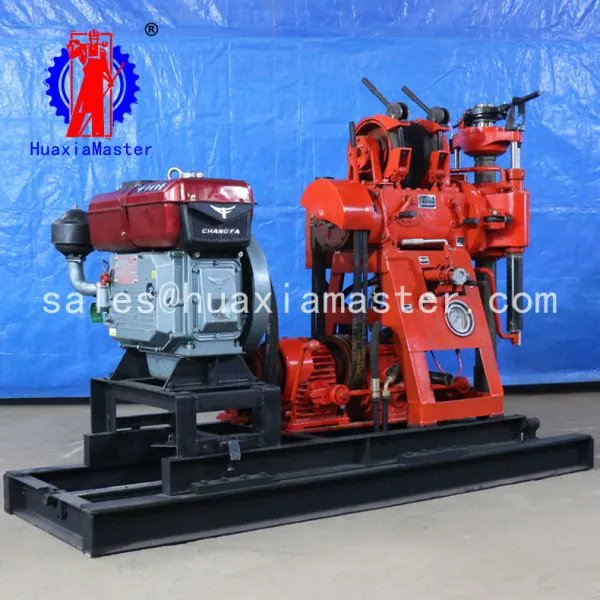

1.Features of XY-130 hydraulic water well drilling rig
· Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
· Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
· This drilling rig adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
· Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
2.Specifications of XY-130 hydraulic water well drilling rig
XY-130 hydraulic water well drilling rig | |
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90 |
Drill weight (Not include power) |
600kg |
Spindle | |
Spindle speed |
142 285 570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
Matched driving power (diesel engine and motor) |
18hp diesel engine and 11kw motor |
