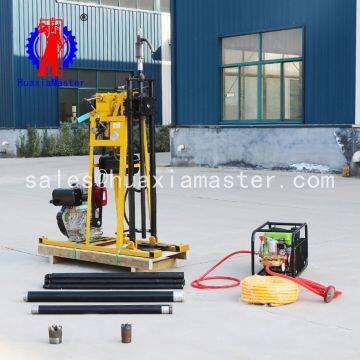

Help CenterLight Hydraulic Core Sampling Drill Rig YQZ-50A/small Diesel Power Geology Exploration Drilling Machine Easy Operation
Related Products
-
Huaxiamaster BXZ-2 Backpack Core Drilling Rig /core Geological Drilling MachineUS$ 1500 - 1600MOQ: 1 Set -
The Countryside XYC-200A Tricycle Water Well Drilling Rig Machine Hydraulic Water Well Drilling Rig For SaleUS$ 1600 - 1800MOQ: 1 Set
-
BXZ-2L Can be Disassembled Into a Knapsack Type Portable Core Drill With Small SizeUS$ 1200 - 1300MOQ: 1 Set
-
Geological Sampling Exploration Designed Machinery QZ-2B Gasoline Engine Core Drilling RigUS$ 1500 - 1600MOQ: 1 Set
-
00:01 00:05 View Larger Image Good Sale QTZ-1Man Hand Held Impact Soil Sampling Drilling Machine Good Sale QTZ-1Man Hand Held Impact Soil Sampling Drilling Machine Good Sale QTZ-1Man Hand Held Impact Soil Sampling Drilling Machine Good Sale QTZ-1Man HandUS$ 1200 - 1400MOQ: 1 Set

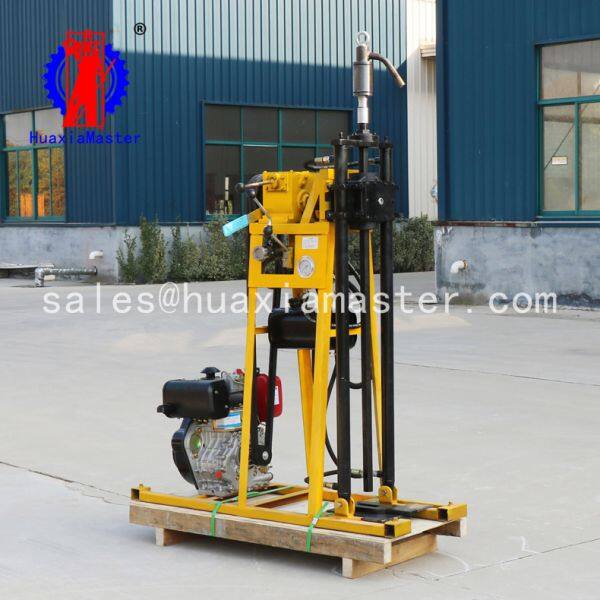

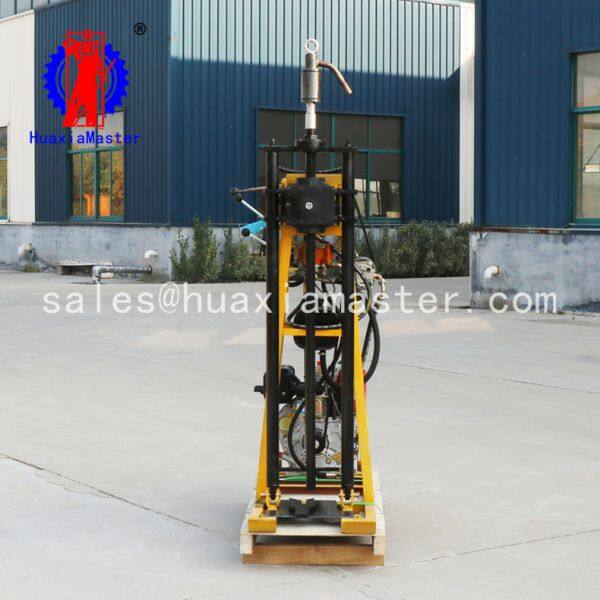

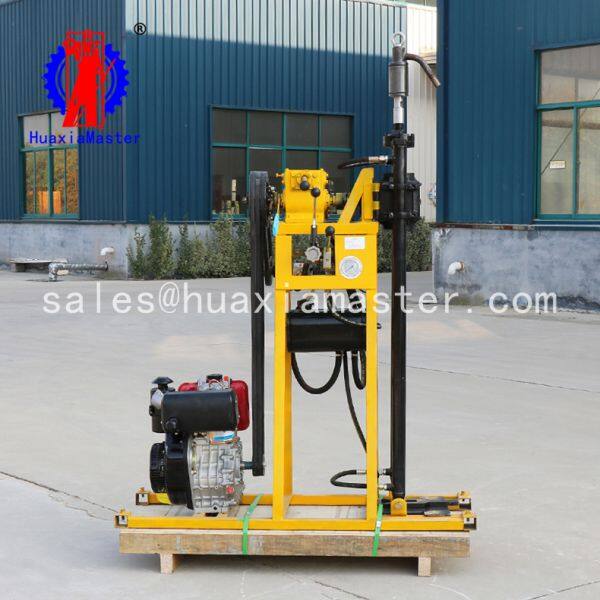

1.Introduction of YQZ-50A hydraulic core drilling rig
YQZ-50A hydraulic core drilling rig is a high, medium and low speed drilling rig with hydraulic pressure feeding. The rig is suitable for geological drilling of complex terrain such as mountains, hills and rivers, engineering geological survey of buildings, and drilling of blast holes. In order to meet the needs of different users, the rig can be equipped with one of three powers of diesel engine, gasoline engine or electric motor. The default is diesel engine power.
2. Features of YQZ-50A hydraulic core drilling rig
This model of light weight drilling rig is compact, small and lightweight. The rig can also be dismantled quickly, making it easier to carry the mountain, especially for complex terrain such as mountains and hills.
Compared with similar products, this type of portable drilling rig is equipped with a double cylinder hydraulic feeding system, which has a fast drilling speed and high work efficiency.
This type of portable drilling machine operation panel is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, so that the operator can adjust according to different terrain conditions.
This model of lightweight drilling rig is equipped with a high-performance 4-speed shifting system. It is convenient for the operator to adjust the forward rotation speed according to the geological conditions. In addition, it is equipped with an ultra-low speed reverse gear, which is convenient for the operator to disassemble the drill pipe.
The rig is equipped with a fixed clamping mechanism and an integrated main rod, which eliminates the need for a rig and makes the work more compact.
3. Technical parameters of YQZ-50A hydraulic core drilling rig
Name |
Content |
Model or parameter |
||
|
Rig host |
Power section |
diesel engine |
||
Rig weight |
168kg |
|||
Drill size |
1250*650*1450mm |
|||
Drill pipe diameter |
38mm |
|||
Drilling diameter |
46mm |
60mm |
75mm |
|
Drilling depth |
55-60m |
50-55m |
45-50m |
|
Gearbox position |
4-speed shift |
|||
|
Gyrator |
Clamp type |
Fixed clamping type |
||
Vertical axis type |
Hexagonal |
|||
Vertical axis opposite side length |
36mm |
|||
Vertical shaft length |
1400mm |
|||
Vertical shaft forward rotation speed |
220/580/960rpm |
|||
Vertical axis reverse speed |
130rpm |
|||
Vertical shaft maximum output torque |
400n.m |
|||
Vertical shaft double cylinder stroke |
1200mm |
|||
Double cylinder maximum feed force |
7kn |
|||
Double cylinder maximum lifting force |
15kn |
|||
Double cylinder maximum lifting force |
0.035m/s |
|||
Vertical axis no-load down speed |
0.085m/s |
|||
|
Hydraulic system |
Oil pump flow |
10ml/r |
||
Pressure gauge pressure range |
0-6mpa |
|||
Pump rated pressure |
20mpa |
|||
Hydraulically operated valve position |
4files |
|||
Maximum feed pressure |
6mpa(900kg) |
|||
Maximum lifting pressure |
9mpa（1360kg） |
|||
Hydraulic tank capacity |
9l |
|||

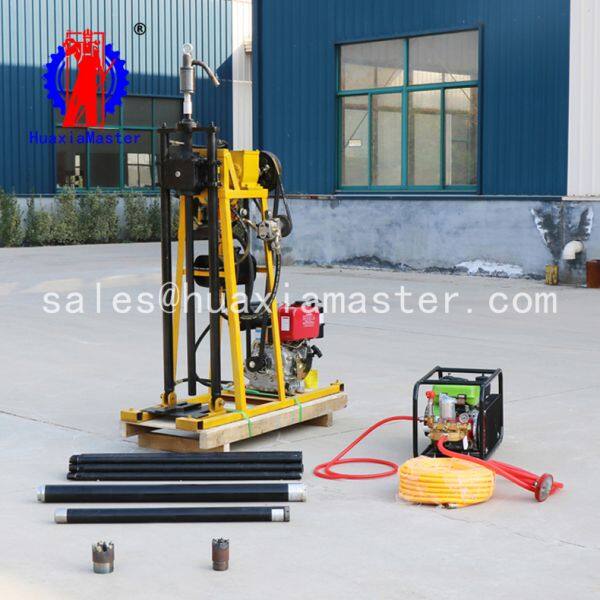

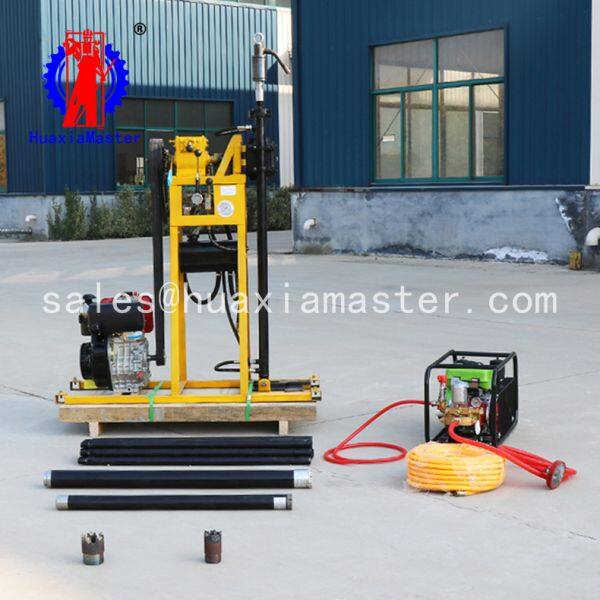

4. Configuration list of YQZ-50A hydraulic core drilling rig
Item |
Name |
Model |
Unit |
Quantity |
1 |
Hydraulic core drilling rig |
YQZ-50A |
set |
1 |
2 |
Water faucet |
pc |
1 |
|
3 |
Adaptor |
pc |
1 |
|
4 |
Drill pipe（Including Joint） |
38*1000 |
root |
30 |
5 |
Adaptor |
60 |
pc |
1 |
6 |
Core tube |
60 |
root |
1 |
7 |
Alloy bit |
60 |
pc |
1 |
8 |
Diamond drill bit |
60 |
pc |
1 |
9 |
Adaptor |
75 |
pc |
1 |
10 |
Core tube |
75 |
root |
1 |
11 |
Alloy bit |
75 |
pc |
1 |
12 |
Diamond drill bit |
75 |
pc |
1 |
13 |
High pressure faucet |
set |
1 |
|
14 |
High pressure water pump water seal |
set |
1 |
|
15 |
Straw |
root |
1 |
|
16 |
Water absorption filter |
pc |
1 |
|
17 |
Return pipe |
root |
1 |
|
18 |
High pressure water supply pipe |
30m/plate |
plate |
1 |
19 |
U-fork |
pc |
1 |
|
20 |
UL-fork |
pc |
2 |
|
21 |
Pipe wrench |
pc |
2 |
|
22 |
Wellhead plate |
pc |
1 |
