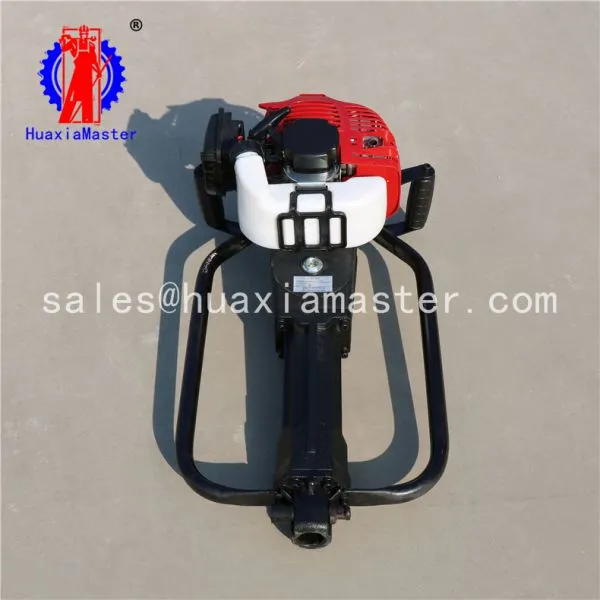

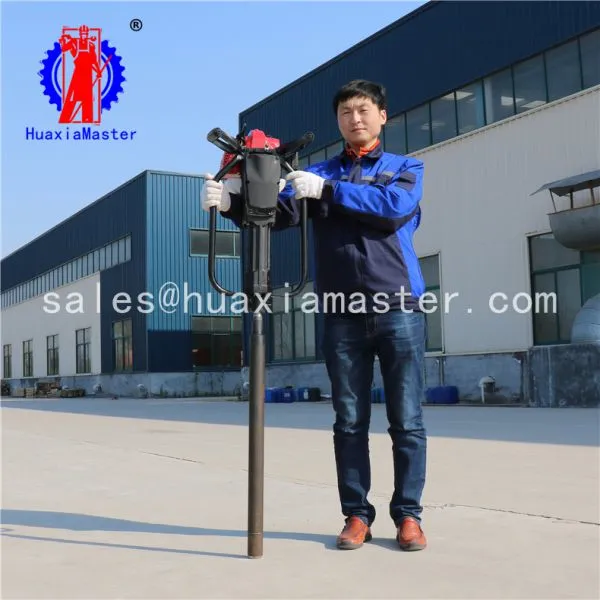

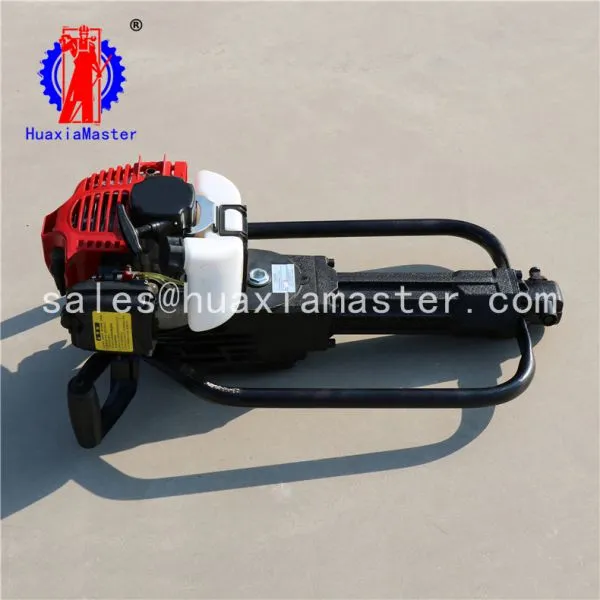

1. Brief introductions of QTZ-1 soil sampling drilling rig
QTZ-1 soil sampling drilling rig is comparable to a huge hydraulic and pneumatic drilling rig. The drilling rig is a dynamic gasoline driller used for soil sampling, The rig uses gasoline power and is simple in operation. The rig is safe and stable in performance. It can greatly reduce the labor force, taking into account the rapid and simple sampling speed.
2.Applications of QTZ-1 soil sampling drilling rig
· Geotechnical engineering investigation,environmental soil survey,agricultural soil survey.
· Groundwater survey,coastal geological survey,wetland environment investigation.
· Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Technical parameters of QTZ-1 soil sampling drilling rig
QTZ-1 soil sampling drilling rig | ||
|
Power |
power |
2.8hp |
fire mode |
backflush pull rope |
|
oil consumption |
0.5l/h |
|
Impact times |
1500r /min |
|
Impact energy |
20J-55J |
|
Core depth |
5m-10m |
|
Host weight |
23kg |
|

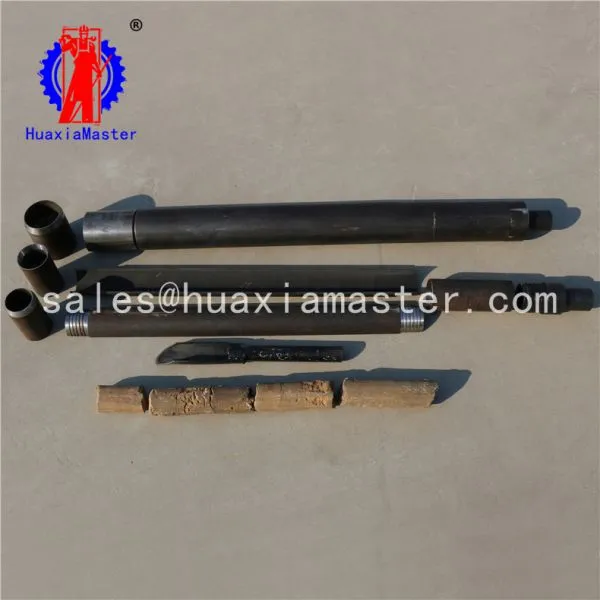

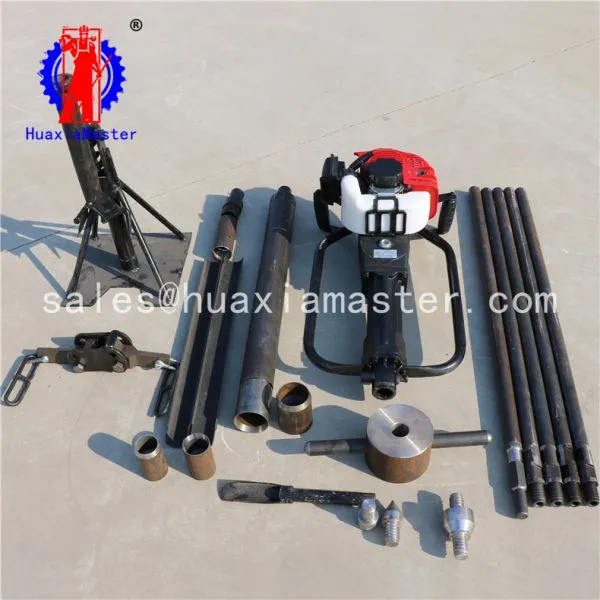

4.Configuration list of QTZ-1 soil sampling drilling rig
Item |
Parameter |
Unit |
Quantity |
Soil sampling drilling rig |
QTZ-1 |
platform |
1 |
Side buckle impact take over |
34*200mm |
pc |
1 |
Square collar |
34*170mm |
pc |
4 |

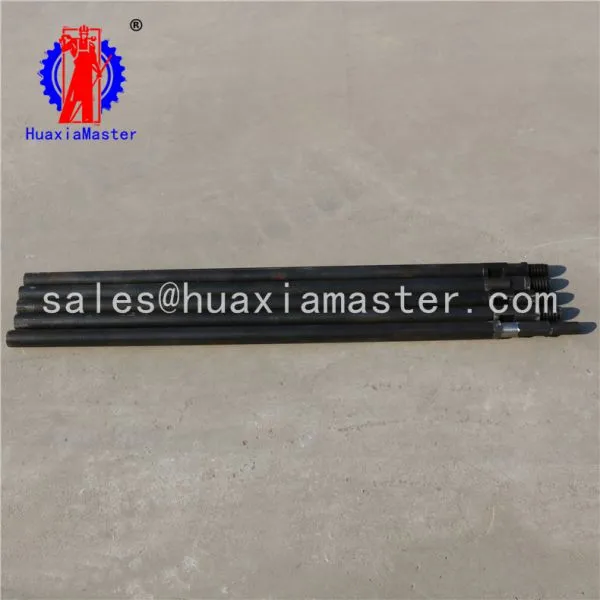

Square buckle drill pipe |
34*910mm |
pc |
5 |
Square buckle reducing nipple |
54/34 |
pc |
1 |
Collar |
54*140mm |
pc |
1 |
Open tube |
54*600mm |
pc |
1 |
Inner edge pipe boots |
54*90mm |
pc |
1 |
Outer edge pipe boots |
54*90mm |
pc |
1 |
Square buckle reducing nipple |
73/34 |
pc |
1 |
Collar |
73*140mm |
pc |
1 |
Open tube |
73*600mm |
pc |
1 |
Inner edge pipe boots |
73*90mm |
pc |
1 |
Outer edge pipe boots |
73*90mm |
pc |
1 |
Portable sounding hammer |
10kg |
pc |
1 |
Square contact probe |
34*98mm |
pc |
1 |
Square buckle and pull the counter cap |
pc |
1 |
|

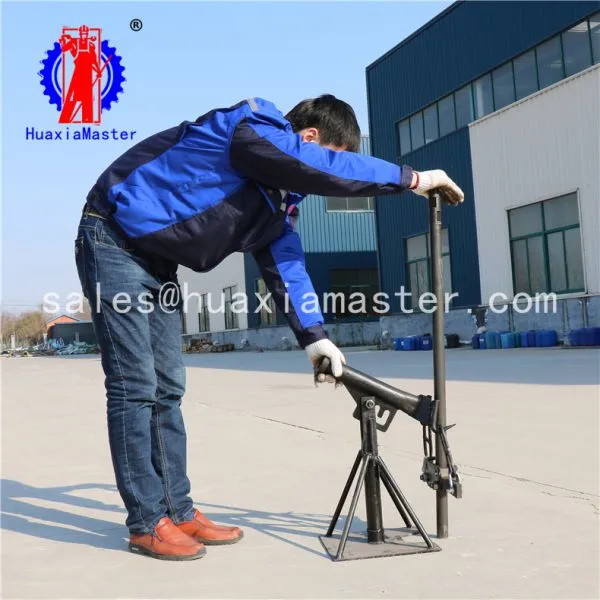

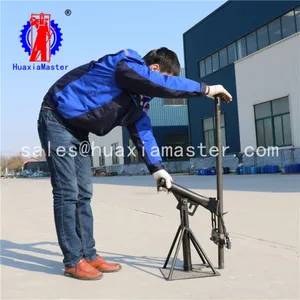

Puller |
Three force arm |
platform |
1 |
The ratio of oil |
25:1 |
pc |
1 |
Tool kit |
set |
1 |
