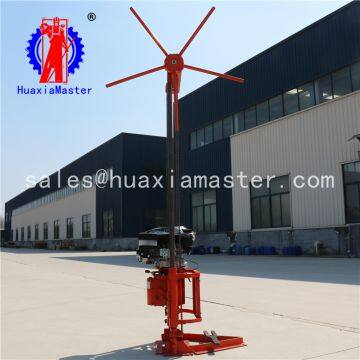

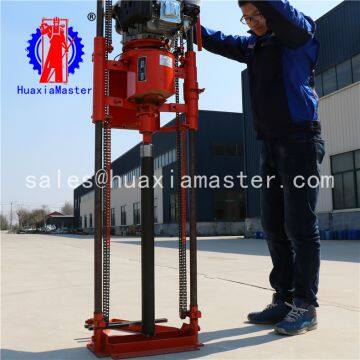

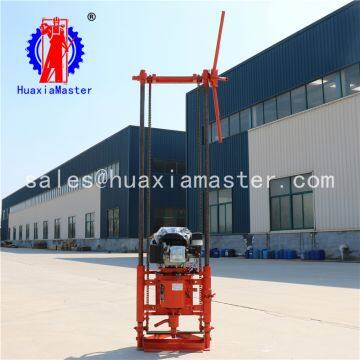

1.Brief introduction of QZ-2B gasoline engine sampling drilling rig
QZ-2B gasoline engine sampling drilling rig is produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.
QZ-2B gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2B gasoline engine sampling drilling rig
QZ-2B gasoline engine sampling drilling rig | ||
Bottom hole diameter (mm) | 32-91 | |
Drilling depth（m） | soil φ91：10-15m stoneφ91：5-10m stoneφ75：10-15m stoneφ60：15-20m stoneφ46：20-25m | |
Drilling pipe (mm) | 28 | |
Rotating speed（r/min） | 200-570 | |
Torque（n.m） | 110 | |
Gasoline engine | house power(hp） | 5 (3.5kw) |
displacement（cc） | 196 | |
Dimension（l*w*h） | 600*450*1900 | |
Weight（kg） | 90 | |
3.Configuration list of QZ-2B gasoline engine sampling drilling rig
Item | Parameter | Unit | Quantity |
Gasoline engine sampling drilling rig | QZ-2B | set | 1 |

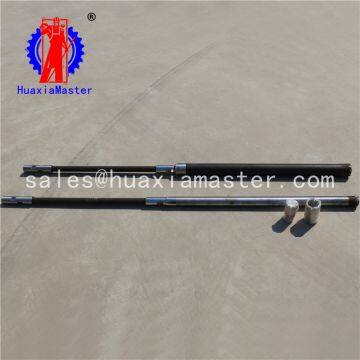

Drilling pipe | 28*1500 | pc | 6 |
Drilling pipe | 28*800 | pc | 8 |
Pipe joint | 35 | pc | 14 |
Reducing nipple | 45/35 | pc | 1 |
Core barrel | 45*800 | pc | 1 |
Alloy bit | 46 | pc | 1 |
Reducing nipple | 58/35 | pc | 1 |
Core barrel | 58*800 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Three-wing bit | 60 | pc | 1 |
Safety clamp | hold | 1 | |
Water seal | 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | ||
Oil seal | 17*50*10 | ||
Control wheel | pc | 1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
