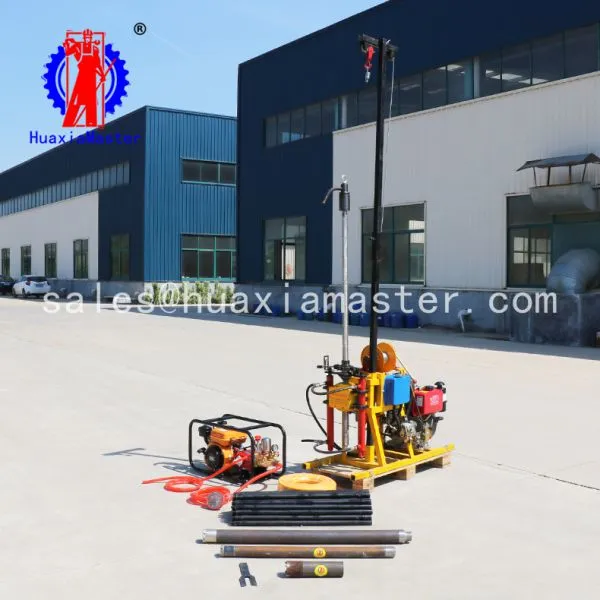

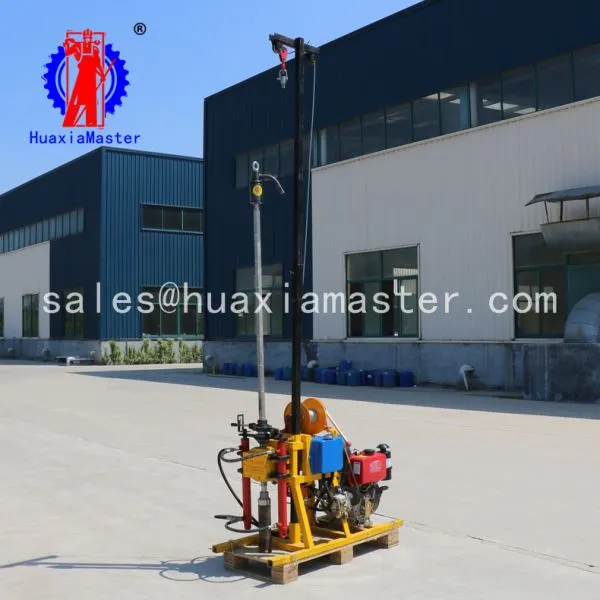

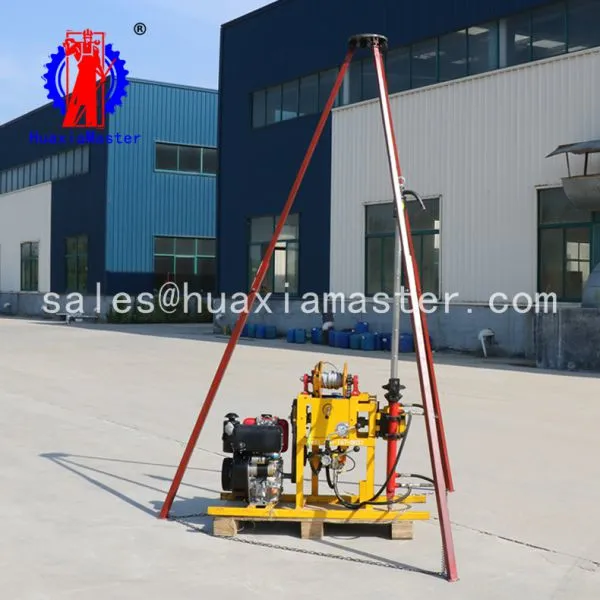

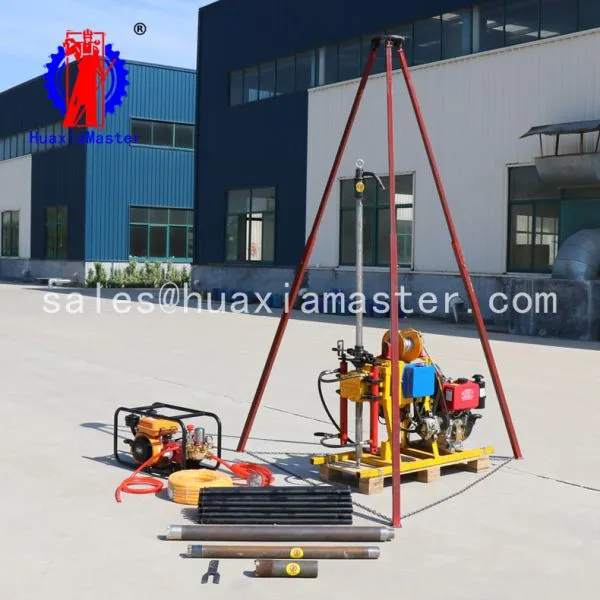

1.Brief introduction of YQZ-50B hydraulic core drilling rig
The YQZ-50B hydraulic core drilling rig with diesel engine is suitable for geological drilling in complex terrain such as mountains, hills, river courses, engineering geological investigation of buildings, drilling of blasting holes and so on. To meet the needs of different users, the rig can be equipped with one of three kinds of power : diesel engine, gasoline engine and electric motor. And the default is diesel power.
2.Features of YQZ-50B hydraulic core drilling rig
The hydraulic core drilling rig is compact in structure, small in size and light in weight. YQZ-50B hydraulic core drilling rig can also be quickly disassemble, is more convenient to transport especially suitable for mountainous and hilly complex terrain work.
Compared with similar products, the hydraulic core drilling rig is equipped with dual cylinder hydraulic feed system with high drilling speed and high efficiency.
The operation panel of this type of hydraulic core drilling rig is equipped with the pressure gauge of the bottom of the hole to indicate the pressure in the hole, and the operator can make the adjustment according to the different terrain conditions.
The hydraulic core drilling rig is equipped with a high-performance 4 gear shift system. It is convenient for operators to freely adjust the positive rotation speed according to the geological conditions. In addition, it also has an ultra slow reverse gear, which is convenient for operators to remove drill pipe drill tools.
This type of hydraulic core drilling rig is equipped with automatic hoisting and lifting system, combined with tower, which greatly saves labor intensity and improves work efficiency.
The hydraulic core drilling rig is equipped with a ball clip clamping mechanism and a six party active Drilling Pipe, which can realize the non stopping of the pole, and the efficiency is high, and the safety is reliable.
3. Technical parameters of YQZ-50B hydraulic core drilling rig
Rig host | |||
Dynamic part |
diesel engine |
||
Drill weight |
145kg |
||
Drill rig size |
1250*650*1050mm |
||
Drill pipe diameter |
32mm |
||
Borehole diameter |
46mm |
60mm |
75mm |
Borehole depth |
50-60m |
40-50m |
30-40m |
Gear box |
4 gear transmission |
||
Gyrator | |||
Gripping type |
ball ball card holding type |
||
Vertical axis type |
six prism |
||
Vertical axis to side length |
36mm |
||
Vertical axis length |
1600mm |
||
Vertical rotation speed of vertical shaft |
220/580/960rpm |
||
Reverse rotation speed of vertical axis |
130rpm |
||
Maximum output torque of vertical shaft |
210n.m |
||
Vertical shaft double oil cylinder stroke |
400mm |
||
Maximum inlet force of double oil cylinder |
7kn |
||
Maximum lifting force of double oil cylinder |
15kn |
||
Vertical shift speed |
0.035m/s |
||
Vertical axle load down speed |
0.085m/s |
||
Hydraulic system | |||
Oil pump flow rate |
10ml/r |
||
Pressure gauge pressure range |
0-6mpa |
||
Rated pressure of oil pump |
20mpa |
||
Hydraulic control valve gear position |
4 gear |
||
Maximum inlet pressure |
3mpa(450kg) |
||
Maximum lifting pressure |
4.5mpa（680kg） |
||
Hydraulic tank capacity |
4.6l |
||
Windlass | |||
Rated maximum lift weight |
500kg |
||
Mode of separation |
Manual clutch |
||
Capacity of reel wire rope |
40m |
||
Drum diameter |
60mm |
||
The length of the matched wire rope |
10m |
||
Diameter of wire rope |
8mm |
||
Rig tower | |||
Tower type |
Integrated tower |
||
Tower height |
3m |
||
Rated load of tower |
1000kg |
||
4. Configuration list of YQZ-50B hydraulic core drilling rig
Item |
Name |
Parameter |
Unit |
Number |
1 |
Hydraulic core drilling rig |
YQZ-50B |
platform |
1 |
2 |
Drill tower |
platform |
1 |
|
3 |
A wire rope |
m |
10 |
|
4 |
Inducer |
per |
1 |
|
5 |
Water tap |
per |
1 |
|
6 |
Faucet water seal |
platform |
1 |
|
7 |
Active drilling pipe |
6 Prismatic axis |
pc |
1 |
8 |
Variable diameter of active drilling pipe |
per |
1 |
|
9 |
Drilling pipe (containing hand) |
38*1000 |
pc |
30 |
10 |
Perforated tube |
75 |
pc |
1 |
11 |
Reducing nipple |
60 |
per |
1 |
12 |
Core barrel |
60 |
pc |
1 |
13 |
Alloy bit |
60 |
per |
1 |
14 |
Diamond bit |
60 |
per |
1 |
15 |
Reducing nipple |
75 |
per |
1 |
16 |
Core barrel |
75 |
pc |
1 |
17 |
Alloy bit |
75 |
per |
1 |
18 |
Diamond bit |
75 |
per |
1 |
19 |
High pressure water pump |
platform |
1 |
|
20 |
High pressure water pump water seal |
platform |
1 |
|
21 |
Water suction pipe |
pc |
1 |
|
22 |
Water absorbing filter |
1 |
||
23 |
Wet return |
pc |
1 |
|
24 |
High pressure water supply pipe |
30 |
disc |
1 |
25 |
Safety clamp |
hold |
1 |
|
26 |
Reducing nipple wrench |
hold |
2 |
|
27 |
Pipe wrench |
hold |
2 |
