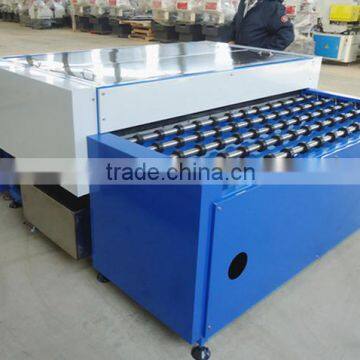

Double insulated glass machine produce line with high quality 2200 height,model:LB2200P
1.This production line adopts the most advanced IG processing technology,famous brand low voltage apparatus,sensor and PLC control with touching screen human computer interface, easy to operate, and can self diagnosis the equipment's fault with high degree of automation
2.Composed of vertical glass conveyor, vertical glass washing and drying machine, vertical glass inspection
conveyor,Aluminum frame positioning section, vertical flat press lamination machine and Tilting Table
3.Automatic recognition of coated glass and Low E glass,which ensure correct piece together
4.The washing and drying machine adopts bearing without oil lubricant and other corrosion resistant materials.Three pairs of soft brushes to avoid damage to coating layer. Frequency conversion control for brushes rotatory speed.perfect washing performance for on off line Low-E glass
5.The plate press part can be opened in large journey to max. 500mm, that easy to maintenance.The design of the plate inside and outside Type A ( inside vacuum float,back air float ) makes the glass pieces once completed the surface of plate guard through baking paint, powder coated.
Model | LB2500P | LB2200P | LB1800P | LB1600P |
Voltage | As required | As required | As required | As required |
Total power | 37.5Kw | 26.82Kw | 23.07Kw | 20.28Kw |
Max.glass size (L*H) | height≤2500mm length as require | height≤2200mm length as require | height≤1800mm length as require | height≤1600mm length as require |
Min.glass size(L*H) | 400*200mm | 400*200mm | 400*200mm | 400*200mm |
Original glass thick | 3-25mm | 3-25mm | 3-25mm | 3-25mm |
Max.thickness of insulating glass | 50mm | 50mm | 50mm | 50mm |
Working speed | Max.in washing section 12m/min | Max.in washing section 12m/min | Max.in washing section 12m/min | Max.in washing section 12m/min |
Max.in accelerator 48m/min | Max.in accelerator 48m/min | Max.in accelerator 48m/min | Max.in accelerator 48m/min | |
Conveying speed after washing | 15-45m/min | 15-45m/min | 15-45m/min | 15-45m/min |
Brushes | 3pairs(LOW-E) | 3pairs(LOW-E) | 3pairs(LOW-E) | 3pairs(LOW-E) |
Triple glass | yes | yes | yes | yes |
Dimension(L*W*H) | 24300*3800*3450mm | 22800*2800*3380mm | 15350*2200*2800mm | 12500*2000*2600mm |
Net weight(about) | 9000kg | 8000kg | 6000kg | 4500kg |
Automatic sealant robot
Two components sealant coating machine
Butyl glue extruder machine
Alu spacer cutting saw
Argon gas filling machine
