Aluminum window and door CNC cutting saw
LJZ-CNC-500×4200

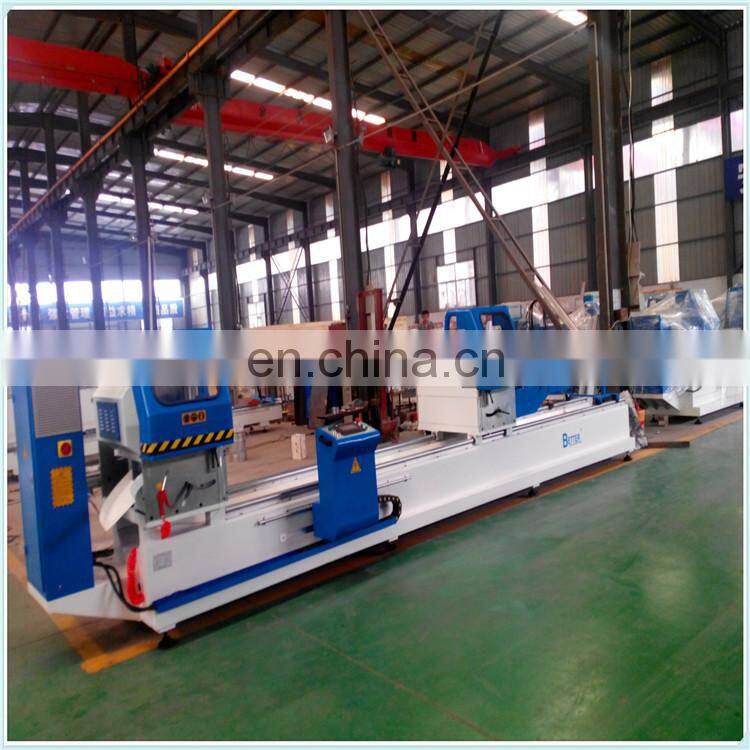

1.The total picture of the machine:

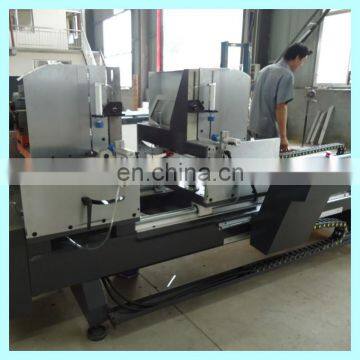

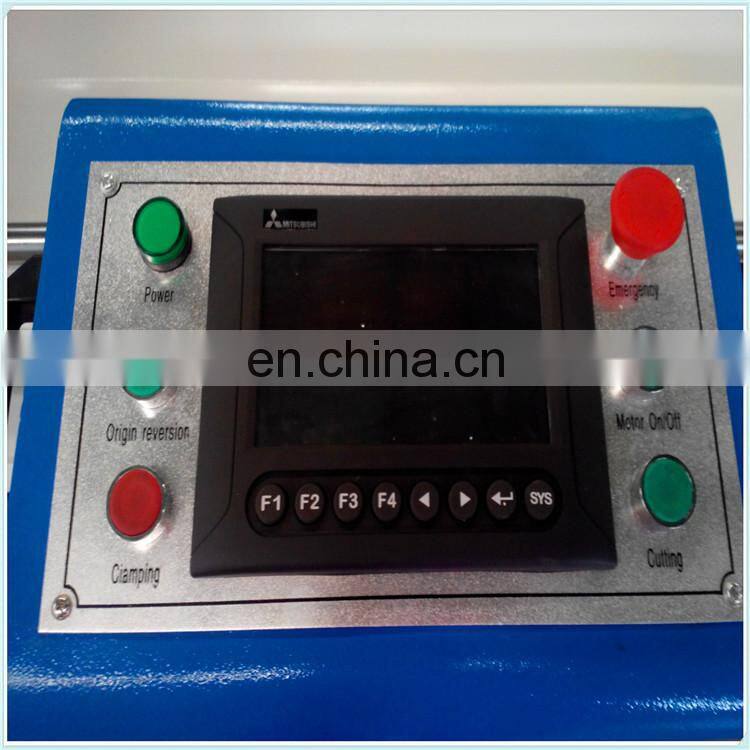

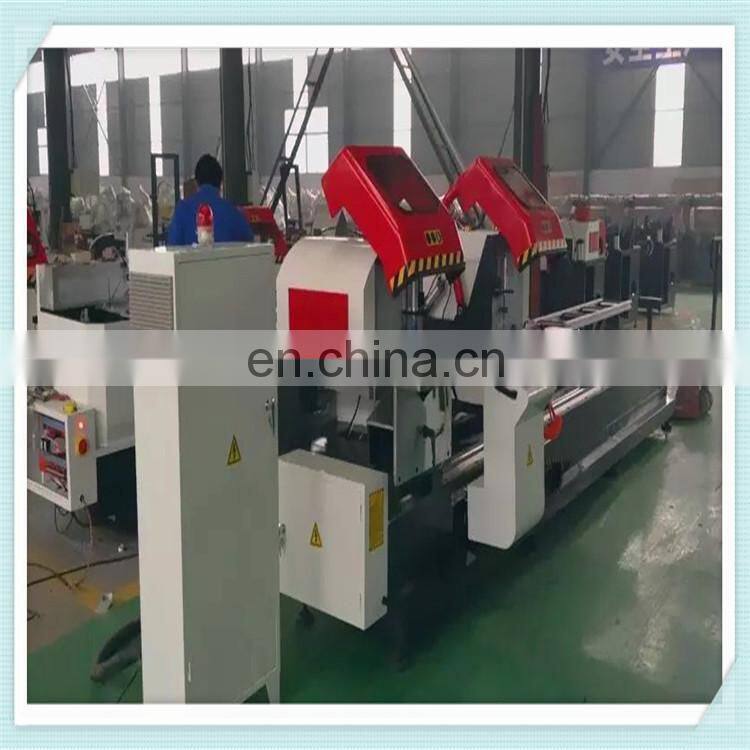

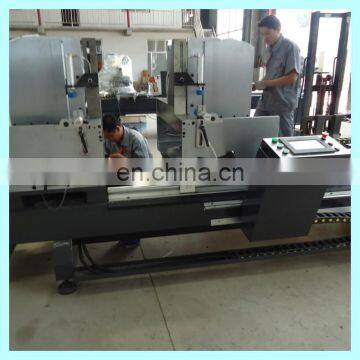

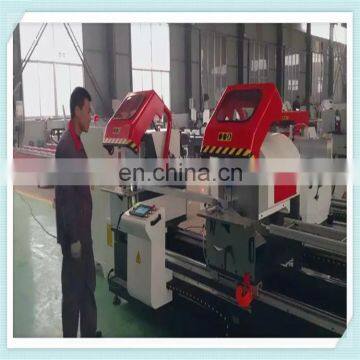

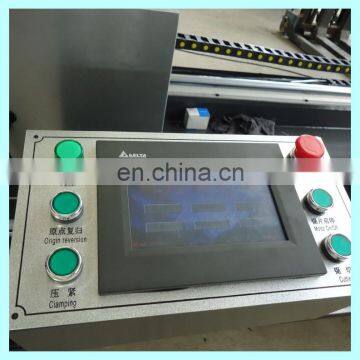

2. the detail picture of the machine
3. The new blue- white color, looks quite great, right?

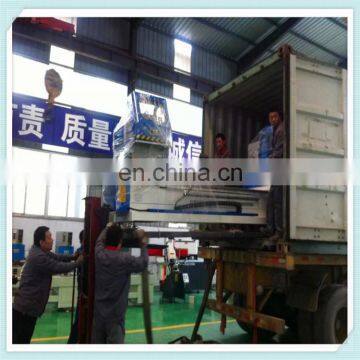

4. The machine were loading into the container...
The imported numerical control system with numerically controlled cut length ensures precise dimensions, the imported ball screw shaft drives the machine head to move horizontally with high precision of repeated positoning. A series of optimal length data can be inputted at the same time to realize continuous cutting in series, the machine adopts imported specialized saw blades for stiff alloys, imported linear guide reil pairs as cutting feed guide rails, and hydraulic damping cylinder to drive the feed of saw blades, The processing range is wide, with cut length up to 4200 mm,and cut angles of 90º,45º,22.5º,The switchover between three angles is automatic.
Model number |
LJZ-CNC-500X4200 |
Working Air Pressure |
0.4~0.6Mpa |
Power supply |
220V 50Hz |
Input power |
2.2x2kw |
Blade rotational speed |
3100rpm |
Saw blade dimension |
D=500mm,d=30mm |
Cutting angles |
90,67.5,45,22.5 |
Max. cut dimension of profile welded |
330mm |
Contour dimension |
5500x1750x1990mm |
weight |
2000kg |
