CNC Full Automatic Plastic PVC UPVC Window Door Corner Cleaning Machine

Brief description

This machine (model:JQK04-120) is used for comer cleaning of PVC/UPVC/Plastic/Vinyl doors and windows. It has the functions of digital control, pneumatic driving and mechanical technology,
with the imported digital control system, it can equip more than 100 processing procedures according to different profiles.

This model can be installed with 3 cutters, 5 cutters, 6 cutters, price is different.

So CNC corner cleaning machine, we have 3 types as following:

3 cutters CNC croner cleaning machine
Two cutters are cleaning the upper surface (or say top surface), and the other cutter is cleaning the outer corner (or say external corner), this 3 cutters CNC cleaning machine cannot clean the inner corner (or say internal corner), you can use the portable corner cleaning tools to clean the inner corner.
5 cutters CNC croner cleaning machine
Two cutters are cleaning the upper surface and the lower surface, and the other two cutters are cleaning the upper rubber strip hole and lower rubber strip hole, and the rest one cutter is cleaning the outer corner. This 5 cutters CNC cleaning machine also cannot clean the inner corner, you can use the
portable corner cleaning tools to clean the inner corner.
6 cutters CNC croner cleaning machine
Two cutters are cleaning the upper surface and the lower surface, and the other two cutters are cleaning the upper rubber strip hole and lower rubber strip hole, and the rest two cutters are cleaning the outer corner and inner corner, 6 cutters CNC corner cleaning machine more function than the 3 cutters type and 5 cutters type.

Features

1).High-precision linear motion ensure the nose (cut head) mobile self-locking, good appearance generous with the international step.
2).Authentic brand of electrical element, bearings, saw blade(also say milling cutters or cleaning cutters), pneumatic components, guarantee different part of equipment long-term reliability and stability without failure.
3).This machine has features of easy adjustment and high automation, it is an ideal equipment for large scale and continuous and various profiles.
4).For profile welding seam cleaning, high processing precision due to size error compensation function.
5).Imported servo-drive system, computer control system, and so on, ensured reliable performance and long using life.

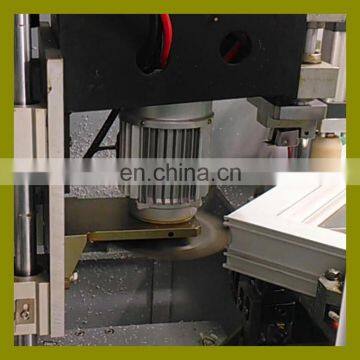

6).It can clean outside vertical surface(also say external corner), up/bottom welding seam surface, internal bevel section, seam in the track of the sliding profile, rubber seam groove part and so on, easy programming with monitoring system.
7).It used the most advanced LCD touch screen, a computer interface menu shows, working monitor, touching screen, convenient operation, adjust the cutters can finish simultaneously with the program.
8).The programming is flexible and reliable. Main parts are imported originally, which can ensure guarantee the operation reliability.
9).The touching screen can show you the working situation, which can easy the operators to test problem. The machine has the problem protection system and the alarm device, specially equipped with power-off protection function.
10).Within 25 seconds finish one corner complete cleaning.

Advantages

1).It is easy to learn because there is no specialized programming language, and the adjusting of cutter and programming completes at the same time, which make the programming flexible and reliable.
2).The main control parts are all imported with original packing to ensure the reliability of its operation to the utmost.
3).The system will automatically protect itself, and show the reasons of alarm and its solutions if any fault appears.
4).Any people with a little knowledge of door and window can master its operation and programming in the shortest time.
5).The system interface shows running state and important information of the machine at all times to help the operator know the condition of the machine and avoid mistake.
6).The machine has the features of novel compact structure, beautiful shape, reasonable layout, stable performance, safe and reliable, easy operation, convenient maintenance, high precision, high efficiency, and so on.
7).Customers can select any one of them according to demands of the work. In the processing state, place the work piece, then corner clearing will be completed automatically. It is easy and convenient to operate.

Friendly note
We have new type Model JQK04-120 and common type Model JQK04-120.

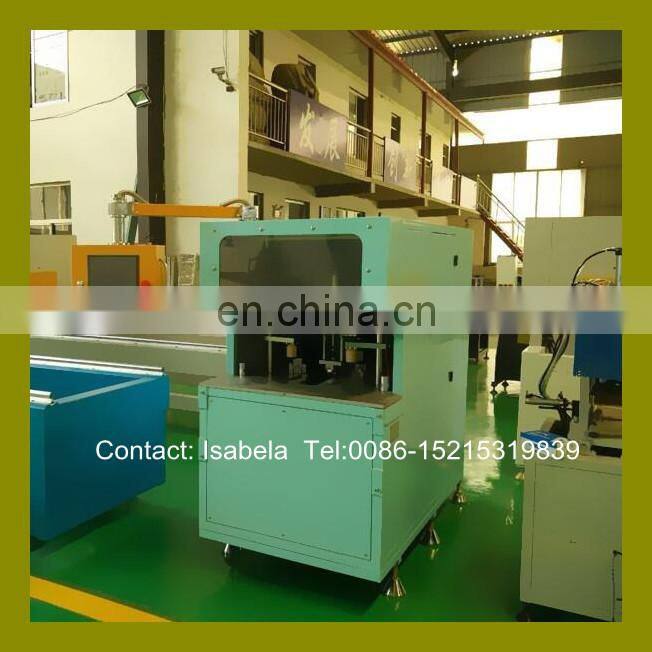

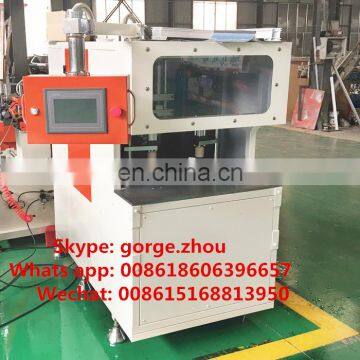

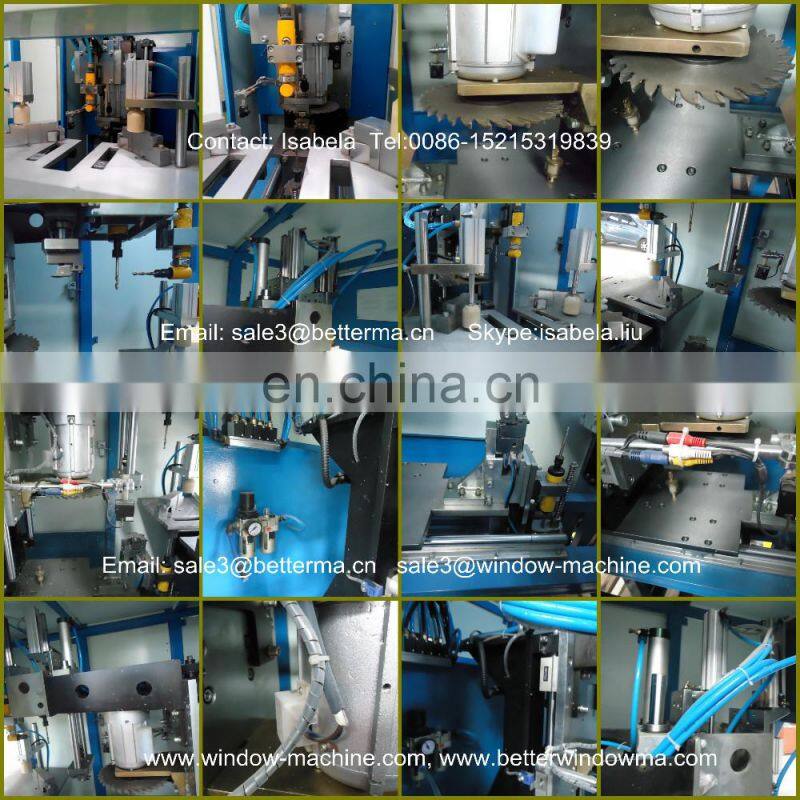

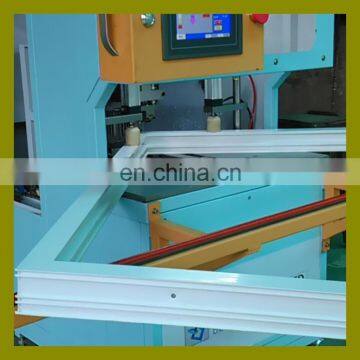

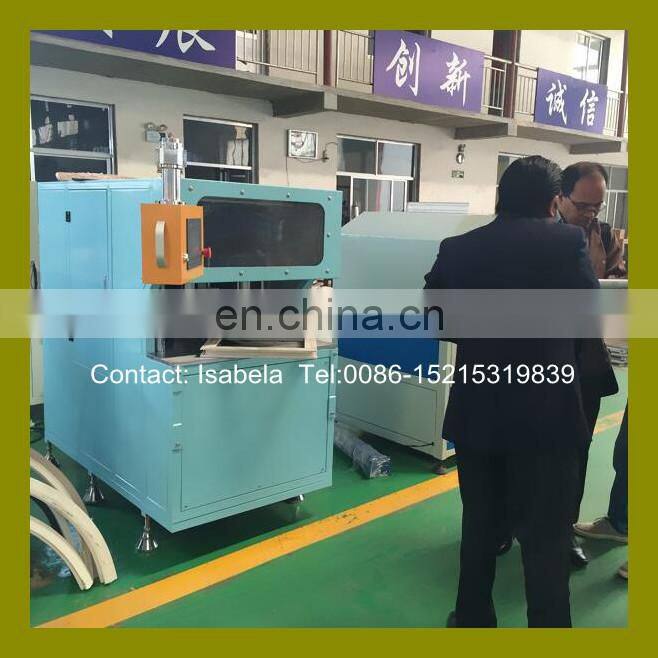

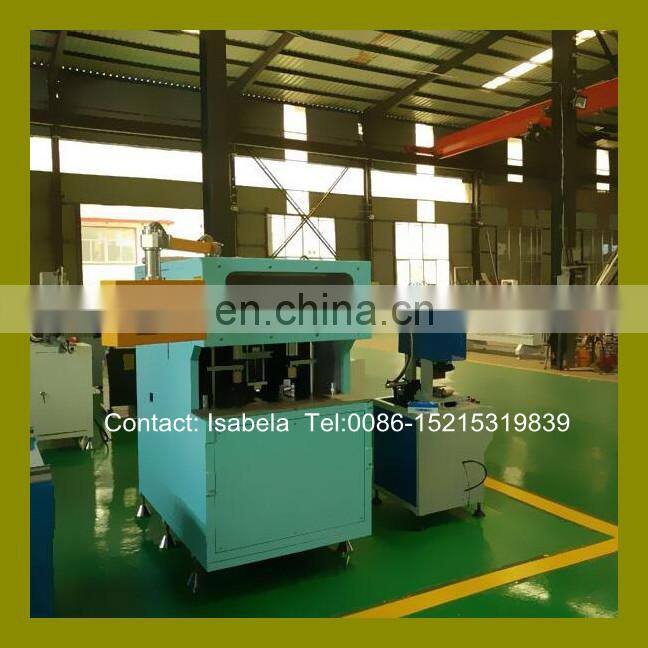

New type Model JQK04-120 pictures

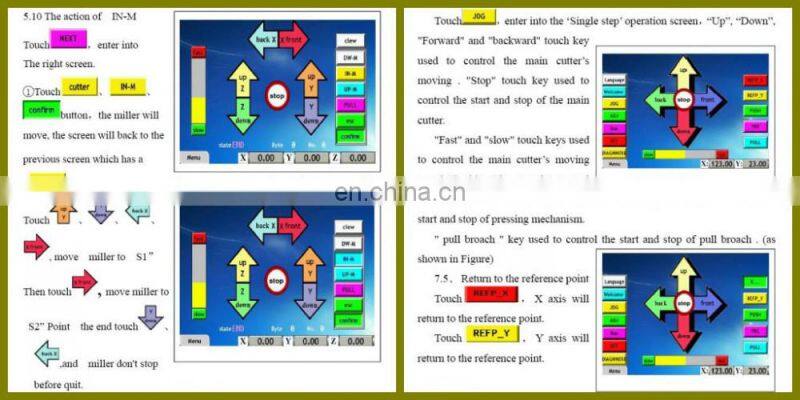

We have detailed English manual, guide customer to operate machine step by step

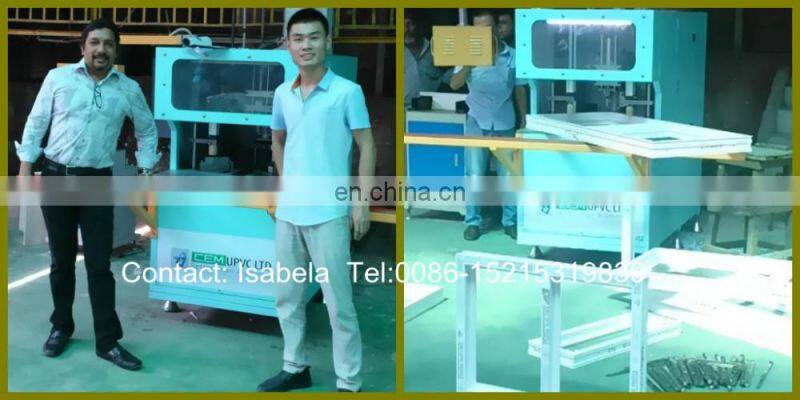

New type Model JQK04-120 in our oversea customer workshop showing

Friendly note:

Showing our CNC corner cleaning machine in foreign customer workshop for your reference, if you require we make machine with your company brand like our this customer, it is no problem.

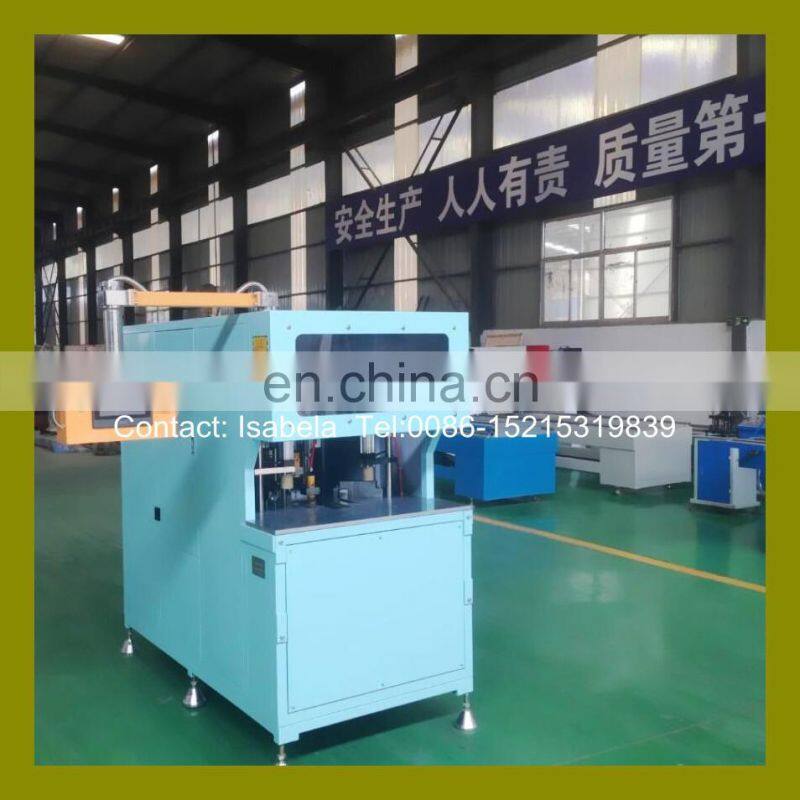

Common type Model JQK04-120 pictures

Friendly note:

Here this common type model JQK04-120 just outer appearance is different with the new type model JQK04-120, the common type operation touching sceen is installed fixedly in the machine, the new type model operation touching screen is installed separately, customer can use hand to move the operation touching screen to any position according to needs, but the price of two types is same, function is same.

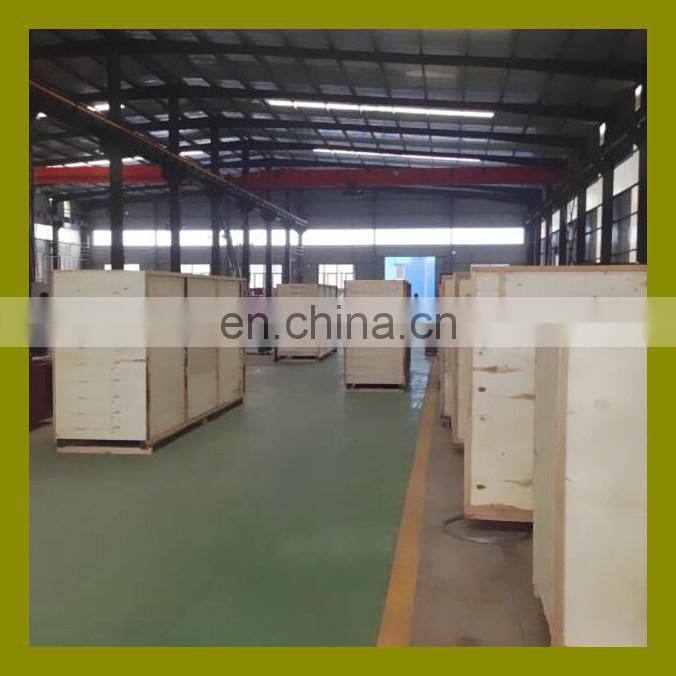

Our company workshop and machines certificates

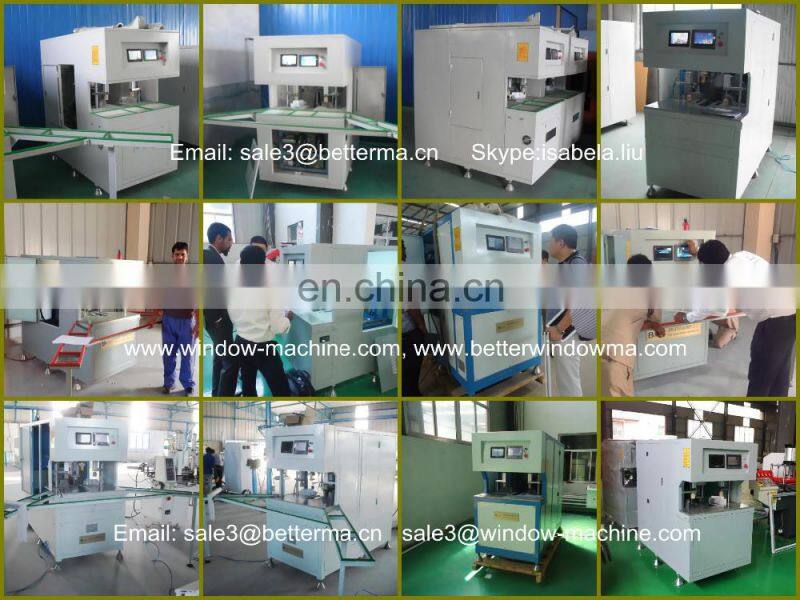

Our machines in foreign customer workshop pictures
