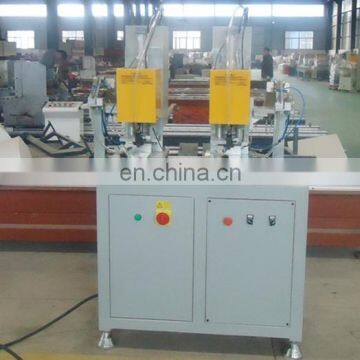

PVC profile double head UPVC window corner welding machine,model:WFHJ02-3500.2/2A
This machine is used for welding colored PVC/UPVC window and door.can strictly make seamless welding.Through program control system, it can guarantee high welding strength and quality in various environments;it can also conduct quantitative adjustment according to digital parameters.The cutter features good exchangeable.The cutter adopts special material,via special heat-treatment processing technics and high accuracy.
Integrative window support welding.uses eight cutting tools to weld and clear corners and seams. perfect
welding surface and high welding strength.Digital prevention of material loss.
Power supply | As required |
Input power | 4 kw |
Welding length | 420~3500mm |
Welding profile height | 10~100 or 150mm |
Welding profile width | ≤120mm |
Welding mullion width | ≤120mm |
Operation air pressure | 0.6 ~ 0.8Mpa |
Humidity | ≤80% (no dew) |
Contour dimension(L×W×H) | 5600×1050×1800mm |
Temperature | -5~+40 |
Machine weight(about) | 2000kg |
Double head / single head cutting saw
One / two / three / four head---normal & seamless welding
CNC four corner welder / high welder / cross welder
Lock hole milling machine,Water slot milling machine
V notch saw,glazing bead cutting saw,Arc bender,steel reinforcement screw fix machine
