Double Miter Saw for Aluminum and UPVC Profile-UPVC Door Window Profile Cutting Saw
Double-head Precision Cutting Saw for Door and Window Making
1. Product Description
1). The machine adopts main spindle of saw blades manufactured by the specialized manufacturer of the main spindle of machining centre;
2). imported linear guide rail pairs as cutting feed guide ralis; imported linear bearing motional pair to move the machine head horizontally;

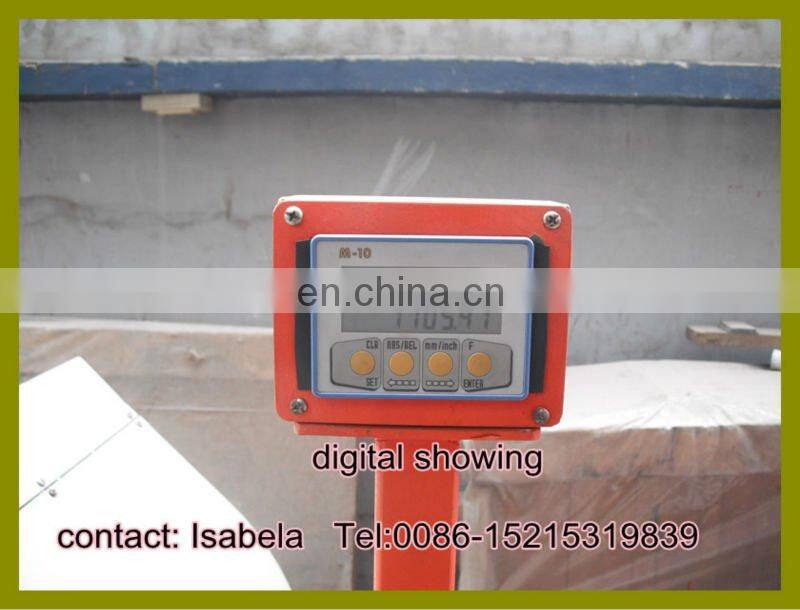

3). hydraulic damping cyinder to drive the feed of saw blades the processing range is wide, with cut length up to 4200mm and cut angles of 90° ,45°,22.5°.the machine adopts digital appearance to show the cutting length and the other parameter.
4).It can cut both PVC and Aluminum Profile.
5).If your production scale is large, you can consider to buy this model.
2.Technical parameters
Model number |
LJZY-500*4200 |
Operation air pressure |
0.4~0.6Mpa |
Power supply |
380V 50Hz |
Cutting motor power |
2.2kw×2 |
Blade rotational speed |
3100 r/min |
Saw blade specification |
D=500mm d=30mm |
Cutting length |
Min380mm Max4200mm |
Cutting angles |
90°,45°,22.5°,67.5° |
Contour dimension(L×W×H) |
5500×1750×1990mm |
Machine weight(about) |
1800kg |

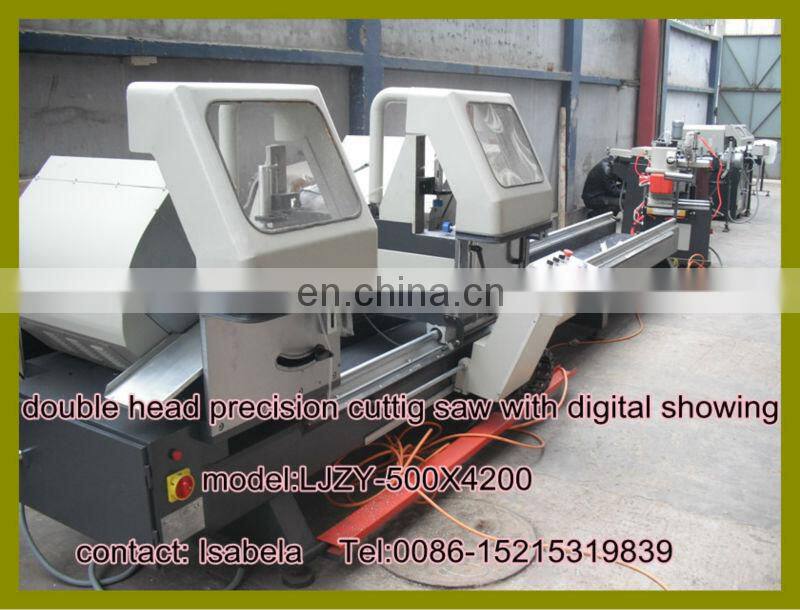

3.photos of model LJZY-500*4200 in our workshop

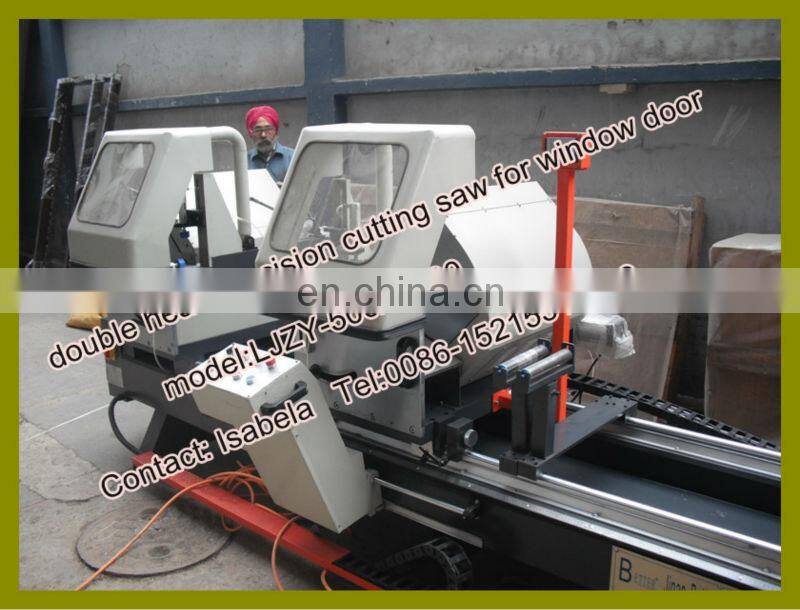

4.The model LJZT-500*4200 in our India customer factory

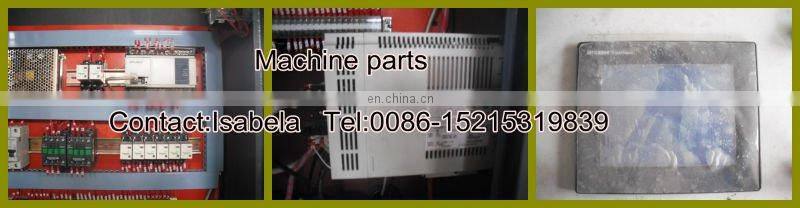

5. model LJZY-500*4200 Machine part
6.Kindly note
Here if you donot hope the dust so much in the production, you can buy a this dust collector to reduce the dust.

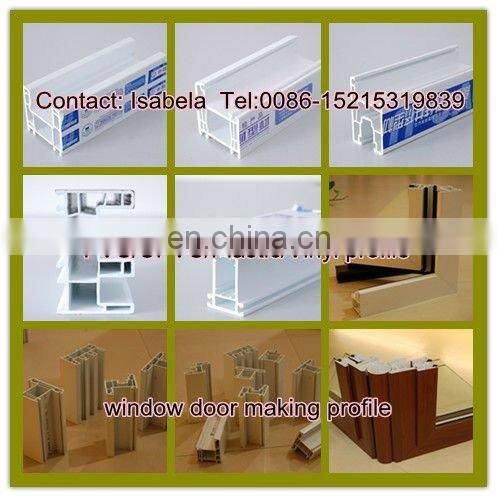

7.Processed PVC and Aluminum window door profile
1). PVC window door profile
2). Aluminum window door profile
In the above processing,you can choose the model LJZY-500*4200 as the profile cutting saw.
8.Other window door profile cutting saw models
1).Single head cutting saw, model:DSJ02

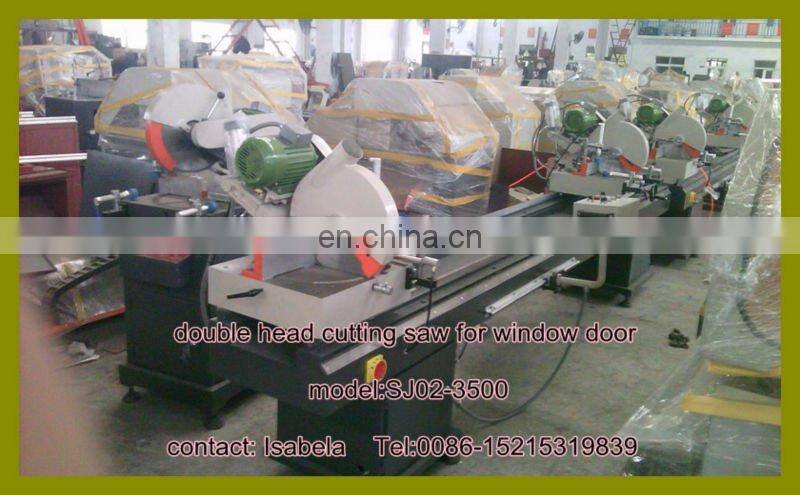

2).Double head cutting saw, model:SJ02-3500
3).Double head cutting saw,model:LJZ2-450*3700

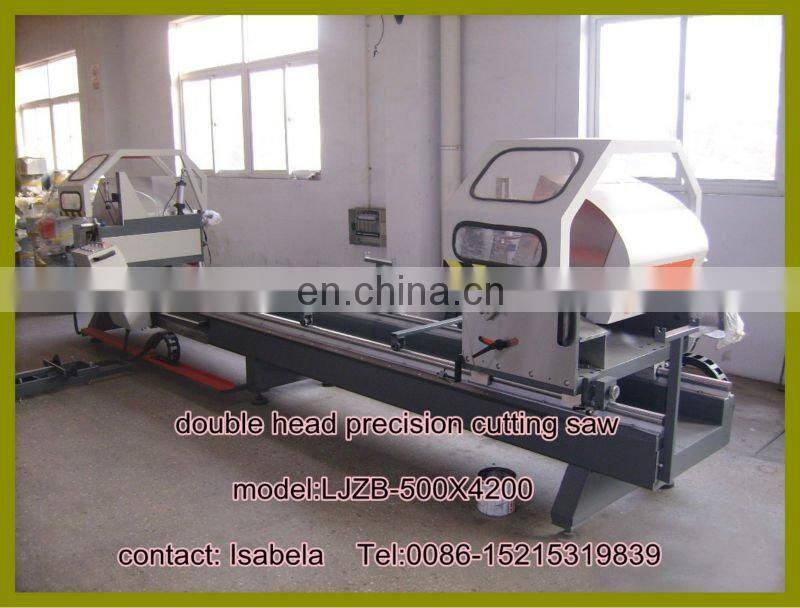

4).Aluminum profile double head precision cutting saw,model:LJZB-500*4200

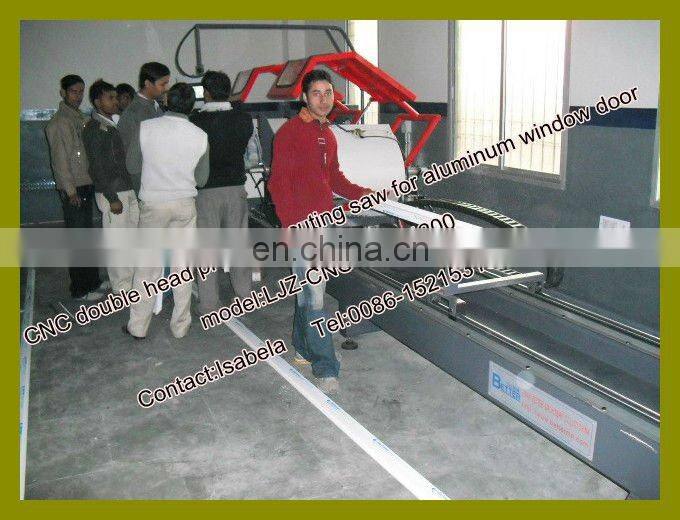

5). CNC Aluminum profile double head precision cutting saw,model:LJZ-CNC-500*4200
If you want to make window door, you need to buy the machines, and also need to buy the window door hardware,such as locks, handles , hinges etc... , these are all necessary for your window door product production, we only make the window door machines, we donot make hardware , but I know some hardware suppliers, if you need my help, I can supply you these suppliers information, you can contact them directly to buy the hardware.
hardware sample as following
