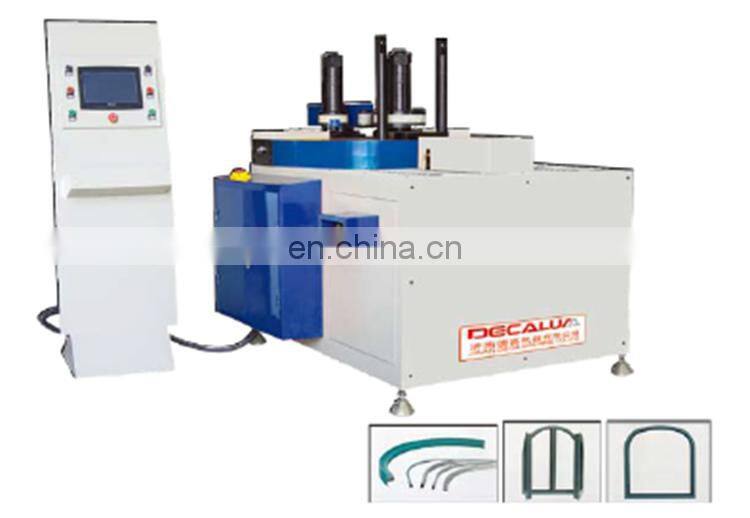

Aluminum profile cnc arch bending machine
Specification:
1.This machine is mainly used for bending metal material such as iron, copper, aluminum and special-shaped material.
2. This machine equipped with three driving rolls, which can avoid sliding for profile.
3. The maximum hydraulic pressure can be up to 20 tons, which can easily bending all kinds of aluminum profiles and window and doors frame(square steel tube)
4. All profiles can be bended at once, high efficiency, no wear and tear; can also be used as many times as required.
5. Three sets of driving rollers are controlled by CNC device, which can move smoothly and realize precision positioning.The positioning precision is +-0.02mm
6. The distance between rollers can be customized and adjusted.
7. This machine is placed horizontally that can be suitable for different size and weight profile.It can be controlled manually and automatically.
8. Each procedure can set different feeding speed, which greatly enhances material quality and meet productivity requirement.
9. The mould is simple and useful and can bend Radius 250mm aluminum profile, which cannot produce distortion.
Technical Parameter
Made to order | |
Import power | 4.5Kw |
Operation air pressure | 0.5~0.8Mpa |
Air consumption | 0.04m³/min |
16MPa | |
Pressure | 15tons |
Max. Diameter | No limitation |
Min. Diameter | 400mm |
Max. Thickness | For aluminum no limitation |
300*240mm | |
Exterior dimension | 1800*1600*1600mm |
Weight | 800kg |
