Calcium carbonate grinding mill with high quality
- 100 Set / Sets per Month
- Qingdao,Tianjin or others port
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Brand Name: | Shuguang | Place of Origin: | China | Type: | Universal |
Certification: | ISO,CE | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 3T-48T |
Dimension(L*W*H): | Min: 4300*3500*5100 Max: 11450*7610*9906 | Voltage: | 220V/380V | Condition: | New |
Power(W): | According to model | CNC or Not: | Normal | Max. Grinding Length: | According to model |
Max. Grinding Diameter: | According to model |
Product Description
Calcium carbonate grinding mill is for super-fine grinding materials with hardness less than 6 in Moh‘s scale and humidity less than 6 percent such as kaolin, limestone, basalt, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds.
Calcium carbonate grinding mill, the granularity (or final size) of the finished products can be freely adjusted between 500-2500meshes (0.025-0.005mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H depending on the final size and the grinding materials.
Detailed Data
Type | unite | 7826 | 8327 | 8630 | 9732 |
Roller number | a | 3 | 3 | 3 | 4 |
Roller diameter | mm | Ø260 | Ø270 | Ø300 | Ø320 |
Grinding ring inner diameter | mm | Ø780 | Ø830 | Ø860 | Ø970 |
Main engine speed | R/min | 160 | 160 | 155 | 140 |
Max. Feeding size | mm | <20 | <20 | <20 | <25 |
output | T/h | 0.25-2 | 0.3-3 | 1-4 | 2-7 |
Main engine motor type | kw | Y225S-8-18.5 | Y225M-8-22 | Y225M-8-22 | Y225S-8-37 |
Fan Motor Type | kw | Y160L-4-15 | Y180M-4-18.5 | Y180M-4-18.5 | Y200L-4-30 |
Analysis Machine Motor Type | kw | YCT1604B-2.2 | YCT160-4B-3 | YCT160-4B-3 | YCT200-4A-5.5 |
Total power | kw | 37.5 | 44.5 | 44.5 | 72.5 |
Length*width*height | m | 4.5*4.2*5.1 | 5.3*4.1*5.2 | 5.5*4.5*5.6 | 7.1*5.9*7.9 |
weight | t | 3.6 | 4.0 | 4.5 | 11.5 |
Fineness | mesh | 500-2500 | 500-2500 | 500-2500 | 500-2500 |

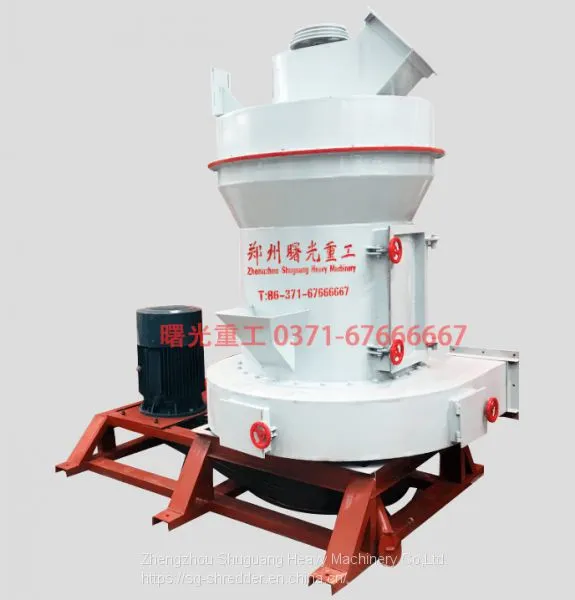

Detailed Images
