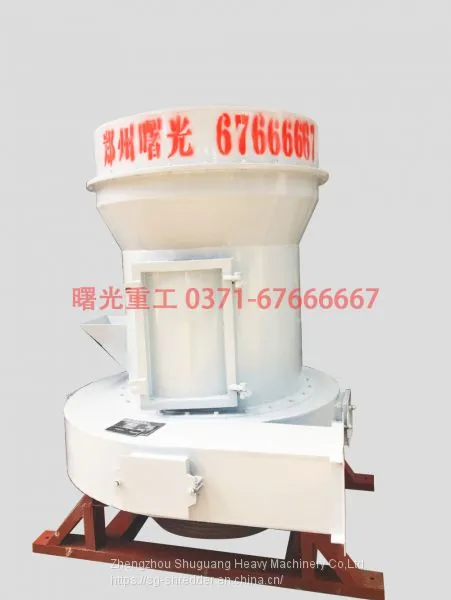

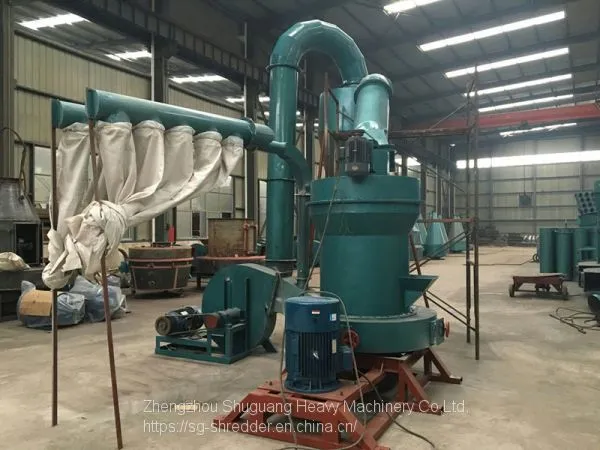

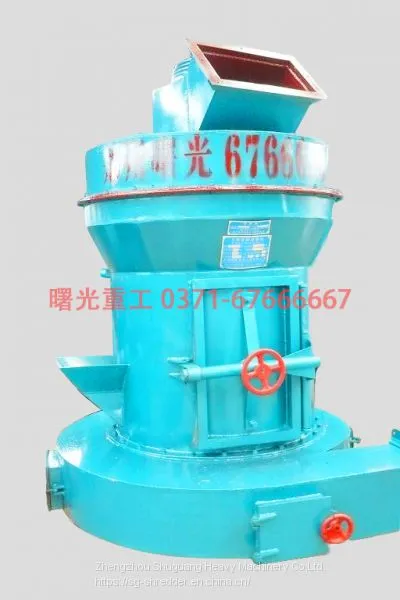

Grinding Machine for Mining
US$ 1000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shuguang
Place of Origin:
China
Type:
Raymond Mill
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,Tianjin or others port
Delivery Detail:
30 days
Related Products
-
Raymond Roller Grinding Mill for SaleUS$ 5000 - 50000MOQ: 1 Set -
Good Quality Ceramic Ball Mill Machine PricesUS$ 1000 - 10000MOQ: 1 Set
-
Energy Saving Gold Mining Wet Ball Grinding MillUS$ 1000 - 10000MOQ: 1 Set
-
Energy Saving Small Horizontal Cement Ball Mill StonesUS$ 1000 - 10000MOQ: 1 Set
-
Hot-sell Grinding Quartz Gold Ore Ball Mill for SaleUS$ 1000 - 10000MOQ: 1 Set
Brand Name
Shuguang
Place of Origin
China
Type
Raymond Mill
Certification
ISO,CE
After-sales Service Provided
Overseas service center available
Warranty
12 months
Weight
1.5 - 14T
Dimension(L*W*H)
13.9*4*6.2
Condition
New
Power(W)
According to model
Motor Type
AC Motor
Capacity(t/h)
According to model
Grinding Mill has been widely used in the processing of non-metallic minerals. But the application of nonmetallic minerals in the ultrafine powder of extensive development, downstream enterprises more and more high to the requirement of non-metallic minerals, especially for product fineness had the higher request, make the traditional Grinding Mill ragged. For our traditional Grinding machine is carried on the thorough analysis and research, to solve the traditional Grinding Mill of frequent maintenance and high maintenance cost, Grinding fineness is not up to standard, and many other fatal defects, and developed a set of crushing, Grinding, greatly enhanced in the integration of new type superfine Grinding Mill. Because of its high efficiency, low energy consumption, greatly enhanced, cover an area of an area small, less investment and environmental pollution-free advantages and are widely used in metallurgy, building materials, chemical industry, mines and other minerals in the field of grinding materials processing, suitable for processing mohs hardness under seven, humidity under 6% of all kinds of inflammable and explosive minerals, such as gypsum, talc, calcite, limestone, marble, potassium feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, iron oxide red, iron ore, etc.
Detailed Data
| Model | 7826 | 8327 | 8630 | 9732 |
| Roller Number | 3 | 3 | 3 | 4 |
| Feeding size(MM) | ≤20 | ≤20 | ≤25 | ≤25 |
| Final size (MM) | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 |
| Output (T/H) |
0.25-2 | 0.3-3 | 1-5 | 2-8 |
| Speed (R/M) | 160 | 160 | 155 | 130 |
| Diameter of ring(MM) | 780 | 830 | 860 | 970 |
| Diameterof roller(MM) |
260 | 270 | 300 | 320 |
| Height of roler(MM) | 150 | 150 | 160 | 160 |
| Main motor (KW) |
y225s- 8-18.5 |
y225m- 8-22 |
y225m- 8-22 |
y225s- 4-37 |
| Fan motor (KW) | y160L- 4-15 |
y160L- 4-18.5 |
y200L- 4-18.5 |
y200L- 4-30 |
| Anlysis motor(KW) | y112m- 6-2.2 |
y112m- 6-3 |
y112m- 6-3 |
yc120- 4-5.5 |
| Otal Power (KW) |
35.7 | 43.5 | 43.5 | 72.5 |
| Imensions L*W*H(M) |
4.5*4.2*5.1 | 5.3*4.1*5.2 | 5.5*4.5*5.6 | 7.1*5.9*7.9 |
| Weight(T) | 3.6 | 4 | 4.5 | 11.5 |
| Inished size(MM)500 orders(0.025mm) - 1250 orders(0.01mm) the smallest 2500 orders(0.005mm) | ||||
Main Features
1. Unique design. In the grinding chamber of the host machine, a 1500kg-2000kg pressurizing device is designed in the upper part of the canopy. Under the same power, the output is increased by 10-30%. The grinding pressure of the grinding device is increased by 800-1500kgf. The fineness of the finished product can be the finest. Up to 1000 mesh.
2. It has strong applicability to various materials with Mohs hardness of 9.3 or less.
3. The dust removal effect completely meets the national standard.
4. The roller device adopts high-quality and high-efficiency processing technology. The overlapping multi-stage seal ensures a good sealing effect.
5. The grinding roller and grinding ring have a long replacement cycle, eliminating the shortcomings of short replacement cycle of the consumable parts of the centrifugal crusher.
6. The grinding device adopts overlapping multi-stage sealing and has good sealing performance.
