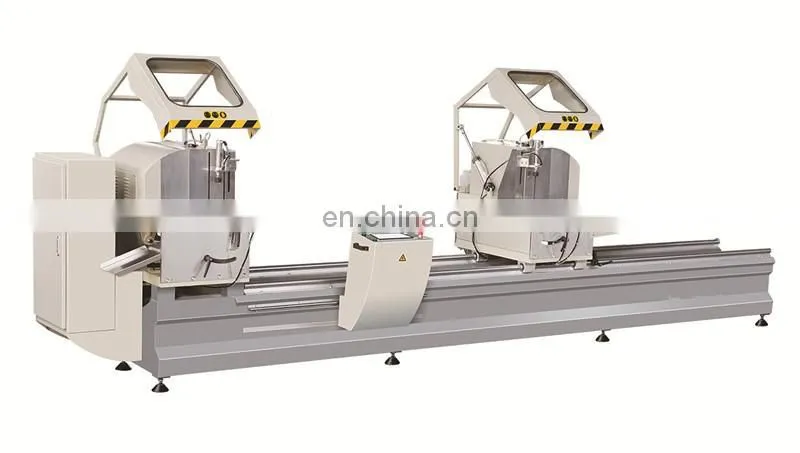

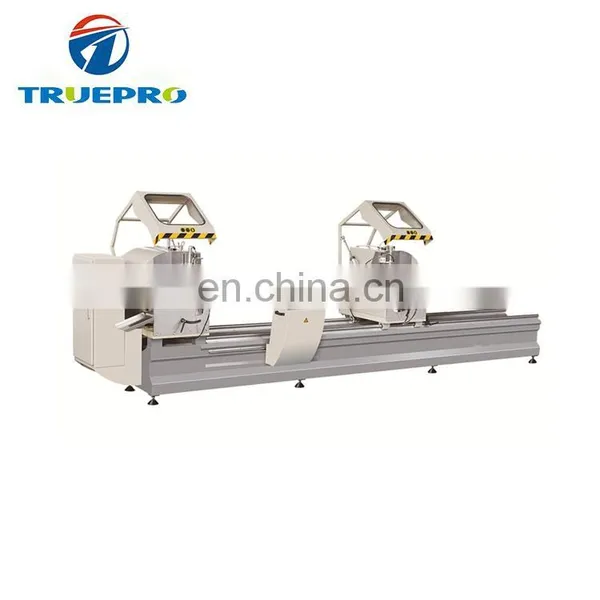

Double head aluminum extrusion CNC cutting saw

Name: Double head aluminum extrusion CNC cutting saw
Brand: Truepro
Price: USD $5,280 - 12,962 / Set

FOB Price

USD $5,280 - $12,962 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Truepro

Product Description

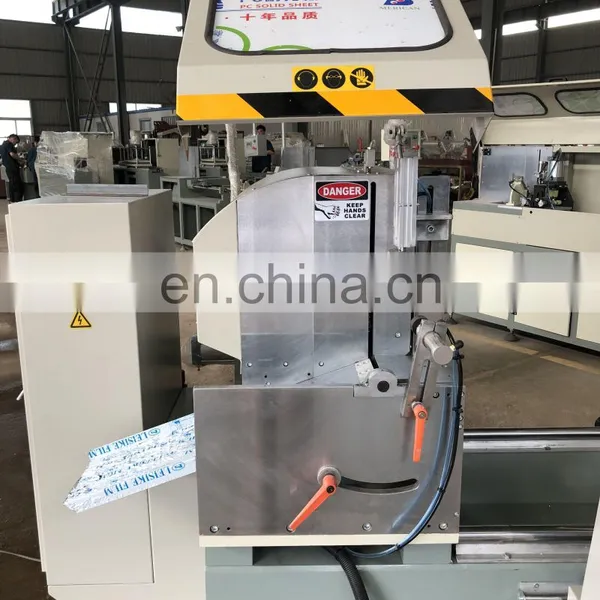

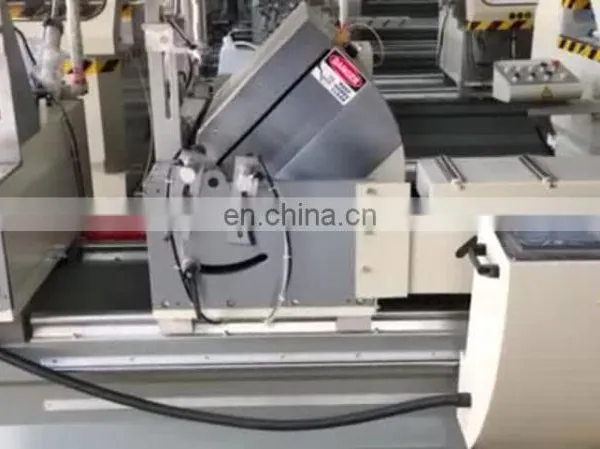

Double head aluminum extrusion CNC cutting saw

Mahicne feature:

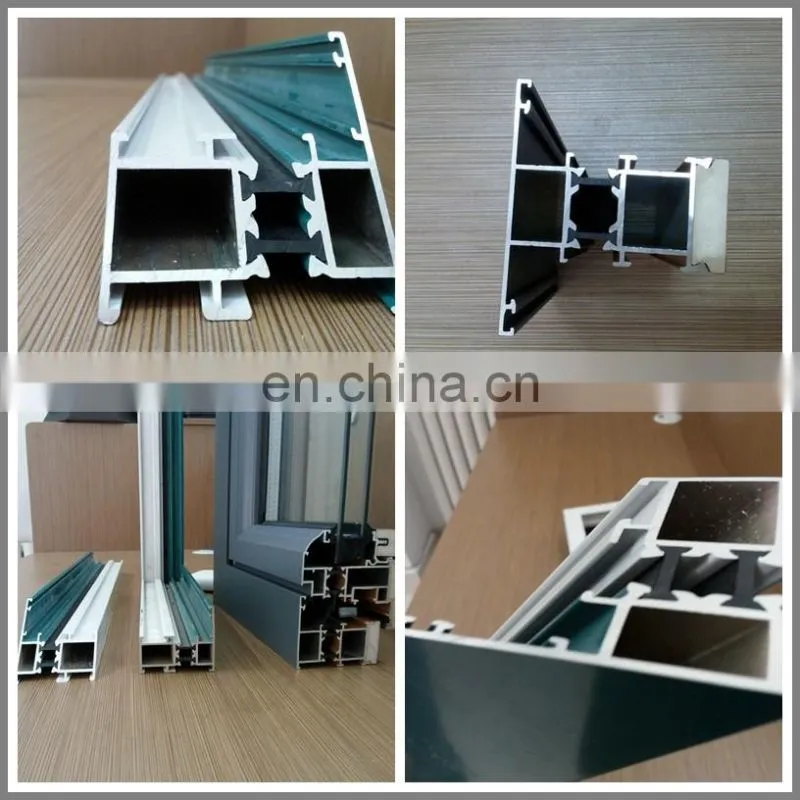

1. For cutting Aluminum profile.
2. The feeding system adopts imported linear guide pair, with high accuracy and stability.
3. Auto 45°and 90°cutting change
4. Imported linear guiding pair ensured steady processing accuracy.
5. Saw blade rotates smoothly due to high accuracy spindle.
6. Hydraulic feeding systems ensure precise and stable feeding.
7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
8. Carbide saw blade is of accurate processing and high efficiency.

9. Two heads can work together or single, when together work, one time can cut off the required length and angle1. Grade: Parameter:

Power supply	3N~50Hz 380/220V or As Customer Specification
Cutting motor power	5.9KW
Cutting motor rotary speed	2800r/min
Operation air pressure	0.5~0.8MPa
Air consumption	60L/min
Blade specification	ø500×ø30×4.4×Z120
Cutting speed	stepless speed regulation0~3m/min
Max. cutting length	4200 mm
Min. cutting length	400 mm
Cutting width	max 135mm
Cutting height	900 : max 300mm 450: max 200mm
Cutting angle	90°,45°
Repeat locating length tolerance	±0.2mm
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5′
Cutting profile surface roughness	Ra12.5µm
Contour dimension	5700 mm×1650mm×1500mm
Weight	2100g

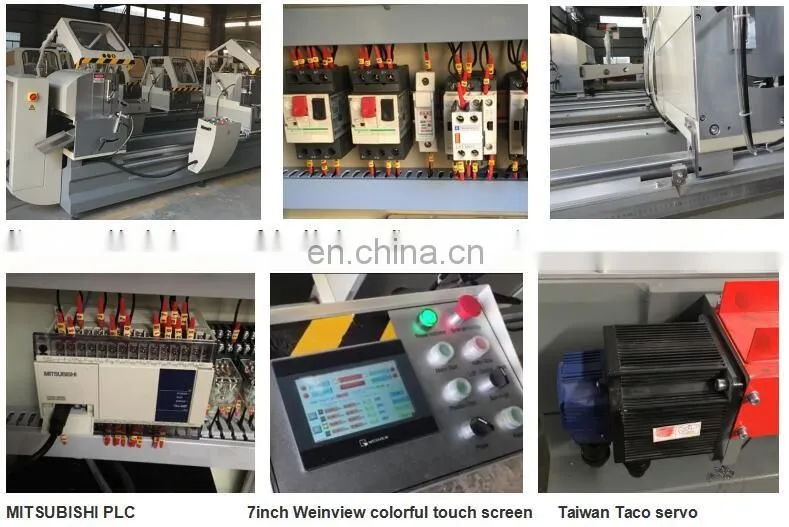

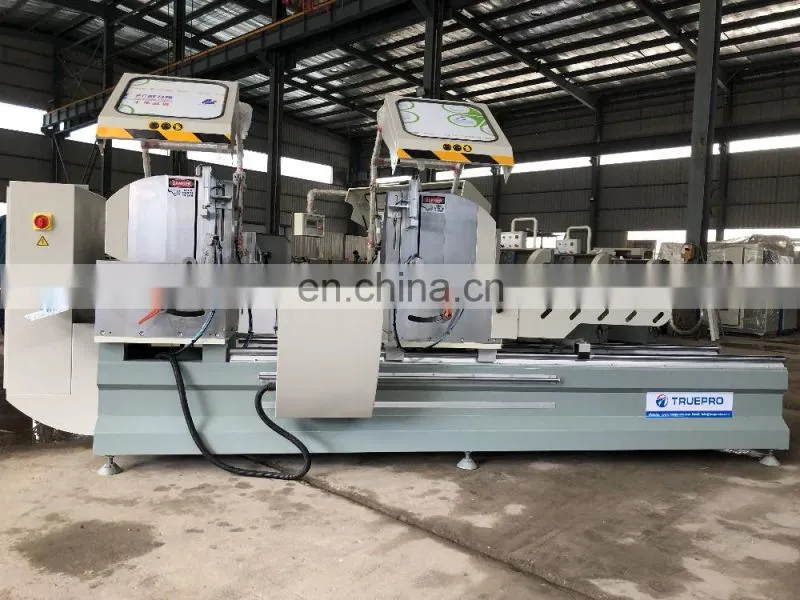

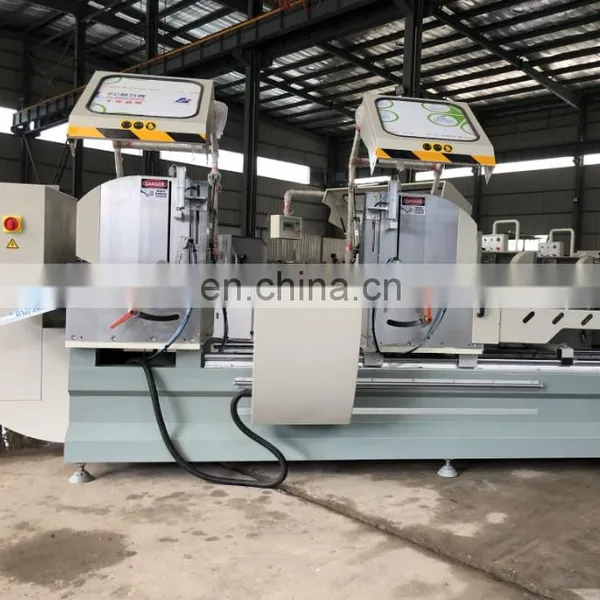

Double head cutting machine

Precision double head cutting saw

Double head CNC cutting saw

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.

Packing & Delivery

Our Service

Pre-sale service

●Free contact for the most suitable machine
●Free professional design for each customer especially.

After sale service

●24 hours technical support by phone, email or skype
●1years warranty period
●Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

Payment

●L/C, 30% deposit by T/T,70% spare payment L/C.
●T/T, 30% deposit by T/T,70% spare payment before shipment.
●Western Union or Paypal.
●Alibaba trade assurance , which will protect your money in safe and ensure our quality.

Our Company

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.

FAQ

1. When can we arrange shippment?

We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
