window door frame 4 axis end milling aluminum window machine factory
Product Application aluminum window machine factory
--applicable to all kinds of profile end, step surface forming
--This machine is mobile profile, that is moving stable, and the tool does not move;
--Tool can be regulated up and down, the adjustment adapt to different shapes and sizes of processing;
--Feed system is controlled by hydro-pneumatic damping device, stable and reliable;
--The whole structure is compact, easy to operate, large processing range, can process multiple profiles
at the same time, high production efficiency.
Main Specification aluminum window machine factory
1) Input power: 380V 50Hz
2) Power: 3kW × 4
3) Motor speed: 2840r / min
4) Air supply pressure: 0.5-0 .8 MPa
5) Spindle diameter: Φ30
6) Cutter diameter: Φ160 / Φ300
7) Table feed stroke: 0-1125
8) Table size: 510 × 370 mm
9) Tool adjustment stroke: 0-80
10) Open the maximum depth of mortise size: 55mm
11) Cutting the maximum vertical height of the step surface: 68mm
12) Dimensions: 2800 × 1700 × 1800
13) Weight: 750Kg
End Milling Precision aluminum window machine factory
1) Cutting surface perpendicularity 0.2 mm (100X100 mm section)
2) Cutting surface flatness 0.2 mm (100X100 mm section)
3) Cutting surface roughness Ra12.5 μm

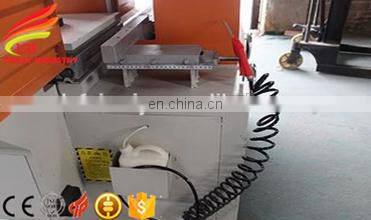

REMOVABLE

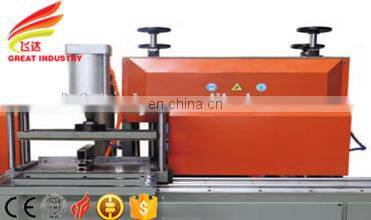

GOOD STRUCTURE

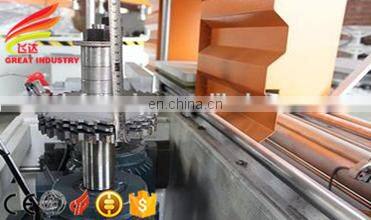

GOOD END CUTTER
PERFECT MILLING
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine
* Training how to use the machine.
* Engineers available to service machinery overseas.
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
A: Double head cutting saw ,Lock hole copy milling machine,End milling machine,
Automatic Corner connector automatic cutting saw,Single head Corner Crimping machine.
Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed.
we will suggest the most suitable machine and professional solution.
Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare.
We will send you the English version user manual and install video which shows how to
assamble and use the machine clearly, almost all the customers can operate the machine
easily.
Don't worry about this. FEIDA will always be here to help!
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
But in case you have any problem, our professional after-service team will provide you any
support you need any time!
B: We can send you free components to you if your machines are in guarantee time.
C: We can send our engineers to repair your machines.
Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other
different machines.
Q: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit, but customized machines should be
more than 25 days.
Q: What services can provide in your company?
A: Two years guarantee
B: Free adjustment
C: Free training to operation and maintenance workers.
D: Free industrial information
E: Free investment analysis for windows, doors and curtain wall project.
F: Free layout design for windows,doors and curtain wall production lines.
G: Provide follow-up service, regular maintenance and lifetime service for our machines sold.
H: Provide technical support including pressure design and caculation for window and curtain
wall companies.
