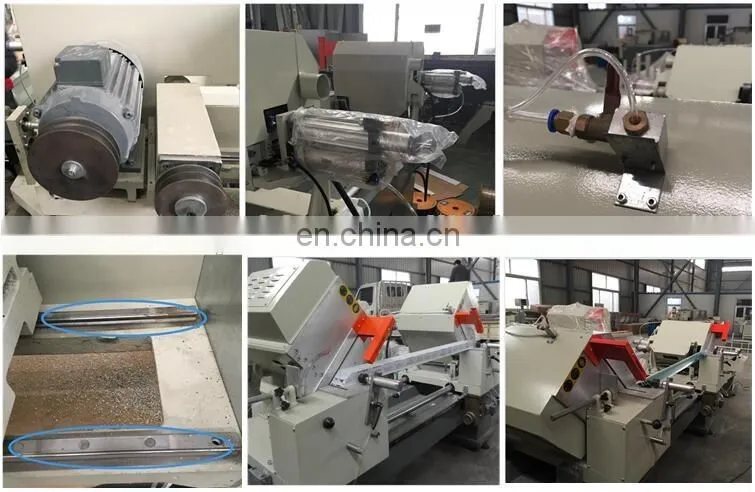

Double Mitre Saws for PVC Profile Windows and Doors Making Machine
1.The machine is used for cutting of aluminum &PVC profile.
2.Imported carbides blade is of accurate processing and high accuracy.
3.Saw blade rotates smoothly due to high accuracy main spindle.
4.Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.
5.It has feature of easy operation,reliable performance,advanced technique and convenient maintenance,etc.
6.Two saw head can be manually switching angle,realize the -45 degree,90degree,45degree angle cutting profile.
Model |
CLJZ2-450*3700 |
Power Supply |
380V 50HZ |
Input Power |
2*1.5KW 1*0.55KW |
Air Pressure |
0.5~0.8MPa |
Motor Rotary Speed |
2800r/min |
Saw Blade Specification |
Φ450*Φ30*4.4 Z=120 |
Cutting Angle |
45 ° 90° 135° |
Cutting angle allowance |
±5' |
Cutting speed |
0-3m/min |
Cutting profile surface planness |
≤0.1mm |
Cutting profile surface roughness |
Ra12.5μm |
Cutting Length |
max. 3700mm min.400mm max.3700 min.580mm |
Cutting Width*Height |
120*200mm |
Overall Dimension |
4500*1170*1400mm |
Weight |
About 1500Kg |
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
