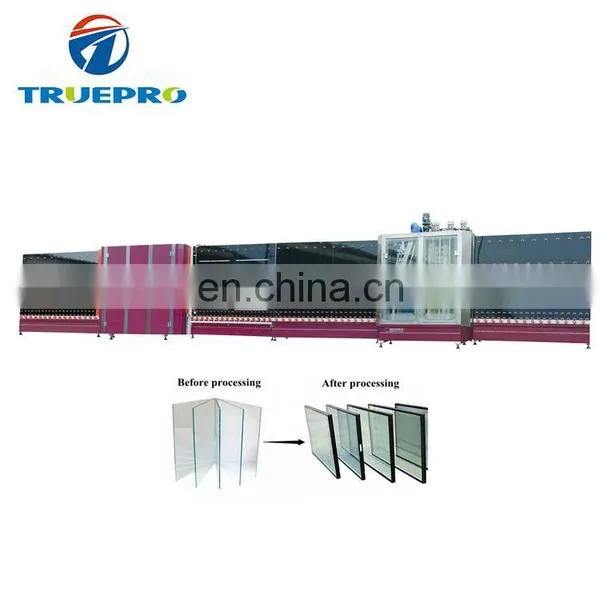

Vertical Double Glazing Glass Machinery / double glass machine production line
SpecificationsVertical Double Glazing Glass Machinery / double glass machine production line |
| Equipment configuration |
Parameter:
Equipment Model Parameter name |
LBP1800A-1 |
LBP1800C |
|
Power supply |
380V 50Hz |
380V 50Hz |
|
Total power |
23.4KW |
23.4KW |
|
Process glass size |
Max |
2500×1800mm |
2500×1800mm |
Min |
450×450mm |
450×450mm |
|
Original glass thickness |
3~12mm |
3~12mm |
|
Max D-value of different edge glass |
0mm |
50mm |
|
Working speed |
Washing speed |
6.5m/min |
6.5m/min |
Conveying speed after washing |
15~32m/min |
15~32m/min |
|
Outline dimension |
L×W×H (mm) |
16000×2000×2850 |
16000×2000×2850 |
Net weight |
5000kg |
5000kg |
|
Performace:
Vertical Double Glazing Glass Machinery / double glass machine production line
-Automatically distinguish the coating side of coated glass and low-E glass.
-Static state load glass when adding glass material to ensure safety in production.
-The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long useful life. Adopt waterproof bearing without oil lubricant.
-Can clean 3~25mm thickness glass, with wide using range.
-It can process same edge double insulating glass with high efficiency.
-Adopts the world famous brand low-voltage electrics, sensor and PLC, etc.
- PLC control system with touch screen interface, simple operation and high automatic.
-Treat the surface of plate guard with baking paint, powder coated. Appearance is beautiful and durable.
-The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.
Main accessory:
| PLC | Schneider | Touch screen | Schneider |
| Frequency controller 0.75Kw | Schneider | Circuit breaker DZX4-100 | Schneider |
| Circuit breaker 6.3-10A | Schneider | AC Contactor | Schneider |
| Relay | OMLON | Photo switch | Banner |
| Solenoid valve | Airtec | Cylinder | JPC |

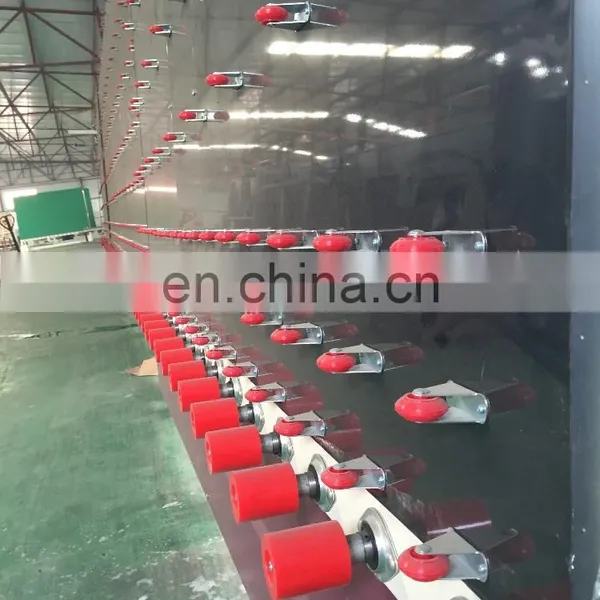

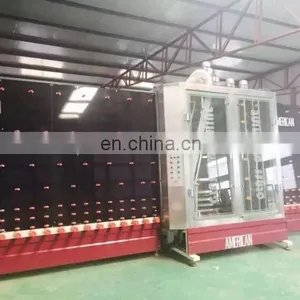

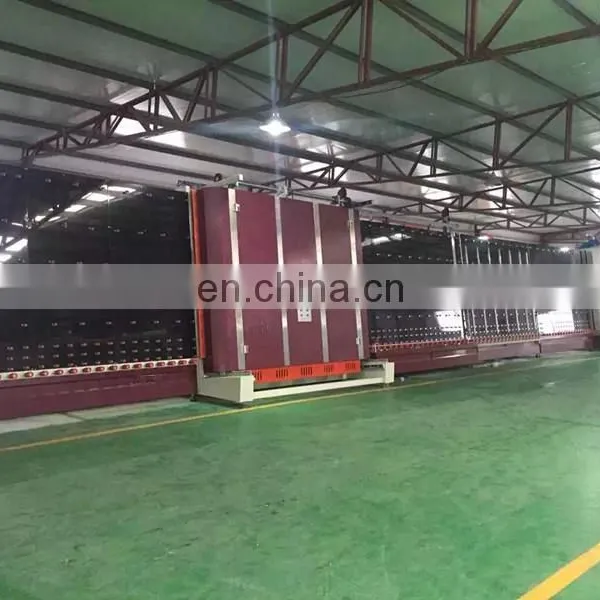

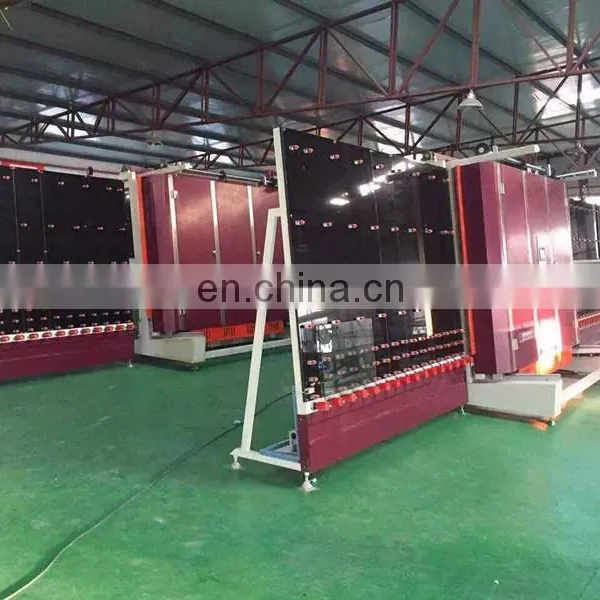

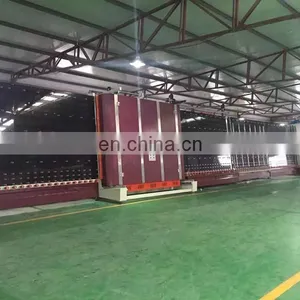

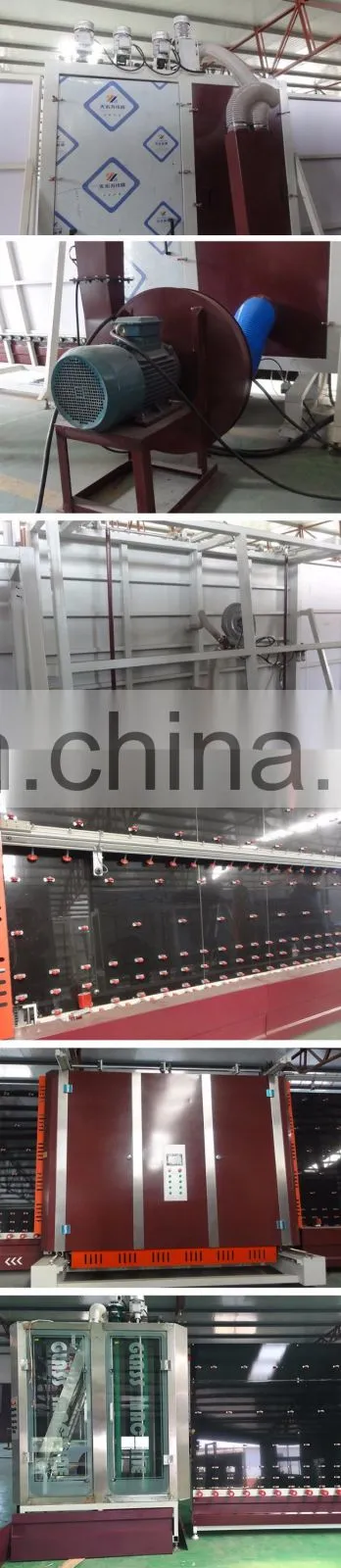

Some Details |

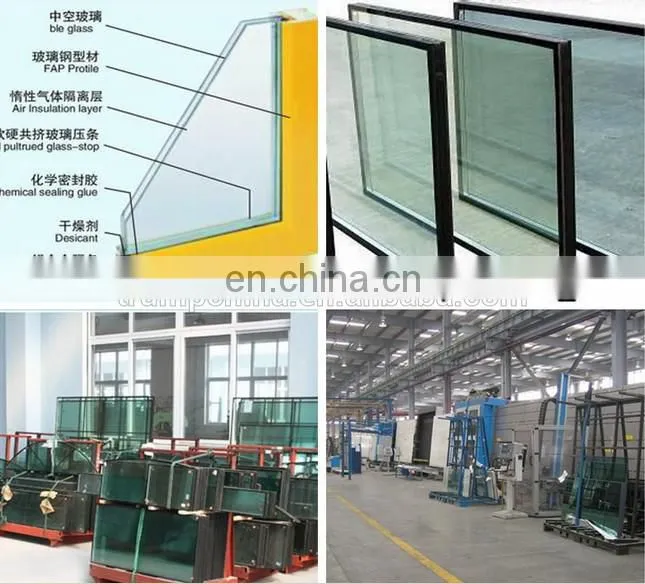

| Sample |
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
1.Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 16 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.

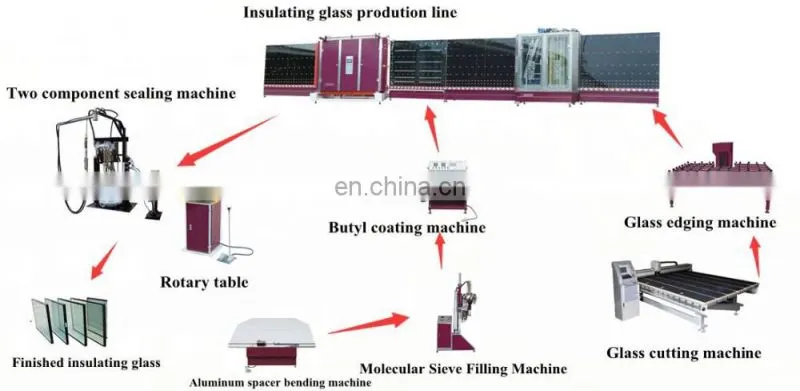

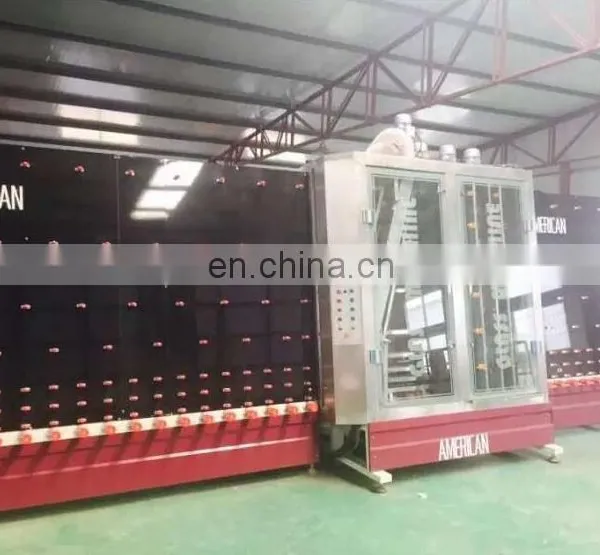

3.Whole double glass production line
