Product Details
Brand Name | Trump | Place of Origin | Shandong, China | |
Model Number | JY-1600 | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
Weight | 1500kg | Dimension(L*W*H) | 6000*1300*2800mm | |
Production Capacity | 0-6m/min | Condition | New | |
Voltage | 380V/ 50HZ | Power(W) | 14kw | |
Machine Type | Glass Washing and Drying Machine |
Product Description

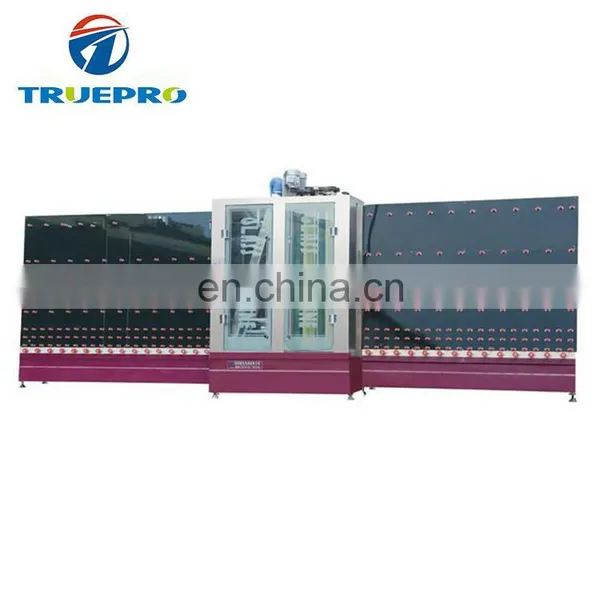

Double glazing glass making used glass washing machine
Equipment Description |
Main Feature:
Double glazing glass making used glass washing machine

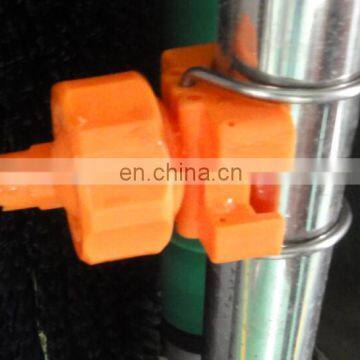

1. Washing section and water system adopt complete stainless steel or rot proof materials.

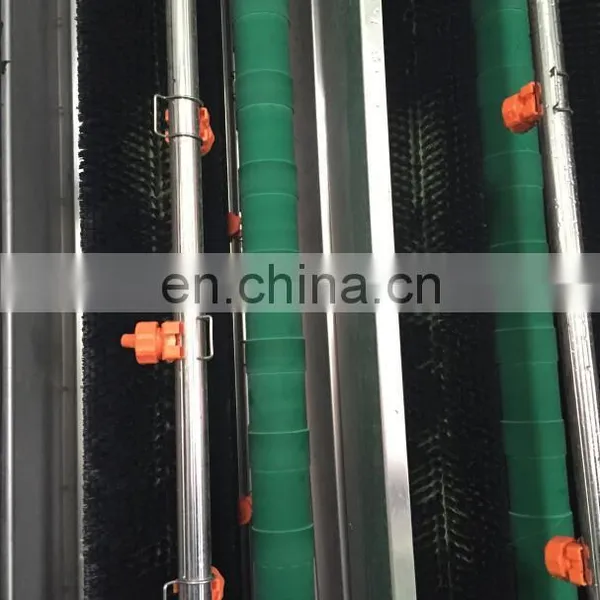

2. It has 2 pairs of glass washing soft brushes for coated glass and LOW-E glass.
3. Drying section adopts rubber roller to scrape of the water,and use the hot wind to dry the glass.
4. The transmit system of washing machine adopts unlimited speed adjustment to realize high efficiency of application.
Main Technical Parameter:
Model | 1600 |
Voltage Supply | 380V 50Hz |
Power | 14Kw |
Max.Glass Size | 2300*1600mm |
Min.Glass Size | 280*450mm |
Glass Thickness | 3-12mm |
Washing Speed | 0-6m/min |
Overall Dimension | 6000*1300*2800mm |
Weight | 1500kg |
Equipment components:
Name | Origin&Features |
Transmission motor | Dedong,Shanghai |
Photoelectricity switch | Autonics,Korea |

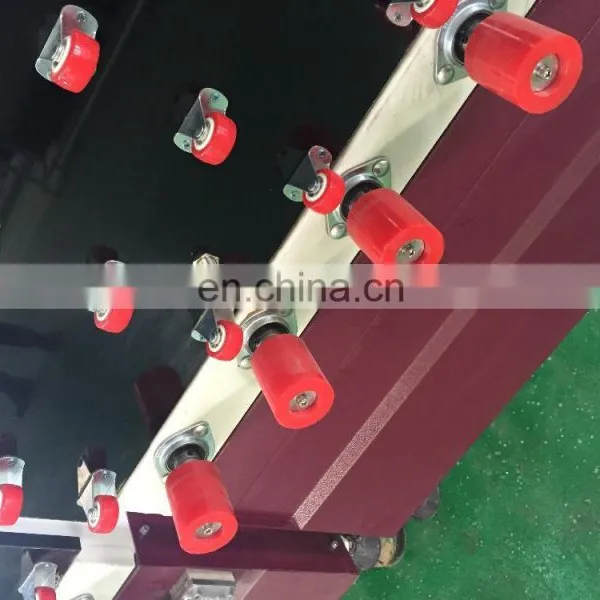

Transmission structure | An integral part of the rubber roller |
Washing Section | A completely stainless steel |
Airflow Power | 7.5Kw |
Air Knife | A completely stainless steel |
Brush | National Standard1010 |

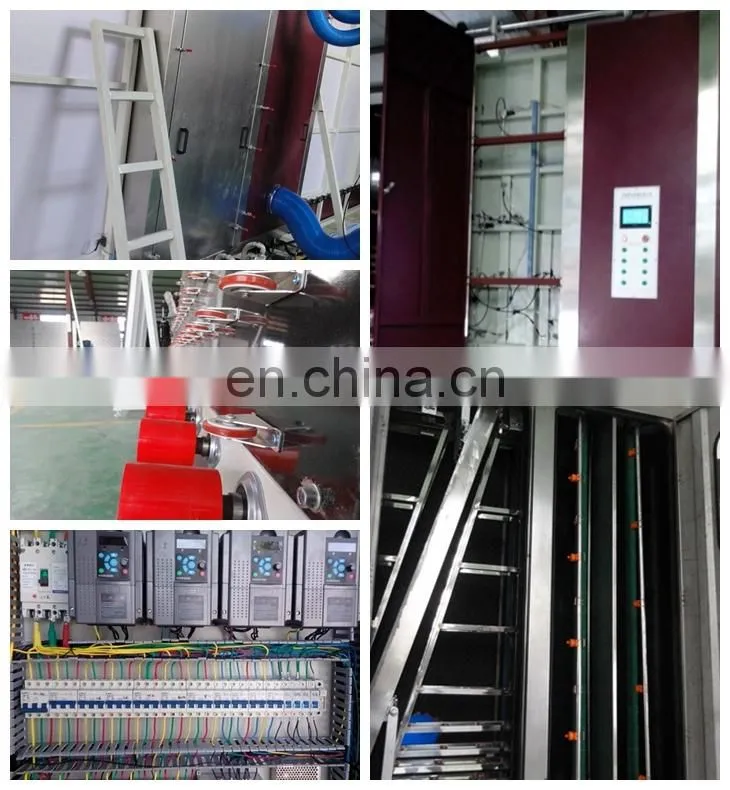

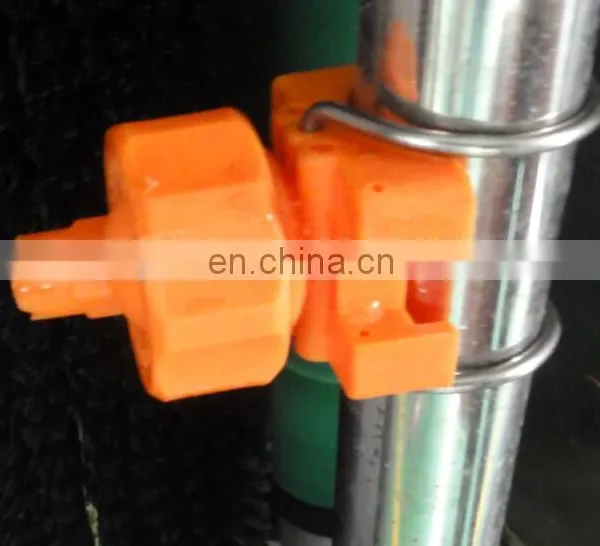

Some details:

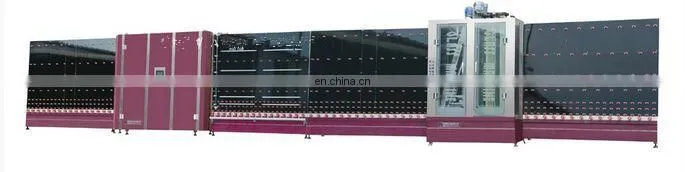

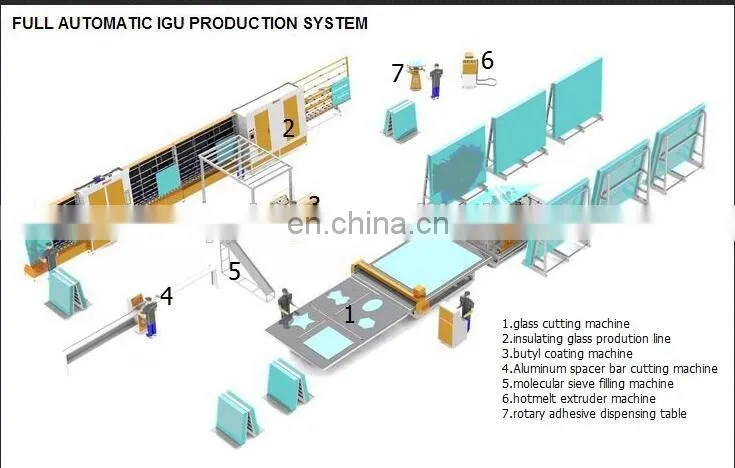

Insulating glass production line
We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. Insulating glass production line
