High efficiency CNC cutting machine aluminum window door making double head mitre saw
- 200 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Aluminium cutter machine / 45 degree aluminum cutting machine
- pvc doors and windows making machine Double head cutting saw machine
- Aluminum profile Window and Door machine Single saw head cutting machine
- Aluminum door and window corner combining making machine with competitive price
- XF235-100A Aluminum door window making machine small cnc Aluminum Copy milling Machine for sale
- New design high quality CLZ3F-300-100 window making aluminium copy router machine for aluminum profile
Product Details
Brand Name: | Truepro | Model Number: | LJZ2S-500*4200 |
Product Description

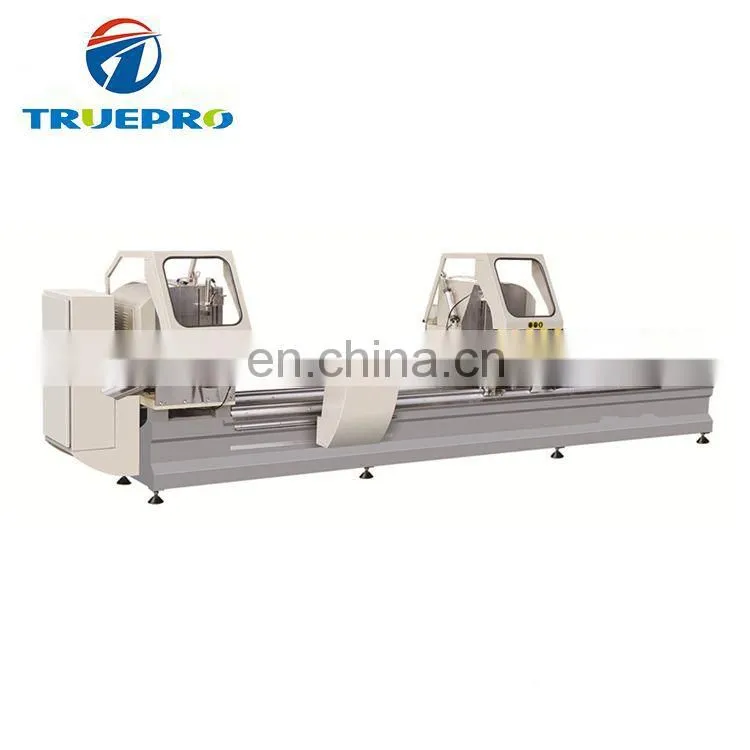

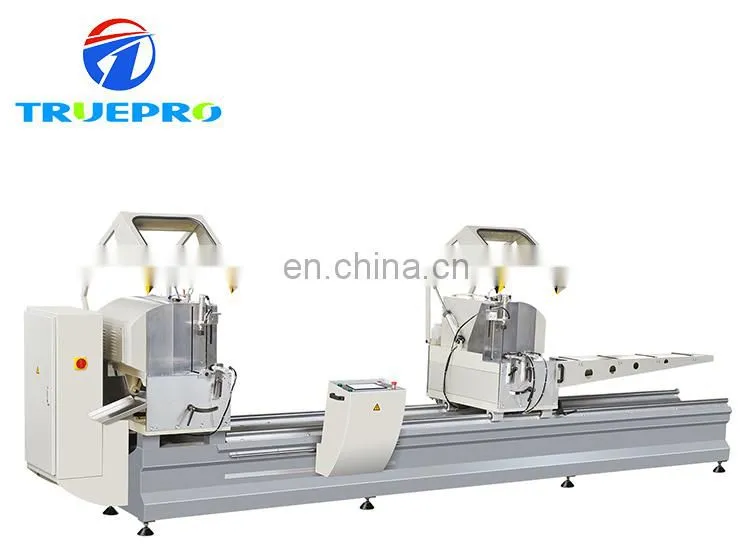

High efficiency CNC cutting machine aluminum window door making double head mitre saw

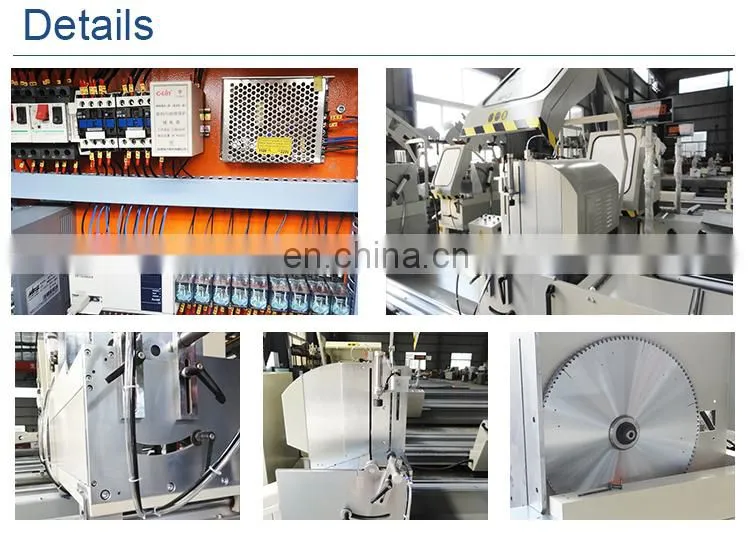

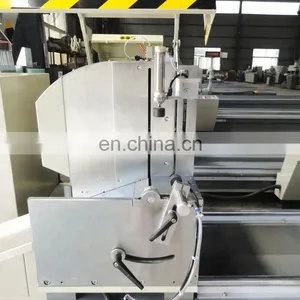

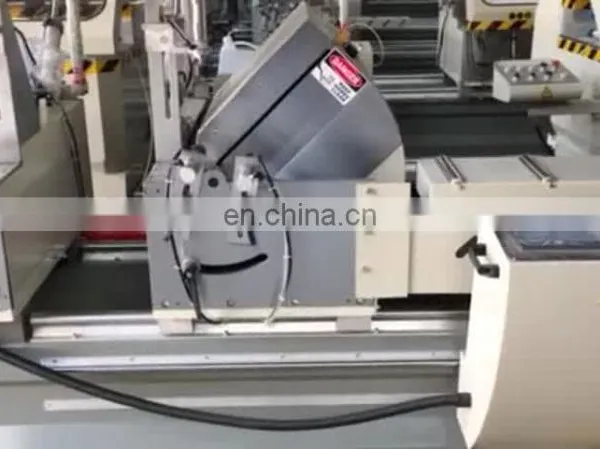

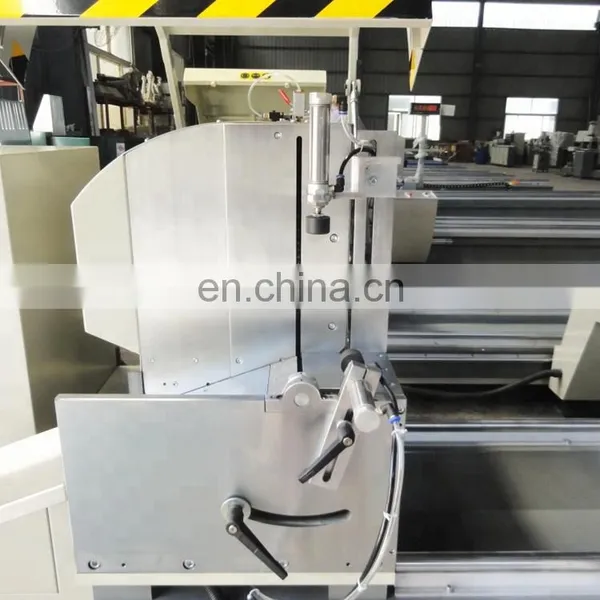

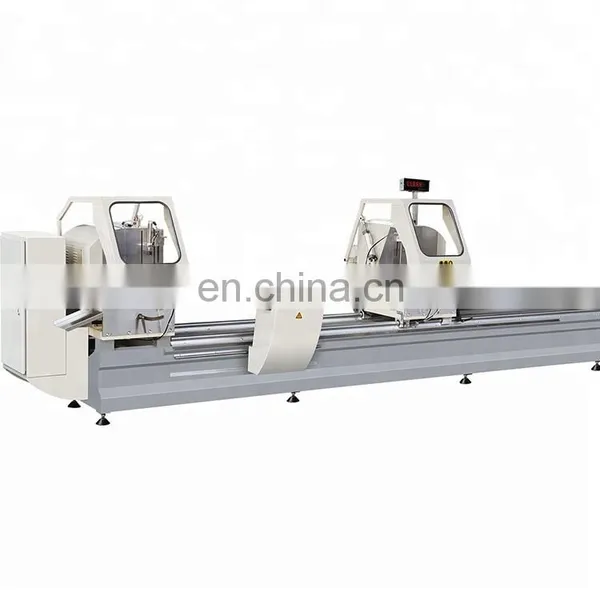

Double head mitre saw
1. For cutting Aluminum profile.

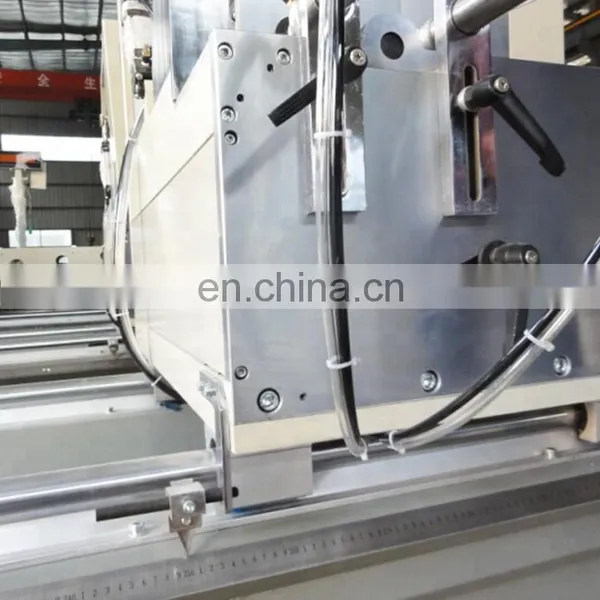

2. The feeding system adopts imported linear guide pair, with high accuracy and stability.
3. Auto 45°and 90°cutting change
4. Imported linear guiding pair ensured steady processing accuracy.
5. Saw blade rotates smoothly due to high accuracy spindle.
6. Hydraulic feeding systems ensure precise and stable feeding.
7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.

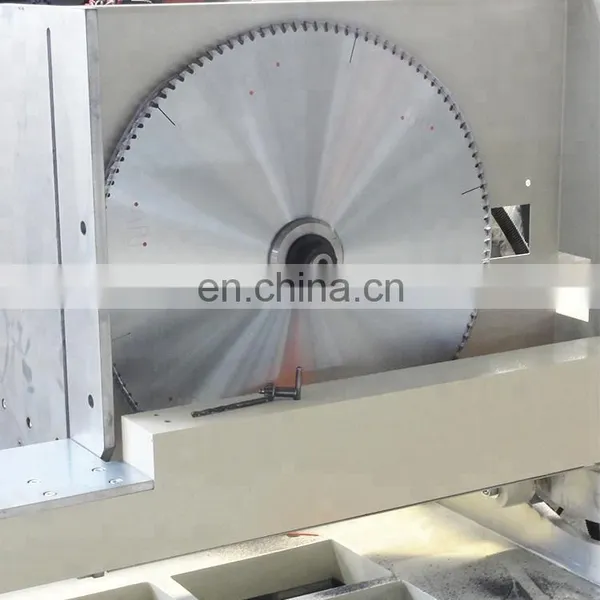

8. Carbide saw blade is of accurate processing and high efficiency.
9. Two heads can work together or single, when together work, one time can cut off the required length and angle
Power supply | 3N~50Hz 380/220V or As Customer Specification |

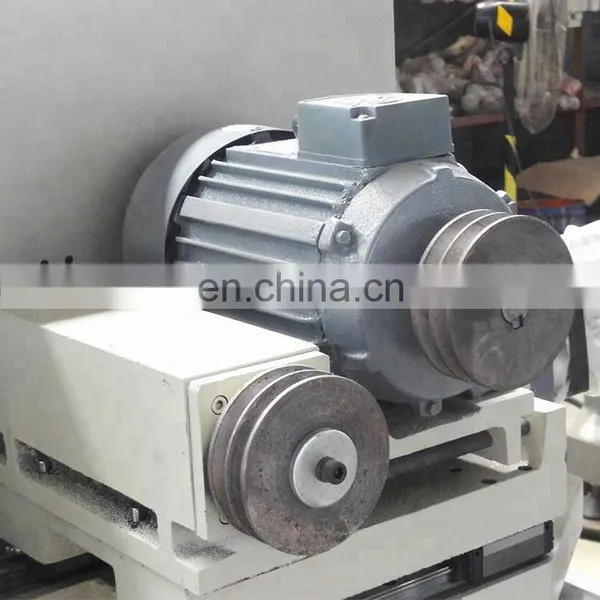

Cutting motor power | 5.9KW |
Cutting motor rotary speed | 2800r/min |
Operation air pressure | 0.5~0.8MPa |
Air consumption | 60L/min |
Blade specification | ø500×ø30×4.4×Z120 |
Cutting speed | stepless speed regulation0~3m/min |
Max. cutting length | 4200 mm |
Min. cutting length | 400 mm |
Cutting width | max 135mm |
Cutting height | 900 : max 300mm 450: max 200mm |
Cutting angle | 90°,45° |
Repeat locating length tolerance | ±0.2mm |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | ±5′ |
Cutting profile surface roughness | Ra12.5µm |
Contour dimension | 5700 mm×1650mm×1500mm |
Weight | 2100g |
Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
Our service
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
FAQ
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
Double head cutting saw High duty double headcutting saw
