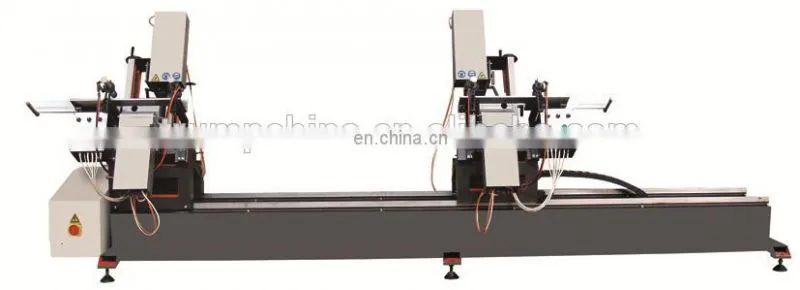

Double-head Water Slot Milling Machine/PVC Profile CNC Cutting Milling Machine

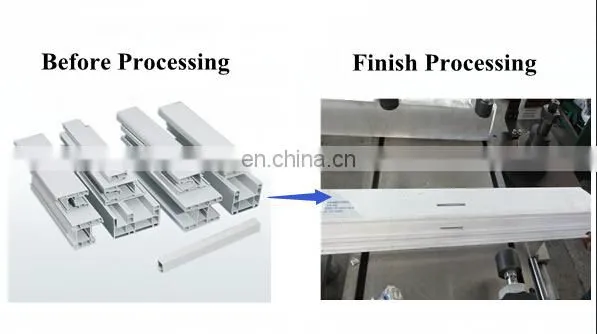

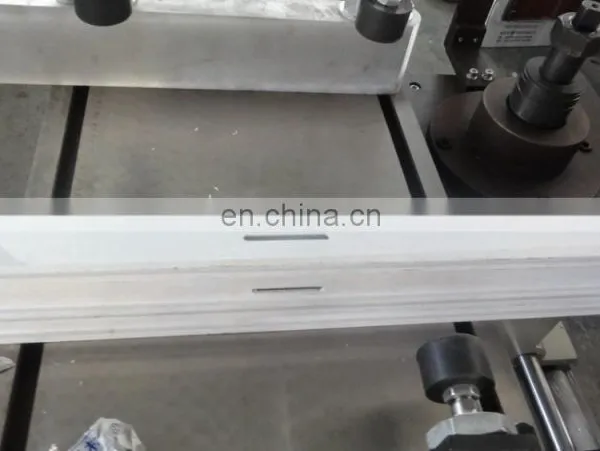

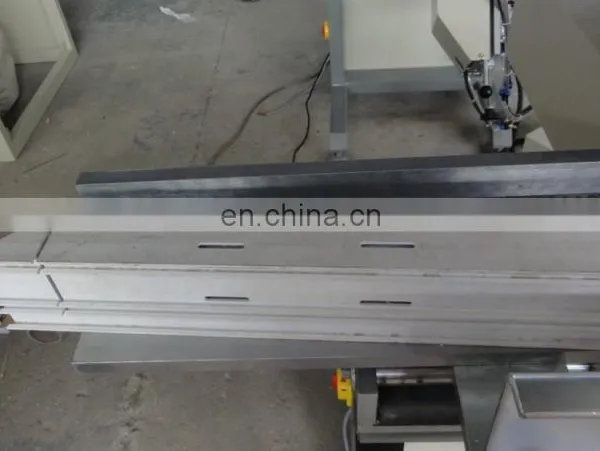

Some Details Show |
| Eqipment Advantages |
1.Milling all kinds of water slots and air pressure balance grooves.
2.Two set of three-axis milling heads layout along the machine.
3.Clamping one time to finish water slot processing.
4.High efficiency,suitable for mass production.
5.Special feeding system,do not need special maintenance,high milling quality.
6.Convenient adjustment for the cutter location to meet different kinds of profiles.
7.Water slot milling length adjustable within 60mm,wide adjustability.
8.Adopt linear bearing motion to ensure the processing predision.
| Technical Parameter |
Brand Name |
Trump |
Model |
SCXZ2 |
Input power |
2.28Kw |
Power supply |
380V/50Hz |
Air pressure |
0.5~0.8MPa |
Air consumption |
50L/min |
Motor rotary speed |
25000r/min |
Milling cutter diameter |
Φ4,Φ5 |
Slot depth |
30mm |
Slot length |
0~60mm |
Overall dimension |
3800*1200*1800mm |
Weight |
About 900Kg |
| Main Accessory |
PLC |
SIEMENS, OMRON,Taiwan Delta |
Solenoid valve |
Germany FESTO |
Electrical Button and Switcher |
Schneider |
Temperature Controller |
OMRON |
AC Contactor and Circuit Breaker |
Schneider |
Motor |
DEDONG Zhejiang |
AC Contactor and Circuit Breaker |
Schneider |
| Sample |
Machines will be packed with steel pallet and standard export wooden case,
to make sure customer will receive the machines they ordered Intact.
| After sale service |
24 hours technical support by phone, email or skype (email or skype) . 12 Months warranty period
Free traningand friendly English verson manual and operation video CD disk.
