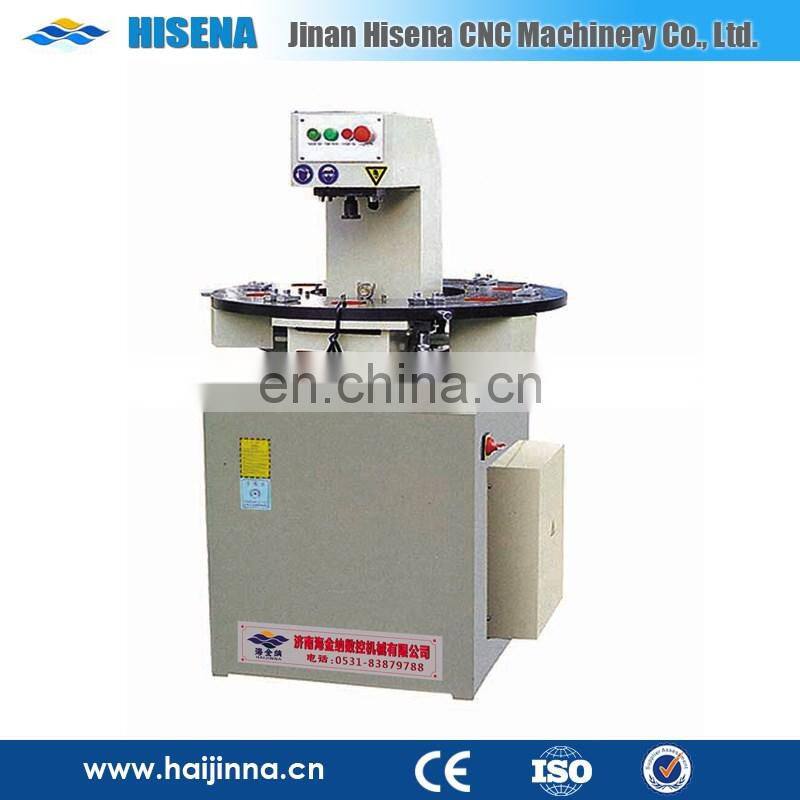

Aluminum window punching machine/Win-door profile punching machine
Feature of Aluminum window punching machine
1.For punching Aluminum window profile
2.Six sets of dies can be mounted one machine. Rotatory working table for different die selection
3.Easy changing punching die.
Parameter | |
Power supply |
380v 50Hz or customer specification |
Motor power |
2.2kw |
Motor rotational speed |
1420r/min |
Rated oil pump pressure |
16MPa |
Capability of oil box |
20L |
Press nominal pressure |
50KN |
Travel times |
30/min |
Closing height |
185mm |
Punching travel |
30mm |
Contour dimension |
900×900×1420mm (L×W×H ) |
Processing deviation from Straightness |
±0.1 mm |
Cutting profile surface roughness |
Ra12.5um |
Die size |
250×200(mm) |
Die thickness |
185mm |
Weight |
400kg |
Each product will be carefully packed with plastic film package,to make sure it will be arrived safety.
If choose wooden package,After inspection the goods are packed in plastic film package and then carefully packed in wooden carton.
Jinan Hisena CNC Machinery Co., Ltd.has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 1 years (12 months), the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
