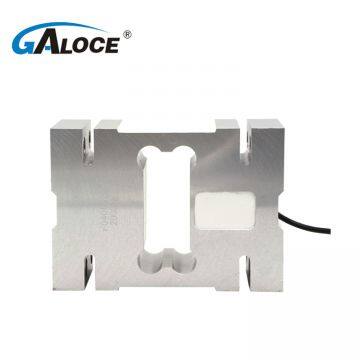

Help CenterGPB142 Aluminum Alloy Single Point Load Cell 300kg 500kg 750kg
Related Products
-
GPB100B Electronic Counting Scale Load Cell 10kgUS$ 10 - 12MOQ: 10 Pieces -
GPB200 Aluminum Parallel Beam Load Cell 350kgUS$ 4 - 9.5MOQ: 10 Pieces
-
GPB100 C3 Platform Scale Wide Bar Load Cell 100kgUS$ 5.5 - 7.5MOQ: 10 Pieces
-
GPB100 High Accuracy C3 Tabletop Type Load CellUS$ 5.5 - 7.5MOQ: 10 Pieces
-
GPB100 GALOCE Hot Sale Beehive Scale Weight Sensor 100kgUS$ 5.5 - 7.5MOQ: 10 Pieces
Features
Range: 50kg-3000kg
Material: aluminum alloy
Protection class: IP65
Application: electronic counting scales, platform scales and other
Small size electronic weighing devices.
Specification
Range |
50~3000kg |
Rated sensitive |
2.0±0.2 mV/V |
Accuracy |
C2 |
Combined error |
±0.03 %FS |
Creep |
±0.03%FS/30min |
Zero balance |
±1.0%FS |
Input resistance |
405±6 Ω |
Output resistance |
350±3 Ω |
Installation resistance |
≥5000MΩ(50Vdc) |
Compensated temp. range |
-10~+40°C |
Operating temp. range |
-30~+60°C |
Temp. effect on zero |
0.02%FS/10°C |
Temp. effect on span |
0.02%FS/10°C |
Excitation(recommended) |
9~12Vdc |
Recommended platform size |
600mm x 600mm |
Safe overload |
120%FS |
Ultimate overload |
150%FS |
Cable specification |
φ5mm,cable length:2m |

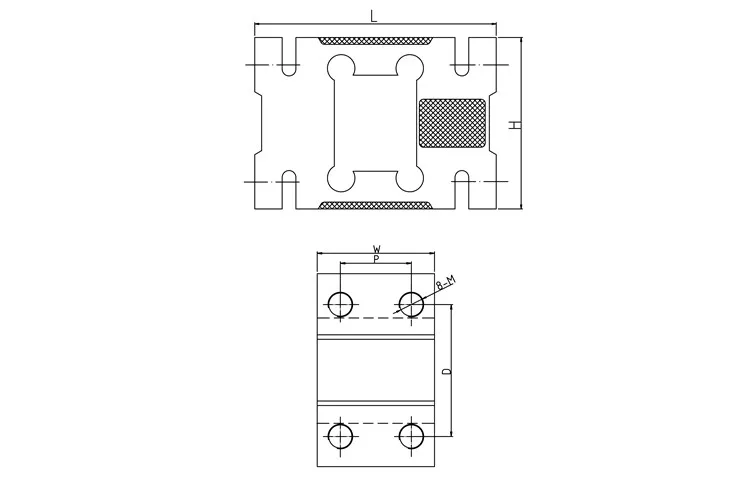

Dimension
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
Shipping
Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
