Home > Products > Shear Beam Load Cell > GSB200A Forklift Scale Single Ended Shear Beam Load Cell 500kg

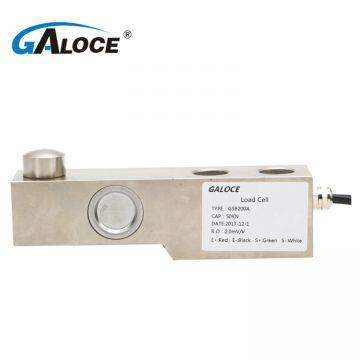

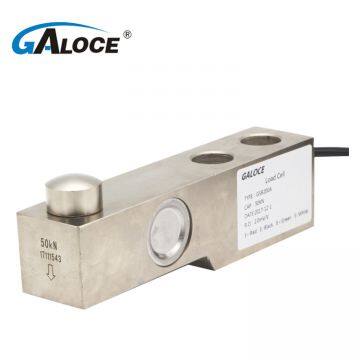

GSB200A Forklift Scale Single Ended Shear Beam Load Cell 500kg
- 1000 Piece / Pieces per Month
- Xi'an or any port of China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
Product Details
Brand Name: | GALOCE | Place of Origin: | China | Model Number: | GSB200A |
Usage: | Pressure Sensor | Theory: | Resistance Sensor | Output: | Analog Sensor |
Product Description
Features:
Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.
Specifications:
Specification: | |
Range : 500kg~20000kg | |
Accuracy : C2 & C3 | Temp. effect on span (%F.S/10℃): ±0.017& ±0.011 |
Comprehensive error (%F.S) : ±0.03 & ±0.02 | Temp. effect on zero (%F.S/10℃): ±0.023 & ±0.015 |
Rated output (mv/v) : 3.0±0.003 | Compensated temp. range (℃ ) : -10~+40 |
Creep (%F.S/30min) : ±0.024 & ±0.016 | Use temp. range (℃ ) : -20~+55 |
Zero balance (%F.S) : ±1.0 | Excitation voltage (V) : 9~12(DC) |
Input resistance (Ω) : 350±5 | Safe overload (%F.S) : 150 |
Output resistance (Ω) : 350±3 | Ultimate overload (%F.S) : 200 |
Insulation resistance (MΩ): ≥5000 (100VDC) | Defend grade : IP66 |
Dimension:
Rated load (kg) | L | L1 | L2 | L3 | L4 | D | D1 | D2 | H | H1 | H2 | B |
500-3000 | 203 | 95 | 22 | 98 | 64 | 13 | 16 | 32 | 43 | 37 | 30 | 37 |
5000 | 235 | 110 | 22 | 124 | 66 | 21 | 22 | 38 | 52 | 48 | 30 | 48 |
10000 | 279 | 133 | 32 | 140 | 82 | 28 | 32 | 48 | 67 | 60 | 20 | 60 |
20000 | 318 | 153 | 38 | 159 | 89 | 34 | 38 | 54 | 82 | 70 | 24 | 70 |
Process flowchart
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
