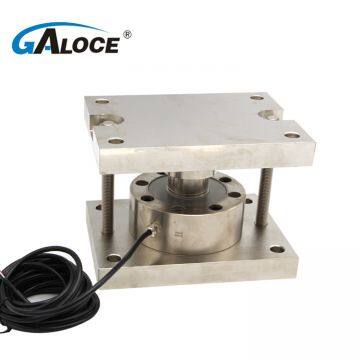

GWM400 Silo Weighing Load cell Mounting Kits
Features:
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Low height
4. Simple in structure, convenient in installation
5. Assembling GSS406 spoke type load cell sensor
Specifications:
Specification
| |
Range (T): 0.5-100 | |
Comprehensive error (%F.S): ±0.05 | Insulation resistance (MΩ): ≥5000 |
Rated output (mV/ V): 2.0 | Temp. effect on span (%F.S/10℃): ±0.05 |
Creep (%F.S/30min): ±0.05 | Temp. effect on zero (%F.S/10℃): ±0.05 |
Zero balance (%F.S): ±1.0 | Operation temp. range (℃): -20~+65 |
Input resistance (Ω): 380±10 or 750±15 | Excitation voltage (V): 10(DC) |
Output resistance (Ω): 350±3 or 700±5 | Safe overload (%F.S): 150 |

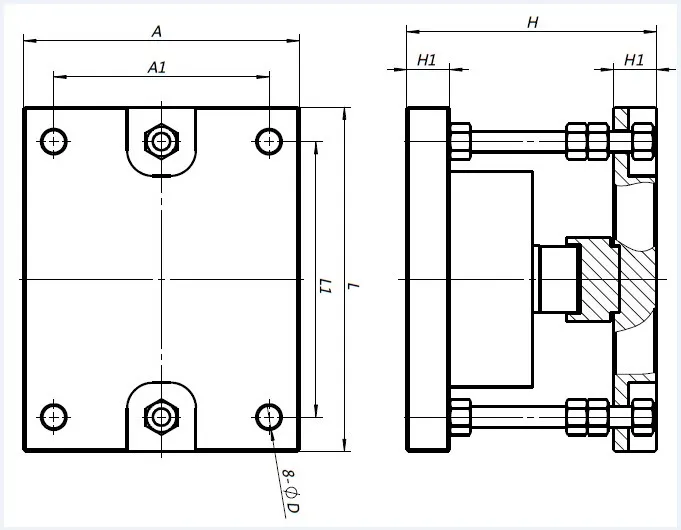

Dimension:
Rated load | Size(mm) | ||||||
L | L1 | A | A1 | H | H1 | φD | |
0.5~7t | 160 | 135 | 115 | 90 | 100 | 20 | 11 |
10~25t | 200 | 160 | 160 | 125 | 145 | 25 | 13 |
30~50t | 240 | 200 | 180 | 135 | 175 | 30 | 17 |
60~100t | 300 | 260 | 240 | 200 | 240 | 35 | 17 |

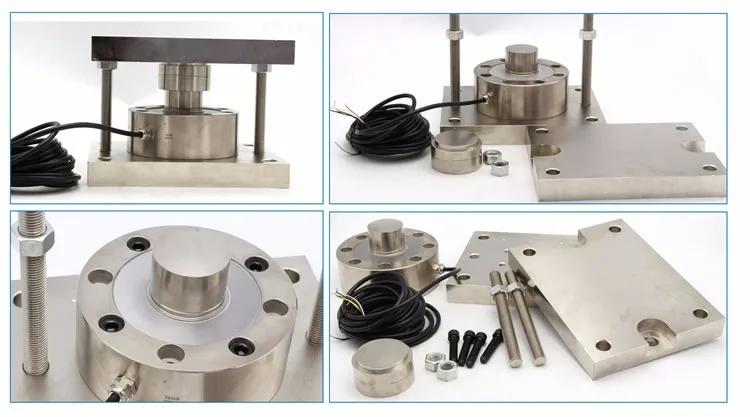

Details:

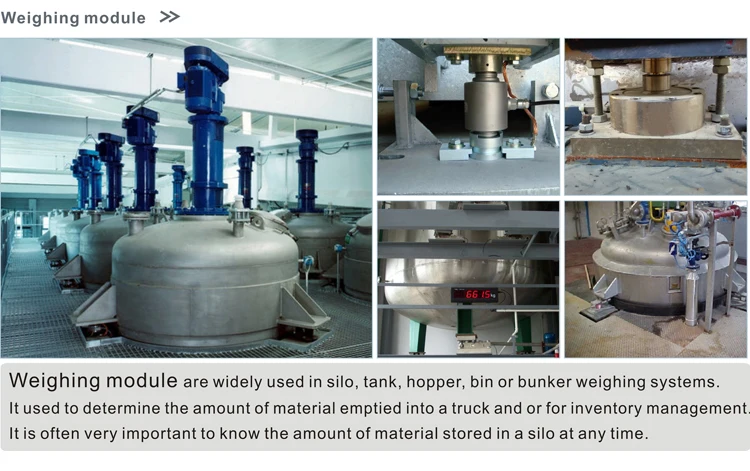

Application:
Q:What are the applications of weighing module?
A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.
Q:What is the raw material?
A: Alloy steel
Q: What is the load range?
A: 1-470T
Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%
Q: How to install?
A: Install them under the tank, then connect all the load cells with junction box and connect junction box with controller indicator or display indicator.
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
Shipping
Products are shipped from china. We will sent out within 15 working days after the payment. We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
