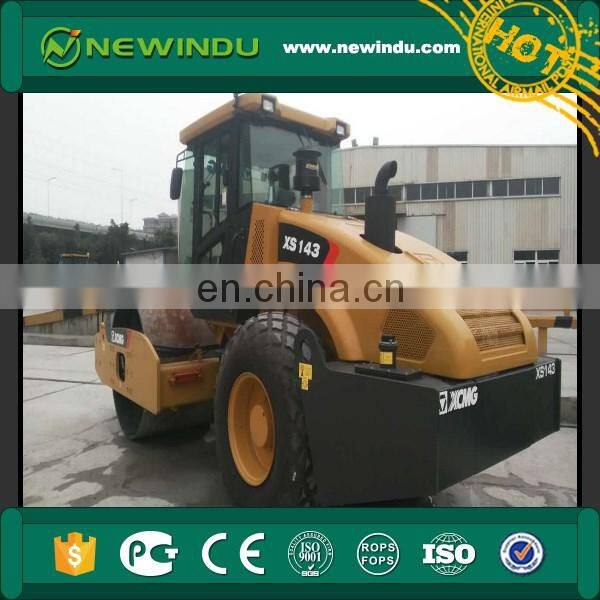

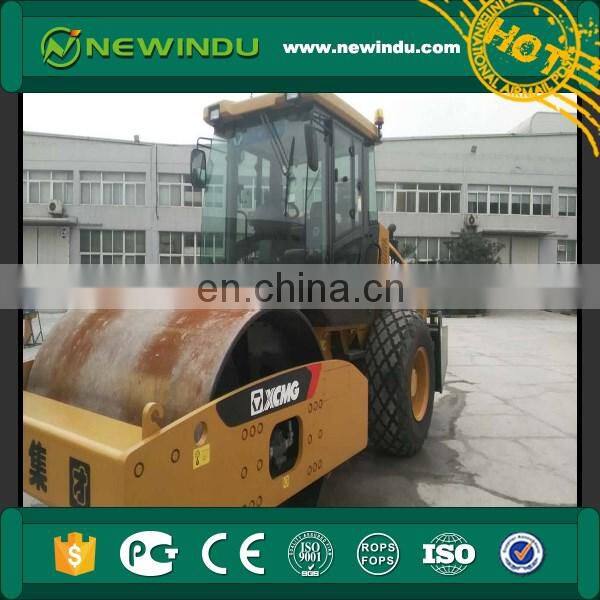

2019 14ton XS143J Single Drum Road Roller for Sale
- 300 Unit / Units per Month
- Shanghai/Qingdao
- T/T Credit Card
- hydraulic 20 ton tyre road roller XP203 sale in Algeria
- vibratory compactor tyre roller XP203 vibratory road roller for sale
- brand new tyre roller small 20 ton manual road roller XP203
- CHANGLIN 18 ton road machinery single drum road roller 8188-3
- 18 ton changlin roller 8188-3 vibration hydraulic road roller
- China roller XS143J compactor vibratory roller 14 ton manual road roller
Product Details
Brand Name: | NEWINDU | Type: | Single Drum Roller | Certification: | ISO |
Weight: | 14000kg | Dimension(L*W*H): | 6200mm*2340mm*3200mm | ||
Condition: | New | Power(W): | 110KW | Grade Ability: | 55% |
Travel Speed: | 0-10km/h |
Product Description
2019 14ton XS143J Single Drum Road Roller for Sale
Aring Zhou
Email: aring at
Wechat/Whatsapp/Mobile:+86 15855426352
Skype: zyy1520724641 at
Performance feature
•The spacious and bright cab features wide view and comfort.
Simple operation
•The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
•Adopt the gearbox with synchronizer, which is easy to operate.
•The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
•The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
•Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system
•Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
•The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
•Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
Type | Unit | XS143 |
Operating weight | kg | 14000 |
Load on front drum | kg | 8200 |
Load on rear wheels | kg | 5800 |
Drum width | mm | 2130 |
Static linear load | N/cm | 385 |
Vibration frequency(Low/High) | Hz | 28/35 |
Nominal amplitude(High/Low) | mm | 1.86/0.88 |
Excitation force(High/Low) | KN | 305/225 |
Travel speed | km/h | 0~12 |
Steering angle | ° | ±33 |
Swing angle | ° | ±10 |
Theoretical gradeability | % | 55 |
Min. external turning radius | mm | 6415 |
Engine model |
| B5.9 |
Engine power | kw | 110 |
Rated engine speed | r/min | 2200 |
Engine oil consumption | g/kW.h | 232 |
Hydraulic oil tank capacity | L | 240 |
Fuel tank capacity | L | 240 |
