Road Paver 4m Finisher RP403 Mini Sensor Asphalt Paver

FOB Price

US$ 34,000 - 68,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Chinese Famous brand	Place of Origin	Jiangsu, China
Certification	ISO CE
Warranty	1 Year	Weight	12ton
Dimension(LWH)	553518003580mm	Production Capacity	300t/h
Condition	New	Power(W)	75kw
Max. Paving Thickness	200mm

Product Description

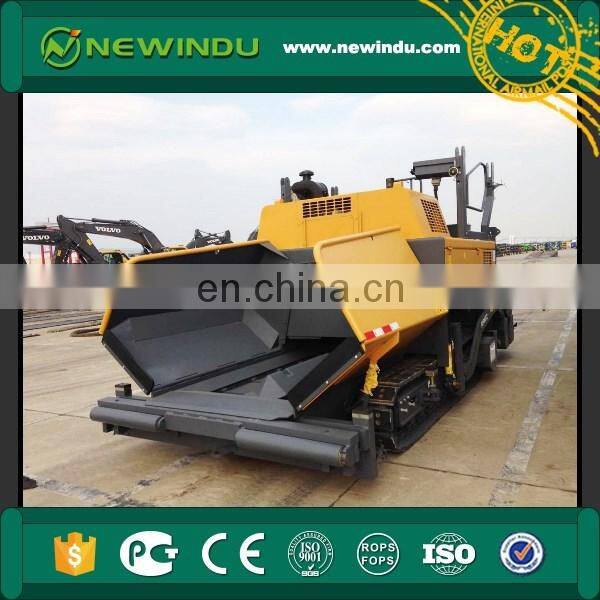

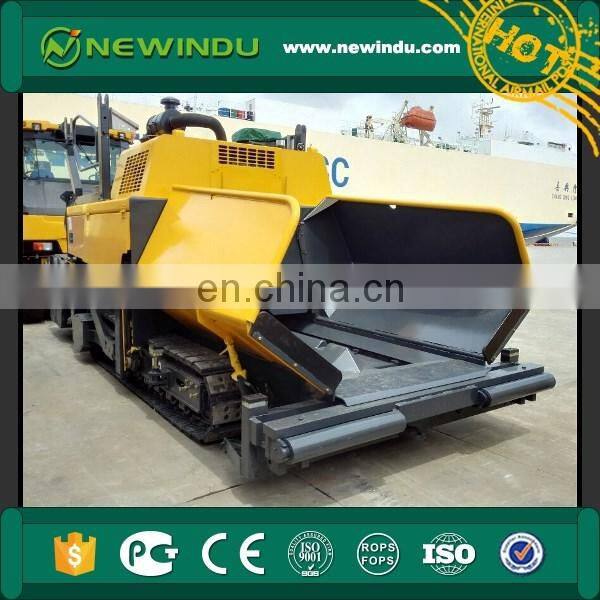

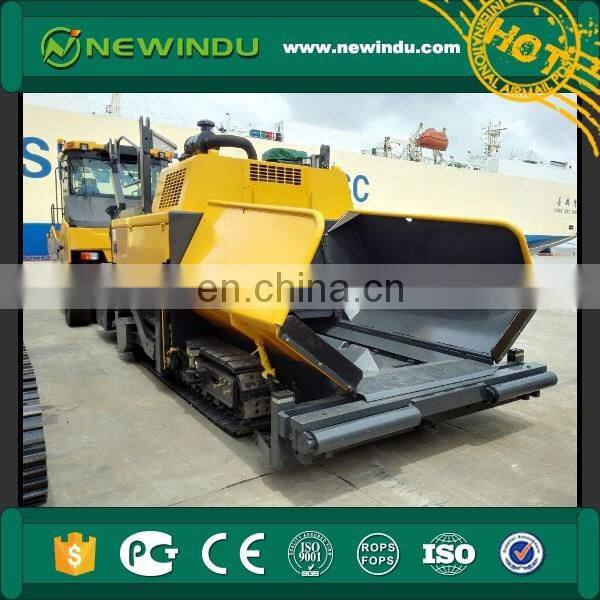

road paver 4m finisher RP403 mini sensor asphalt paver

Product Description

Miniaturization of the machine, 1.8 meters ultra-small machine width, optional width limiting device, minimum paving width of 0.8 meters, suitable for paving maintenance of milling "grooves", using hydraulically independent drive, crawler walking The device is equipped with a water-cooled turbocharged diesel engine (75kW/2000rpm), a powerful three-phase alternator with generator management system, and the generator adopts independent drive technology. The hydraulic system adopts load-sensitive control technology on both sides. The hoppers can be individually folded and oscillating follow-up inference. The electronic control system design is a CAN bus technology platform, a network control system of the CPU control technology, and an automatic leveling device.

Specifications:

Item	Parameters	Unit
Dimension(LxWxH)	5535×1800×3580	mm
Weight	9500	kg
Driving speed	3.6	km/h
Rated power	75/2000	kw/rpm
Basic pave width	1.8-3.4	m
Max. pave width	4.2	m
Max. layer thickness	200	mm
Max. paving speed	30	m/min
Hopper capacity	12000	kg
Maximum laydown rate	300	t/h
