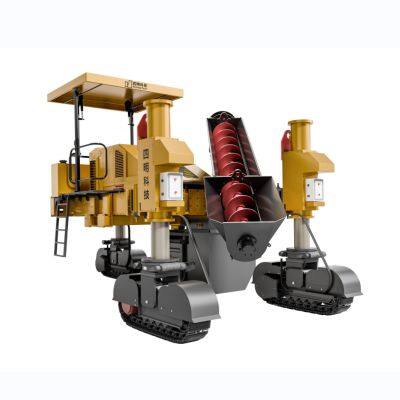

SMC-5500 Slip Form Concrete Machine 3m Paving Width 2 Front Swing Arms

Usage conditions:

1. Highway and municipal road construction fields: curbs, central isolation belt, anti-collision walls, slope protection, drainage ditches, cement pavements, etc.

2. Railway construction field: retaining walls, drainage ditches, etc.

3. Agriculture and water conservancy construction fields: anti-seepage canals, slope protection and pavement hardening, etc.

Features:

1. Wide operating vision,good operating experience

The components on the operating platfom are integrated into the humanized design concept,the layout logic is clear, the operator only needs a glance to determine the position of the functional devices,and the control response is rapid.

2. Efficient engine energy saving system

ECO energy saving mode automatically matches the optimal working state according to the working condition of the machine,saving energy and reducing exhaust emissions.

3. Highefficiency vibration compaction system

Using WYCO square shell vibrator,highcompacting efficiency,stable and reliable performance.The load with high stable output flow of Hedforth is equipped with compensation type manual speed regulating valve,and the frequency regulation of vibrator rodis smooth,stable and reliable.Standardequipped with 8 vibration oil road, according to the need to expand 2 vibration oil road,to meet the larger section of the structure of the paving requirements.

4. Flexible crawler post position

The crawler column is arranged in the first two and the second one. The two front crawler columns can be rotated with swing arms, or can be mechanically widened to achieve bias, and the rear crawler columns can be freely biased, improving the flexibility of the mold position.

5.Excellent performance steering modes

It has a variety of steering modes, such as forward steering, crab steering, cooperative steering and spot steering, which improves the maneuverability of the machine.

6.Track slewing device with large Angle

The track steering is driven by the large-angle rotary device, and the steering Angle is up to ±130°. The positioning before construction is more efficient and the transition is more agile.

7.Low speed and smooth walking system

Adopt high speed ratio reducer and high quality international brand hydraulic motor, driving force is strong, low speed paving walking smoothly, to meet the requirements of large section structure low speed paving.

8.High quality servo valve control column lifting

Choose international brand servo valve to drive the column lifting, lifting cylinder quick response, smooth action, excellent flatness control.

9.Convenient transportation concept

The unit is compact and the roof can be electrically folded for more economical truck transport.

Technical Parameters:

Construction case:
