Chinese Small Bulldozer SD13 for Sale

Name: Chinese Small Bulldozer SD13 for Sale
Brand: Shantui
Availability: InStock

FOB Price

US$ 22,876 - 22,876

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Shantui	Place of Origin	Shandong, China
Condition	New
Dimension(Long * Breadth * High)	449231852950mm	Machine Weight	13700kg
Moving Type	Crawler Bulldozer

Product Description

Chinese small bulldozer SD13 for Sale

Product Description

Shantui SD13 gets mid-range volume jobs done in record time. A smaller version of our best-selling SD16 line, the SD13 delivers all the durability and reliability of its larger cousin series. With a high-power, high-efficiency, turbocharged engine featuring a large-torque reserve coefficient, the 130 hp SD13 is ready for work.Its extended track ensures low ground pressure, high reliability and strong traction while the comfortable wide visibility hexahedron cab and integrated dashboard design help keep operator productivity at peak levels.

1. The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.

Technical Parameters

ITEM	UNIT	SD13
L×W×H (Ripper not included)	mm	449231852950
Operating weight (Ripper not included)	t	13.7
Rated power	kW/rpm	95.5/1900
Grade ability	°	30
Blade type	-	Straight tilt blade Angle blade
Blade width	mm	Straight tilt blade 31851090 Angle blade3475915
Dozing capacity	m3	Straight tilt blade 3.7 Angle blade3.4
Max drop below ground of blade	mm	590
Lift height of blade	mm	930
Ripper type	-	Three-shank ripper
Ripping depth of ripper	mm	467
Lifting height of ripper	mm	559
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	38
Width of track shoe	mm	460
Track gauge	mm	1880
Ground length and ground pressure	mm/MPA	2365-0.063
Pitch	mm	190
Forward speed	km/h	0-3.2
		0-5.9
		0-9.8
Reverse speed	km/h	0-3.9
Reverse speed	km/h	0-7.1

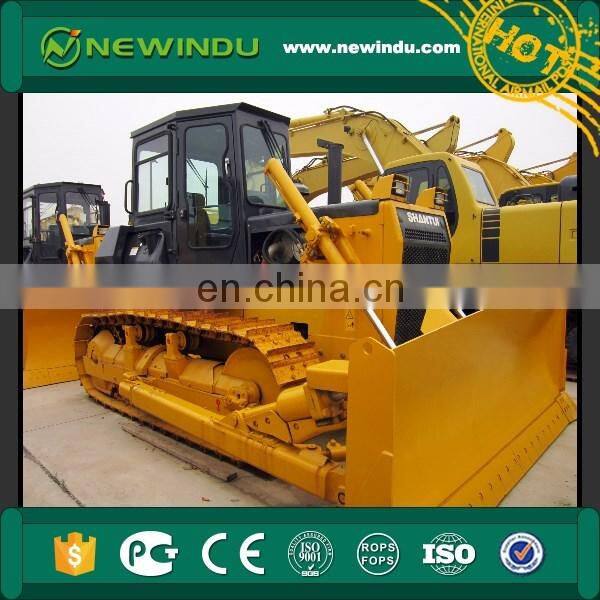

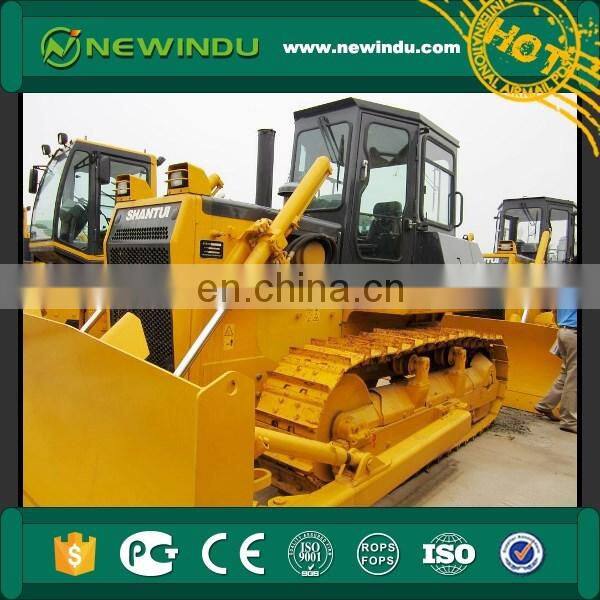

Photos for Reference
