Handheld ultrasonic tank level meter
Description Handheld ultrasonic tank level meter

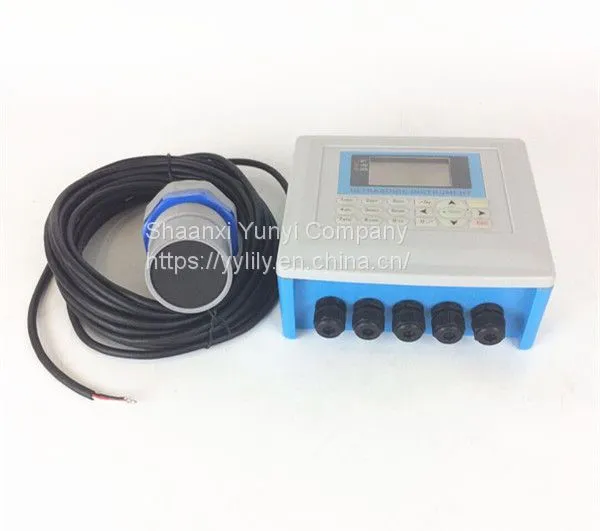

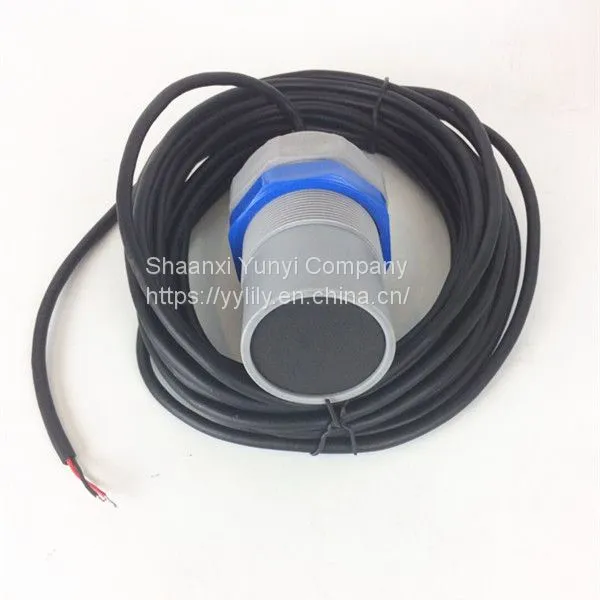

It consists of two elements, a host, which has display and an integral keypad for programming, and a transducer, which must be mounted directly above the surface to be measured. It can be widely applied to the environmental protection, water treatment, irrigation, chemical, and other industries.
Detailed Images Handheld ultrasonic tank level meter
Specification Handheld ultrasonic tank level meter
Display resolution: based on input signal
Calibration: factory calibration or on-site calibration
Display: LCD
Voltage output: DC12V or 24V
Signal output :RS485/RS232, 4~20mA,
Work voltage: AC160V~250V
Normal power consumption : 5W
Work temperature: 0~50℃
Humidity: ≤85RH
Pressure: normal
Features Handheld ultrasonic tank level meter
Low sensor power consumption, easy installation and orientation, application wildly ,standard 4-20mA output, use it separately as liquid level meter
Easy operation, widely used in thin plate right-angle weir, triangular weir, parshall flume and so on. When power off, it can save 10 years.
Base on user's demand, it can attach flash disk, micro printer and storage battery.
Applications Handheld ultrasonic tank level meter
Right-angle rectangular weir,
Triangular weir,
Width weir,
Parshall flume
