DN6000mm Flow Meter

Shaanxi Yunyi Company
DN6000mm Flow Meter thumbnail-1
DN6000mm Flow Meter thumbnail-2
DN6000mm Flow Meter photo-1

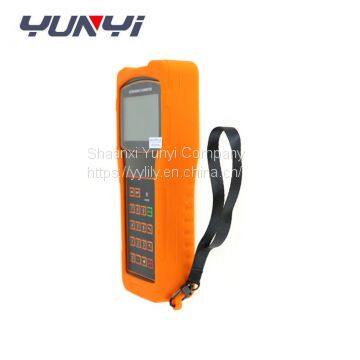

DN6000mm Flow Meter photo-2
US$ 391.3 - 451.3 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yunyi
Place of Origin:
China
Model Number:
TUF2000-H
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any ports of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yunyi
Place of Origin China
Model Number TUF2000-H

water flow meter


Description portable Handheld Ultrasonic water flow meter

TDS-100H Ultrasonic compressed air flow meter with CE approved with  the  capability of a full size flow meter.  It is carefully designed for portability and ease of use.

Features portable Handheld Ultrasonic water flow meter

  *   Better than 1% accuracy.

  *   0.2% of repeatability.

  *   Positive / negative / net flow totaliser

  *   4 line LCD display.

  *   Operate with clamp-on transducers.

  *   RS-232/OCT output

  *   Ni-MH Battery life for up to 12 hours continuous operation.

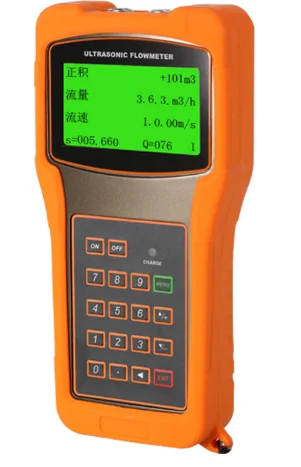

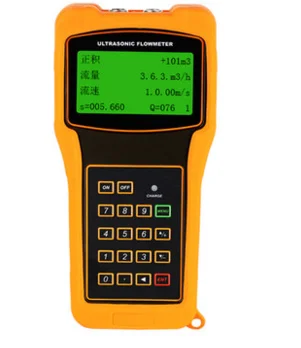

Detailed Images portable Handheld Ultrasonic water flow meter

Ultrasonic flow meterflow meterhandheld flow meterflowmeter

                                                                Click for more information!!!

Specification portable Handheld Ultrasonic water flow meter



Item
ultrasonic flowmeter
Linearity
0.50%
Repeatability
0.20%
Accuracy
±1% of reading at rates>0.2 mps
Response Time
0-999 seconds, user-configurable
Velocity
±32 m/s
Pipe Size
15mm-6000mm
Totalizer
7-digit totals for net, positive and negative flow respectively
Liquid Types
Virtually all liquids
Security
Setup values Modification Lockout. Access code needs unlocking
Display
4x8 Chinese characters or 4x16 English letters
Communication Interface
RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements
Transducer Cord Length
Standard 5m x 2, optional 10m x 2
Power Supply
3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger
Data Logger
Built-in data logger can store over 2000 lines of data
Manual Totalizer
7-digit press-key-to-go totalizer for calibration
Housing Material
ABS
Case Size
210x90x30mm
Main unit Weight
500g with batteries
