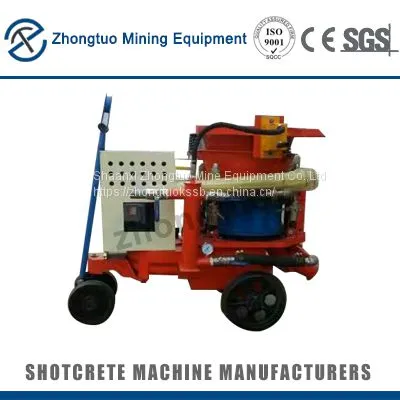

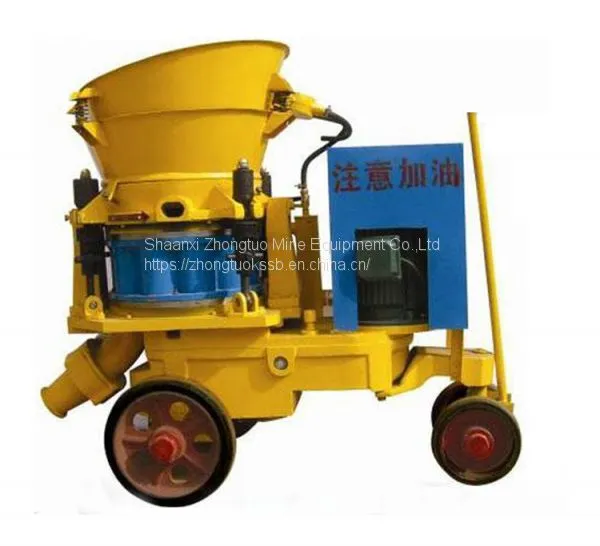

Pz-5 Dry-Mix Gunite Machine

Introduction of Pz-5 dry-mix gunite machine:

Pz-5 dry-mix gunite machine is mainly driven by motor, reducer, rotor assembly, sealing plate, rubber plate, compactor mechanism, hopper seat, mine wheel, vibration hopper, compression mechanism and air Systems and electronic control devices and other components. The motor shaft ends the drive gear shaft and, after decelerating by the gear unit, drives the rotor mounted on the output shaft to rotate. After the gears are decelerated by the gear unit, the rotor mounted on the output shaft is driven to rotate. The transmission gear is lubricated by the lubricating oil in the reducer box and the oil level is measured by the oil injection needle.

Features of Pz-5 dry-mix gunite machine :

1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life

Parameters of Pz-5 dry-mix gunite machine:
