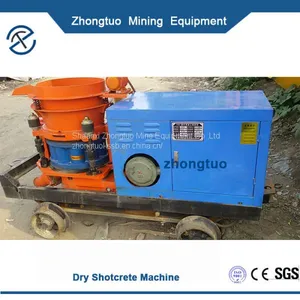

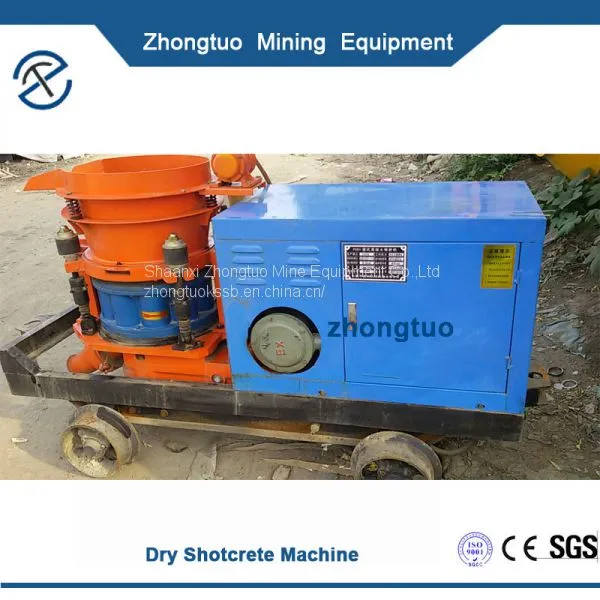

Description of Dry Shotcrete Machine:
Middle size dry&damp mix gunite machine;
Output: 5m3/hour;
Electric Power: 5.5kW (7.5HP)
Air consumption: 7~8m3/min
Applied in tunnels, mines, slope supporting, hydro-power engineering etc.
The PZ-5 middle size gunite machine can be used for dry mix and dry mix shotcrete. It is dependable, easy to maintain, robust, and is long lasting.
The basic version is electric motor, and optional version is air motor or diesel engine.

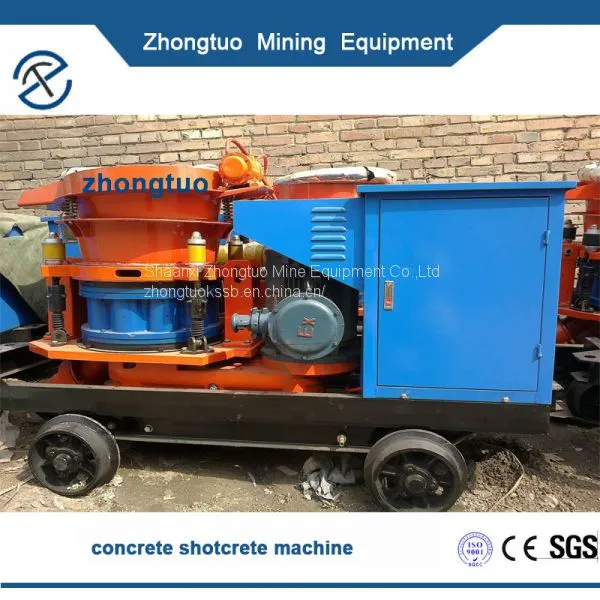

Features of concrete shotcrete machine:
non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

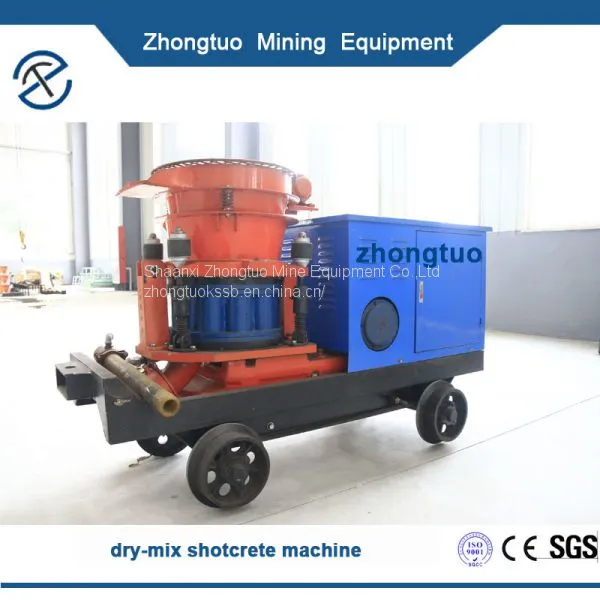

Parameter of dry-mix shotcrete machine:
Item |
PZ-3 |
PZ-5 |
PZ-7 |
|
Output |
3.5m3/h |
5m3/h |
7m3/h |
|
Max. convey dist |
Horizontal:200m Vertical:20m |
Horizontal:200m Vertical:20m |
Horizontal:200m Vertical:20m |
|
Water cement ratio |
≤0.4 |
≤0.4 |
≤0.4 |
|
Max. Aggregate. size |
20mm |
20mm |
20mm |
|
Hose inner size |
38mm |
51mm |
64mm |
|
|
Operating air pressure |
0.4~0.6MPa |
0.4~0.6MPa |
0.4~0.6MPa |
|
Air consumption |
3-4 m3/min |
7-8 m3/min |
8-10 m3/min |
|
Rotor diameter |
350mm(150) |
438mm |
480mm |
|
Motor power |
Y112M-6-3KW |
Y132-6-5.5(KW) |
Y132-6-7.5KW |
|
Voltages |
380v or as your requirement |
380v or as your requirement |
380v or as your requirement |
|
|
Overall dimension (mm) |
1040X550X940 |
1280x700x1280 |
1500X700X1280 |
|
Whole weight |
260kgs |
600kgs |
700kgs |

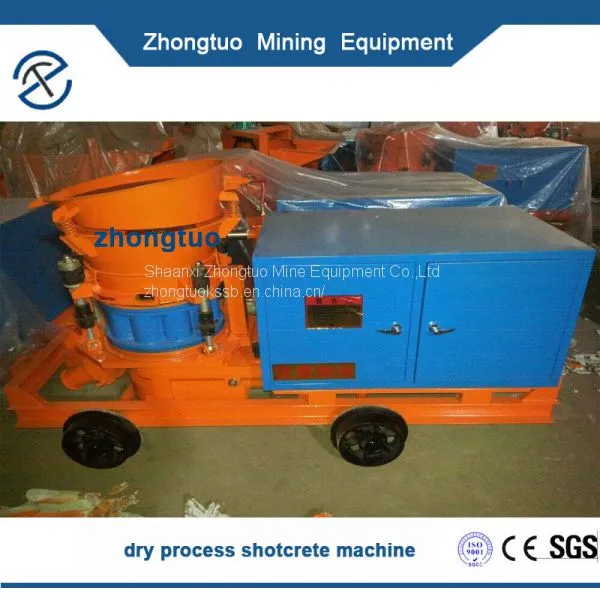

Application of dry process shotcrete machine:
Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns' inner liner.
