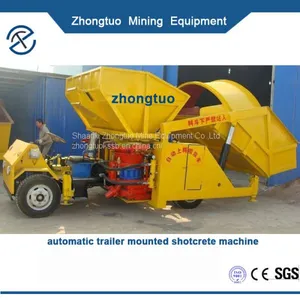

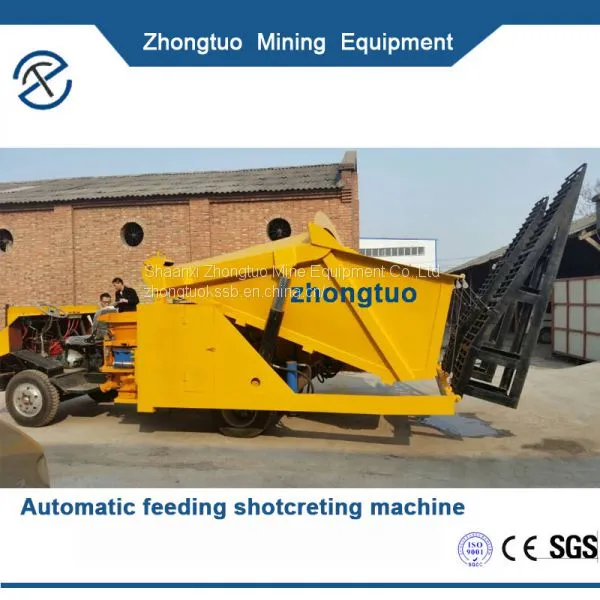

Description of Tunnel concrete shotcrete truck:
Automatic feeding shotcreting machine combines three kinds of technologies, such as concrete pump, air compressor system and accelerator system, which is especially difficult to implement in the concrete machinery. It is mainly used in the construction of railway tunnel, water conservancy and hydropower, subway, mine tunnel, military facilities, all kinds of underground construction and emergency rescue.
Features of concrete spraying equipment：
(1)Vehicle mounted, convenient to move, save a lot of manual operation
(2)For guniting support, it has the advantages of high efficiency, low energy consumption and saving manpower (2-3 people can operate)
(3) No material falling waste, can save 30% of the cost of raw materials, and 20% of the energy costs
(4) High machine intelligent integration, simple operation, wide operating range
Parameter of automatic trailer mounted shotcrete machine：
Brand |
ZHONGTUO |
Model |
ZTBDQ-2 |
Production capacity (m3/h) |
2*7 |
Air consumption (m3/min) |
2*(8-10) |
Conveying distance (H/V) |
100/30(m) |
Electric power of shotcrete machine (Kw) |
2*7.5 |
Oil pump motor power (Kw) |
11 |
Vibration motor power (Kw) |
2.2 |
Rated working pressure (Mpa) |
0.2-0.4 |
Engine |
490(Four cylinder) |
Engine power (Kw) |
65 |
The main bunker volume (m3) |
6 |
The accelerator storage tank volume (Kg) |
200 |
Overall dimensions (mm) |
6600*3000*2080 |
Machine weight (Kg) |
6000 |

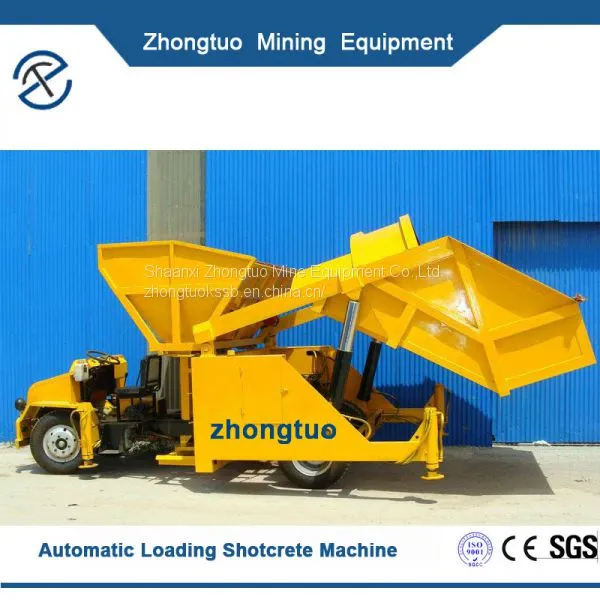

Application of Automatic Loading Shotcrete Machine:
It is mainly used in railways, highways, tunnels, water conservancy and hydropower, subway, mine, tunnel, military facilities, various construction sites and emergency projects.
