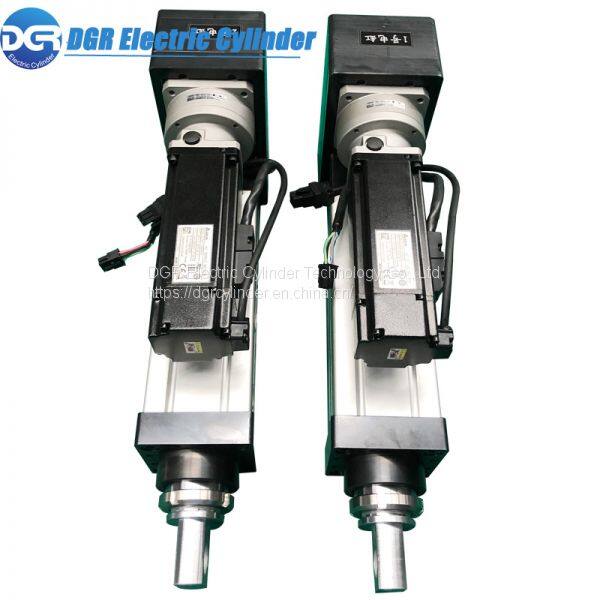

Stroke 2000mm High Speed 4 Piston Racing Linear Actuator For Automation Equipment with Encoder

DGR-HT-100 Stroke 2000mm Linear Actuator Model number indications:

DGR-HT-100 Stroke 2000mm Linear Actuator Technical Data

Note:

1. If you need to know the ball screw life, please contact customer service for detailed consultation;

2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.

3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

 DGR-HT-100 High Speed Linear Actuator with Encoder Motor Selection List

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;

3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

Features of DGRHT80 High Speed Linear Actuator with Encoder

High Accuracy

High precision, the processing of key parts is completed by CNC machining, and the machining accuracy is within 0.02mm.

High Reliability

Highly security

Long Life

Run over a distance of 100,000km

Wide Thrust Range

The theoretical push-pull force is more than twice the rated push-pull force, and the maximum thrust can reach 15000N.

Careful Material Selection

1. 1. Round carbon steel is used as the cylinder material, the thrust is very large, and the maximum rated load can reach 20 tons.

2. Select sensor components of internationally famous brands .

3. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)

4. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.

Refined Design and Processing

1. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

2. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.

    3. The anti-torsion mechanism is installed inside, no need to match the output shaft, the user can directly use

    4.Professional machining processing equipment minimizes the cost.

5.All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)

Duty Cycle

Ball screws are used for frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.

Complete Testing

Professional factory inspection: including appearance, stroke, load, noise decibel etc.

Excellent Service

1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)

2. DGR Electric cylinder can be custom engineered for customer’s particular application.

3.Customers can make custom requests

Wide Selection of Motors

1. Servo and inverter control are performed by servo motor, stepper motor, DC motor, and AC motor.

2. Motor comes with brake to ensure secure operation.

	Entertainment Six degrees of freedom motion platform platform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats.
VR Simulations Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
	Automobile industry Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
	Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Solar Tracking Systems The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc.
