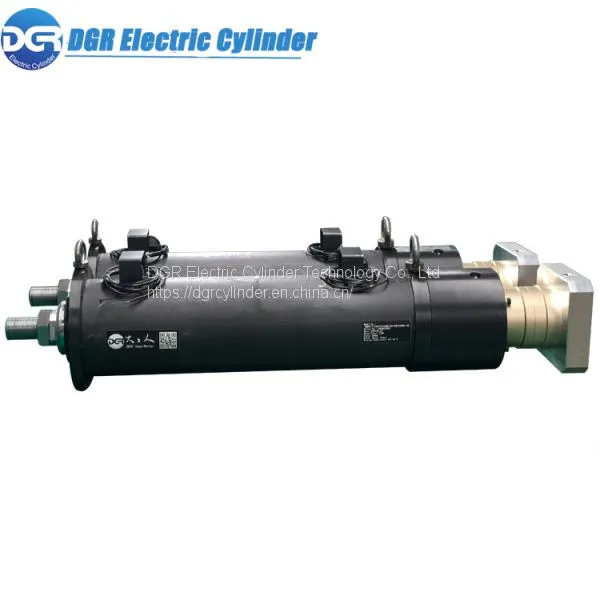

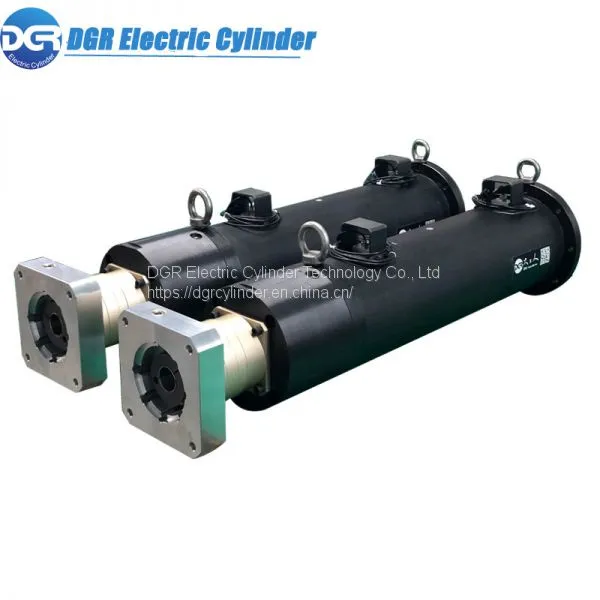

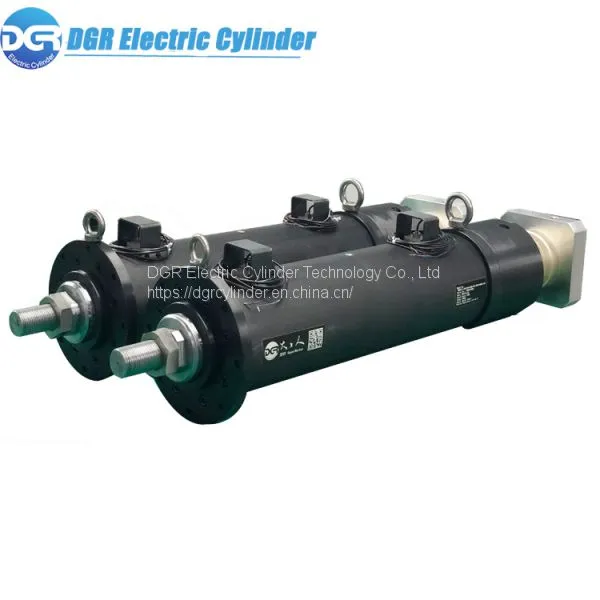

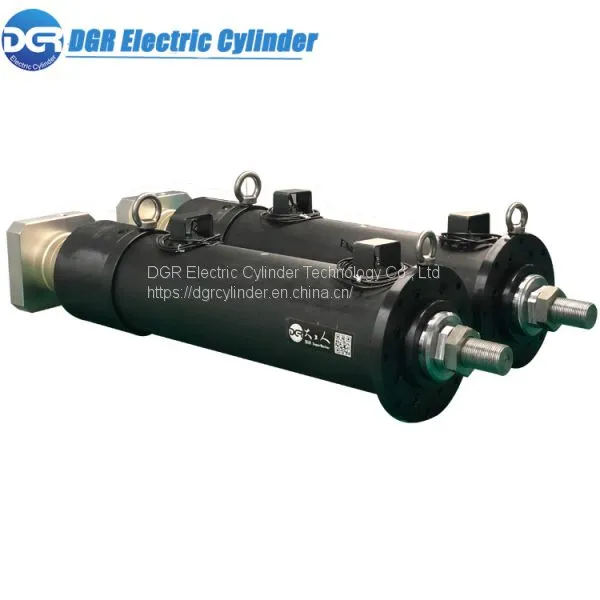

Help CenterServo Linear Actuator for Simulator 6DOF/9d Cinema Virtual Reality
Related Products
-
High Precision Heavy Duty Pneumatic Actuator Replacement High Quality Electric Linear ActuatorUS$ 340 - 360MOQ: 1 Piece -
Large-tonnage Electric Push-pull Cylinder That Can Replace Hydraulic And Pneumatic Cylinder For Servo PressUS$ 420 - 450MOQ: 1 Piece
-
Large Thrust 100% Duty Cycle Roller Ball Screw Industrial Electric Piston Rod CylinderUS$ 400 - 420MOQ: 1 Piece
-
Waterproof And Dustproof Heavy Duty Linear Actuator For Stewart Platform HexapodrUS$ 340 - 360MOQ: 1 Piece
-
High Strength High-stability Great Planetary Ball Screw Electric Piston Cylinder For Stamping EquipmentUS$ 320 - 340MOQ: 1 Piece
DGR-HT-140 Servo Linear Actuator Model designations:
DGRHT |
140 |
T5 |
L1200 |
S250 |
Heavy duty electric cylinder |
Bore/size |
Lead T5=5mm T10=10mm |
Stroke L1200=1200mm |
Rated speed S250=250mm/s |
F80 |
I/U |
P11000 |
i1 |
|
|
Rated load F80=80KN |
Motor mounting Inline mounting ：I Parallel mounting：U |
Power P11000=11000W |
Gear Ratio i1=1:1 i1.5=1.5:1 …… i100=100:1 |
DGR-HT-140 Servo Linear Actuator Model Code:
Product Series |
DGRHT140 |
Screw lead / pitch (mm) |
20 |
Max. Power of Motor (W) |
11000 |
Max. Rated Thrust (N) |
80000 |
Max. Speed (mm/s) |
800 |
Rated Driving Torque (N.m) |
290 |
Max. Ball Screw Diameter (mm) |
63 |
Rated Dynamic Load of Ball Screw (kgf) |
11444 |
Max. stroke (mm) |
1200 |
Axial Backlash (mm) |
0.02-0.04 |
Lead Error Every 300mm (mm) |
0.023 |
Repeatability Accuracy (mm) |
0.02 |
Note:
1. If you need to know the ball screw life, please contact customer service for detailed consultation;
2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).
DGR-HT-140 Linear Actuator for simulator Motor Selection List
Product Series |
DGRHT40 |
Flange Size of Optional Servo Motor Series (mm) |
180/ 220 |
Flange Size of Optional Stepper Motor Series (mm) |
—— |
Flange Size of Optional Gear Box Series (mm) |
160/ 190/ 242 |
Note:
1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;
2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;
3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;
Features of DGRHT140 Linear Actuator for simulator
High Accuracy
High precision, the processing of key parts is completed by CNC machining, and the machining accuracy is within 0.02mm.
High Reliability
Highly reliable, safety factor>2 ( PS: safety factor for key parts > 4), which is in compliance with metallurgical standard.
Long Life
Run over a distance of 100,000km
Careful Material Selection
1. Use round carbon steel as the cylinder material
2. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
3. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure
4. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
Refined Design and Processing
1. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
2. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
3. The anti-torsion mechanism is installed inside, no need to match the output shaft, the user can directly use
4. All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)
Duty Cycle
Ball screws are used for frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.
Complete Testing
Professional factory inspection:3appearance, speed, accuracy
Excellent Service
1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2. DGR Electric cylinder can be custom engineered for customer’s particular application.
3.5 years’ experience in electric cylinder production.
Wide Selection of Motors
A variety of AC servo motors or stepper motors for option
